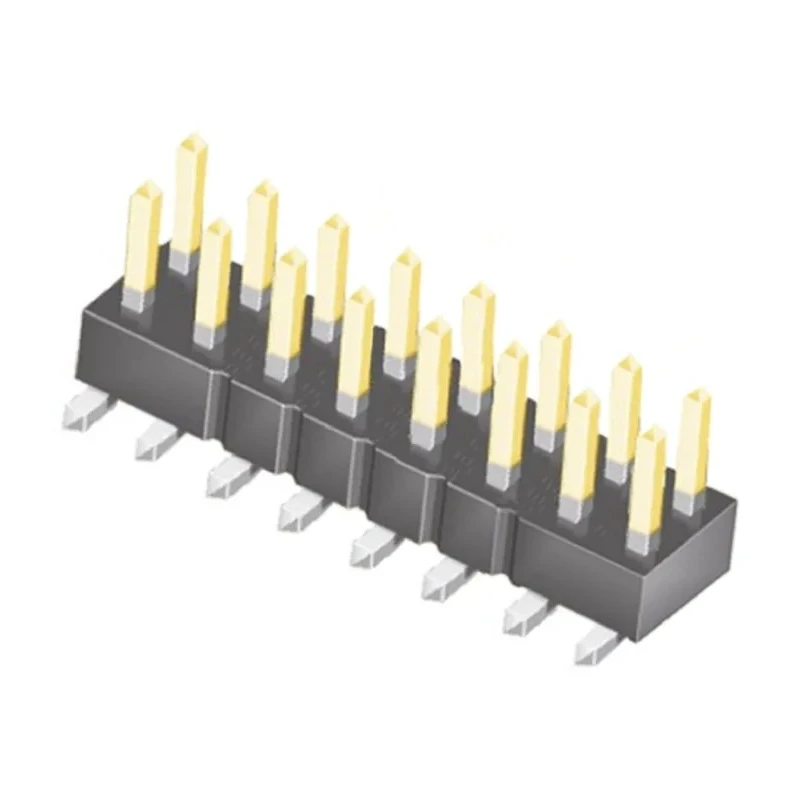

Samtec Pin Header 16 Contact 2 Row 2.54 mm Pitch Straight Surface Mount Liquid Crystal Polymer Housing Gold TSM-108-01-L-DV

Samtec TSM-108-01-L-DV is a precision-engineered PCB pin header designed for demanding industrial, electronic, and commercial applications requiring reliable board-to-board and wire-to-board connections. Featuring 16 individual contact points arranged in two rows with a standard 2.54 mm pitch, this surface-mounted header is housed in a durable black liquid crystal polymer material, ensuring excellent mechanical strength and thermal endurance.

The contacts are manufactured from phosphor bronze and plated with 0.25 microns of gold on the posts to resist corrosion and maintain low contact resistance, crucial for high-quality signal transmission and power delivery. With a maximum current rating of 7 A and a voltage rating of 475 V, this header is capable of operating in harsh environments with temperature extremes ranging from -55°C to 125°C.

This SMT header is unshrouded and features male contacts oriented straight for versatile board layouts. The 5.84 mm mating pin length provides a secure connection with compatible sockets. It is designed according to high standards to ensure durability and robustness in industrial, manufacturing, laboratory, and electronics assembly use cases.

Liquid crystal polymer housing offers mechanical and thermal stability. Gold-plated phosphor bronze contacts provide reliable electrical connections. Standard 2.54 mm pitch and 2-row layout suitable for compact PCB designs.

Supports board-to-board and wire-to-board configurations. Wide operating temperature range from -55°C to 125°C. Current rating of 7 A and voltage rating of 475 V ensure high performance. Surface mount technology for modern assembly processes.

Unshrouded straight male contacts ease mating and integration.

This pin header series includes multiple configurations with varying post heights and row orientations. The TSM-108-01-L-DV features a 5.84 mm post height for a balanced profile and compatibility with various socket types. Ideal for use in electronics manufacturing, automotive electronics, consumer devices, and telecommunications equipment, this component meets the reliability and performance demands of advanced PCB interconnect systems.
