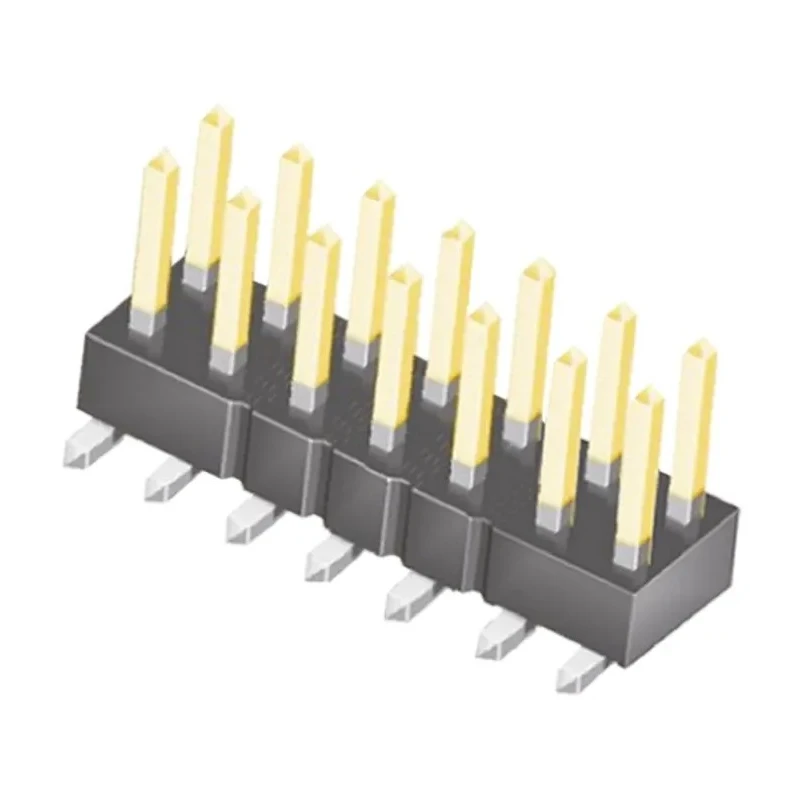

Samtec TSM Series Straight Surface Pin Header 14 Contacts 2.54 mm Pitch 2 Row Unshrouded TSM-107-02-L-DV

The Samtec TSM-107-02-L-DV is a high-quality straight surface pin header from the TSM Series designed for robust and reliable electrical connections in printed circuit board assemblies. Featuring 14 contacts arranged in two rows with a 2.54 mm pitch, this pin header supports board-to-board and wire-to-board connector systems.

Its housing is made from a black liquid crystal polymer, offering excellent mechanical stability and thermal resistance. Contacts are manufactured from phosphor bronze and are plated with 0.25μm gold on the post for superior conductivity and corrosion resistance, and matte tin on the tail to facilitate soldering during surface mount mounting.

Intended for surface mount technology (SMT), the connector's orientation is straight, facilitating easy integration in complex electronic assemblies. The mating pins extend 8.13 mm, ensuring secure mechanical and electrical engagement with corresponding socket strips.

This header supports a continuous current of up to 7 amperes and a voltage rating of 475 volts, making it suitable for a wide range of electronic circuits in industrial, laboratory, and manufacturing equipment. It operates reliably across a broad temperature spectrum, from -55°C up to 125°C, enabling use in demanding environments.

The TSM-107-02-L-DV is unshrouded, allowing flexibility in connector arrangements and mating options. It pairs effectively with various Samtec socket strips including SSM surface mount sockets for versatile board design implementations.

14 contacts in 2 rows with 2.54 mm pitch. Black liquid crystal polymer housing. Phosphor bronze contacts with 0.25 μm gold plating. Surface mount technology compatible design. Current rating of 7A and voltage rating of 475V.

Operating temperature range from -55°C to 125°C. Solder termination type with male contact gender. Mating pin length of 8.13 mm.

This pin header is suitable for electronic component manufacturing, telecommunications, instrumentation, and other applications requiring secure PCB connections. The robust materials and high precision manufacturing ensure long-term durability and consistent performance.
