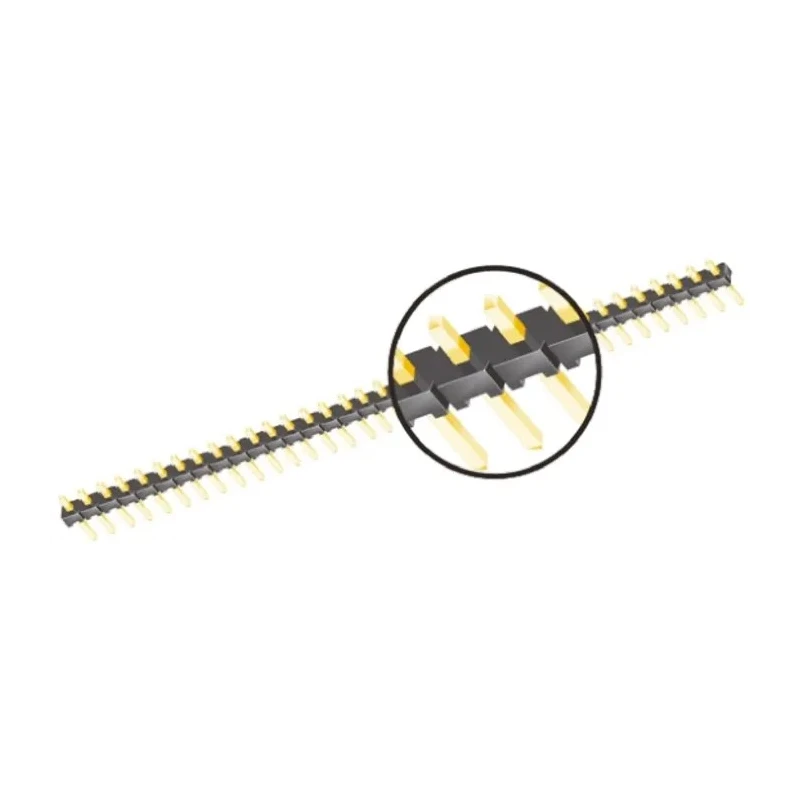

Samtec TMM Series Straight Through Hole Pin Header 6 Contacts 2 mm Pitch 1 Row Unshrouded TMM-106-01-G-S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Samtec |
| Orientation | Straight |
| Operating Temperature | -55°C to +125°C |
| Current | 3.9A |
| Model | TMM-106-01-G-S |
| Mount Type | Through Hole |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TMM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.5mm |
| Mating Pin Length | 3.2mm |
| Insulator Material | Black LCP |
Key Features
- This pin header features a 2 mm pitch and 6 male contacts arranged in a single row.
- Contacts are made of phosphor bronze with gold plating to ensure corrosion resistance and reliable conductivity.
- The housing is constructed from black Liquid Crystal Polymer (LCP) for durability and temperature resistance.
- Designed for through-hole mounting, offering mechanical stability on PCB assemblies.
- Operating temperature range extends from -55°C to +125°C for industrial application versatility.
- Rated for a current of 3.9A and voltage up to 500V.
- Contact pins have a mating length of 3.2 mm and tail pin length of 3.5 mm with low profile 2.77 mm height.
- Unshrouded connector style allows ease of mating with compatible sockets.
Product Description
Samtec TMM-106-01-G-S Straight Through Hole Pin Header is a premium-quality PCB connector designed for reliable electrical connections in electronic assemblies. Featuring 6 male contacts in a single row with a 2 mm pitch, this header supports board-to-board and wire-to-board connector systems. The contact pins comprise phosphor bronze with 0.5 μm gold plating on 3.2 mm long posts and 0.075 μm gold plating on 3.5 mm long tails, ensuring superior conductivity and resistance to corrosion.
The connector housing is manufactured from black Liquid Crystal Polymer (LCP), providing excellent thermal stability and high mechanical strength. This pin header is engineered for through-hole solder mounting, ensuring secure and robust attachment to PCBs.
Designed for versatile industrial applications, it operates efficiently within a broad temperature range from -55°C to +125°C and carries currents up to 3.9A with a voltage rating of 500V, meeting the requirements of demanding electronics manufacturing, assembly, and repair.
The low profile design with an overall height of 2.77 mm optimizes space on densely packed circuit boards. Its unshrouded configuration facilitates easy mating with compatible sockets including SQT, SQW, TLE, and SMM series, enhancing modularity and ease of use in electronic systems.
This product is ideal for applications in instrumentation, industrial control, communication equipment, and other electronic systems requiring compact, reliable connectors with precise pin pitch and high electrical performance.
6 male contacts in a single row configured at 2 mm pitch. Phosphor bronze contacts gold plated for durability and signal integrity. Black LCP housing for high temperature resistance and mechanical robustness. Through-hole mounting for stable PCB connection.
Operating temperature range -55°C to +125°C for broad industrial usability. Voltage rating 500V and current rating 3.9A suitable for many electronic circuits. Compatible with several Samtec socket series for diverse connectivity options.
Samtec offers this TMM Series pin header as part of its range of PCB connectors designed to meet high-quality industrial standards for electronic component interconnectivity. Explore more Samtec PCB Headers and connectors in EnvMart’s extensive electronics components catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this pin header are arranged with a pitch of 2 mm.
This model has a maximum voltage rating of 500V.
It is rated for a current of 3.9A.
The contacts are made of phosphor bronze with gold plating, while the housing is constructed from black Liquid Crystal Polymer (LCP).
The operating temperature range extends from -55°C to +125°C.
This pin header features 6 male contacts arranged in a single row.
It is designed for through-hole mounting, ensuring stable attachment to PCBs.
The tail pin length of the contacts is 3.5 mm.
The mating pin length is 3.2 mm.
This pin header is compatible with board-to-board and wire-to-board connector systems.
The overall height of this model is 2.77 mm.
The contacts are oriented straight in this model.
