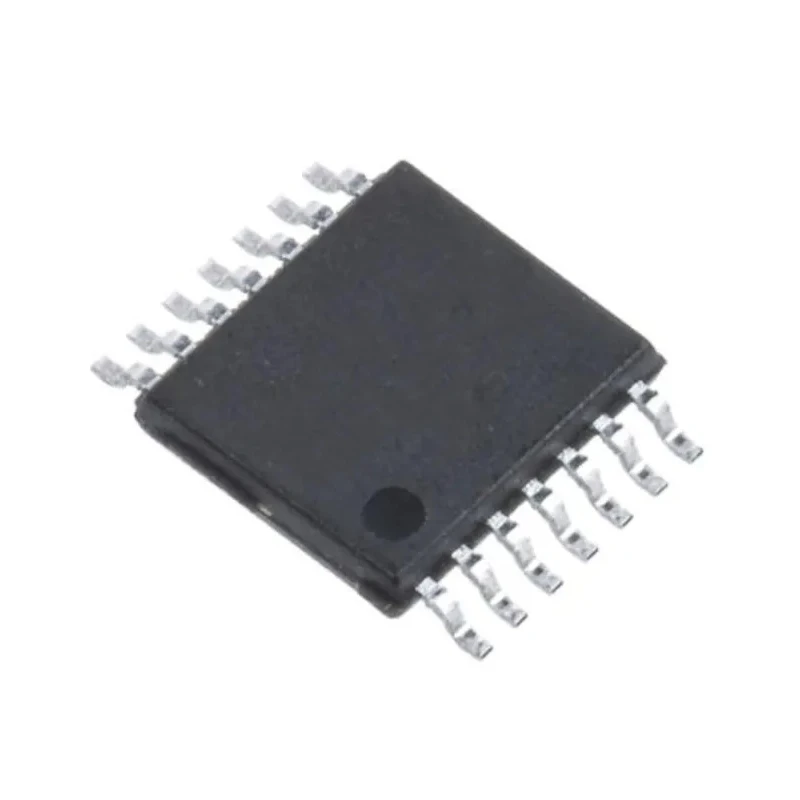

STMicroelectronics Operational Amplifier 1.3 MHz, 14-Pin TSSOP, 2.7-5.5V Supply LMV324LIPT
Specifications
| Country of Origin | Morocco |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 5.1mm |
| Model | LMV324LIPT |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | LMV324L |
| Output Current | 70mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| GBP - Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 60 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 50 nA |
| Industrial temperature range | -40 °C to +125 °C |
| Low supply voltage | 2.7 V - 5.5 V |
| Low offset voltage | 7 mV max at 25 °C |
Key Features
- Features rail-to-rail output capabilities for enhanced signal range.
- Operates with low power consumption of 250 μA maximum at 5 V.
- Supports industrial temperature range from -40°C to +125°C for versatile environments.
- Input offset voltage is low at 7 mV maximum for precision applications.
- Comes in a compact TSSOP package with 14 pins for surface mounting.
- Gain bandwidth product is 1.3 MHz enabling high-frequency performance.
- Low supply voltage range of 2.7 V to 5.5 V for battery-operated devices.
- Output current capability of 70 mA suited for driving loads.
Product Description
STMicroelectronics LMV324LIPT operational amplifier is a versatile quad-channel amplifier designed for low-voltage applications requiring rail-to-rail output, enhanced by a 1.3 MHz gain bandwidth product. Packaged in a compact 14-pin TSSOP surface mount form factor, it supports supply voltages from 2.7 V to 5.5 V, making it ideal for portable and battery-powered electronic devices.
With a low maximum power consumption of 250 μA at 5 V and input offset voltage of 7 mV, this operational amplifier ensures energy-efficient and precise signal processing. It operates reliably across an industrial temperature range of -40°C to +125°C, suitable for robust industrial, laboratory, and manufacturing environments.
This product features a slew rate of 0.6 V/μs and an output current of up to 70 mA, allowing it to drive various loads effectively. The low input bias current of 60 nA supports high sensitivity applications such as sensor interfacing and signal conditioning.
The LMV324LIPT complies with RoHS standards and is manufactured in Morocco, ensuring environmental and quality controls. Its compact dimensions (5.1 mm length, 4.5 mm width, and 1 mm height) facilitate integration into space-constrained electronic assemblies.
Rail-to-rail output capabilities enhance signal range. Low power consumption ensures efficient operation. Industrial temperature range expands application environments. Low input offset voltage supports precision circuits.
Compact 14-pin TSSOP package for surface mounting. 1.3 MHz gain bandwidth product for high-frequency functions. Wide supply voltage range from 2.7 V to 5.5 V. High output current capacity. Low input bias current for sensitive signals.
RoHS compliant, manufactured in Morocco.
Ideal for use in industrial, laboratory, manufacturing, and portable electronic equipment applications requiring compact, low power, and precise signal amplification. For further details and design support, explore EnvMart's extensive range of Operational Amplifiers and semiconductor components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 1.3 MHz, enabling high-frequency performance.
It operates within a supply voltage range of 2.7 V to 5.5 V, making it suitable for battery-operated devices.
The LMV324LIPT can provide an output current of up to 70 mA, allowing it to drive various loads effectively.
The input offset voltage is low at 7 mV maximum, which supports precision applications.
The dimensions of the TSSOP package are 5.1 mm in length, 4.5 mm in width, and 1 mm in height.
It operates reliably across an industrial temperature range of -40°C to +125°C, suitable for various environments.
The maximum power consumption is 250 μA at 5 V, ensuring energy-efficient operation.
This operational amplifier is designed for surface mounting in a compact TSSOP package.
The slew rate of this operational amplifier is 0.6 V/μs, allowing for effective signal processing.
The input bias current is low at 60 nA, which supports high sensitivity applications.
Yes, this operational amplifier complies with RoHS standards, ensuring it meets environmental regulations.
The LMV324LIPT features four channels, making it versatile for various applications.
