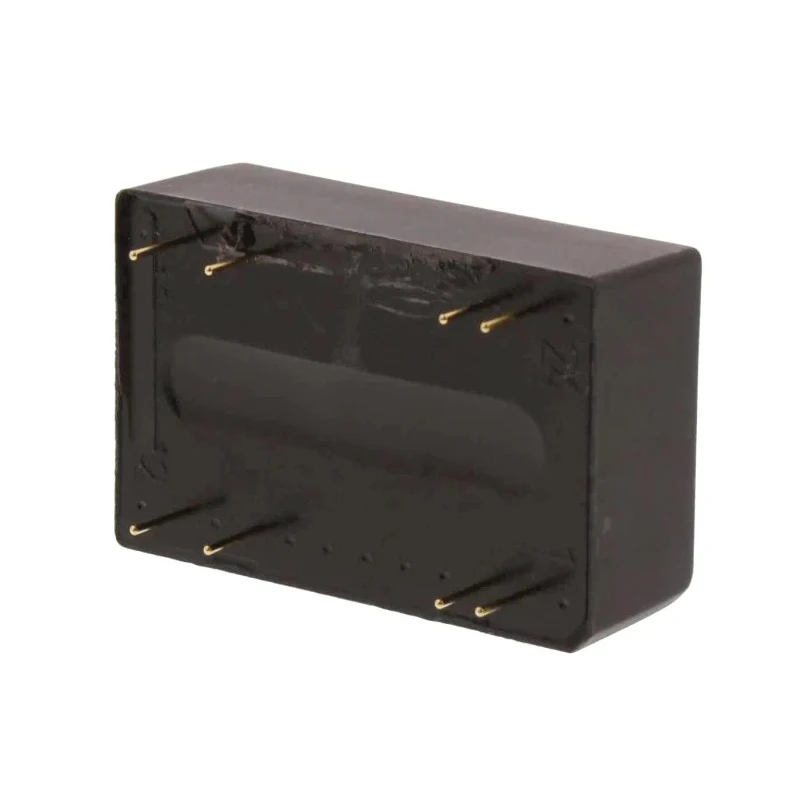

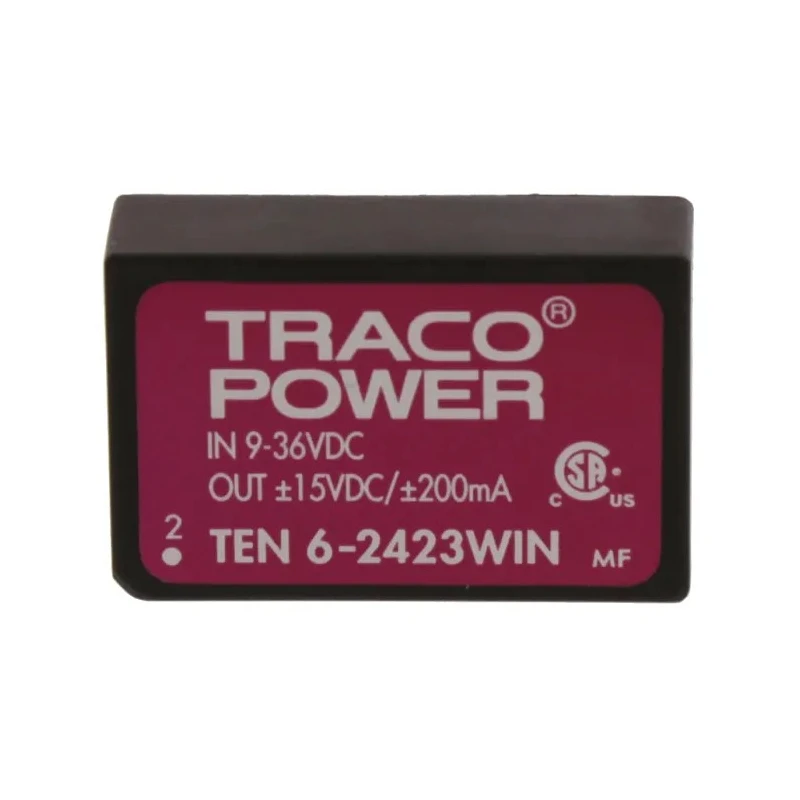

TRACOPOWER TEN 6WIN 6W Isolated DIP24 DC/DC Converter, 15V DC Output, 200 mA, 36V DC Max Input, 9V Min Input TEN 6-2423WIN
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 6WIN DC/DC Converter, 15V dc/ 200 m |
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 31.8mm |
| Model | TEN 6-2423WIN |
| Depth | 10.2mm |
| Mount Type | Through Hole |
| Series | TEN 6WIN |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP-24 |
| Minimum Operating Temperature | -40°C |
| MTBF | 800000h |
| Number of outputs | 2 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 8 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 200mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 1:6 |
| Input Ratio 1 | 6 |
| TEN 6WIN Series 6W isolated DIP24 DC/DC converters with a wide 4 | 1 input voltage range, an optimized cost/performance ratio and a high efficiency. These TEN 6WIN Series isolated DC/DC converters have a DIP-24 standard plastic package making them Ideal for drop in replacements for cost critical applications |
Key Features
- High efficiency of up to 84% optimizes energy usage.
- Provides 1.5 kV DC electrical isolation for safety.
- Operating temperature range from -40°C to 85°C.
- Integrated overload protection for enhanced reliability.
- No minimum load requirement for flexible operation.
- DIP-24 standard package ensures easy PCB integration.
- High reliability with an MTBF of 800,000 hours.
- Ideal for industrial, telecommunications, and laboratory use.
Product Description
TRACOPOWER TEN 6-2423WIN is a 6W isolated DC/DC converter housed in a compact DIP-24 plastic package designed for through-hole mounting. It operates efficiently with an output voltage of 15V DC and a current rating of 200 mA, accepting a wide input voltage range from 9V to 36V DC. This device achieves up to 84% efficiency, balancing performance and energy conservation.
The converter is equipped with overload protection and does not require a minimum load, which allows flexible usage in power critical applications. It offers a robust electrical isolation of 1.5 kV DC, ensuring safety in industrial and electronic systems. The operating temperature range extends from -40°C to a maximum of 85°C, suitable for different environmental conditions.
With an MTBF of 800,000 hours, the TEN 6WIN series demonstrates high reliability making it ideal for use in electronic equipment, industrial machinery, telecommunications, and laboratory instruments. Its DIP-24 package features an industry-standard pinout facilitating drop-in replacements and easy design adaptation.
The converter supports a wide 4:1 input voltage ratio for versatile input applications. High reliability and prolonged operational life are ensured by the substantial MTBF rating. Its through-hole mounting style simplifies PCB assembly and mechanical stability.
The component provides sufficient isolation voltage meeting stringent industrial safety standards. The compact dimensions of 31.8mm length and 10.2mm depth suit dense electronic assemblies.
This product is manufactured in Taiwan, Province of China, adhering to quality production standards. The TRACOPOWER TEN 6-2423WIN DC/DC converter is suitable for engineers and designers seeking reliable isolated power solutions in varied industrial, communication, and electronic instrumentation projects. Browse EnvMart for a broad range of related DC/DC Converters and power supply components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TEN 6-2423WIN provides an output voltage of 15V DC and has a current rating of 200 mA.
This model achieves an efficiency of up to 84%, optimizing energy usage.
It accepts a wide input voltage range from 9V to 36V DC, allowing for versatile applications.
The TEN 6-2423WIN offers an isolation voltage of 1.5 kV DC for safety in various applications.
This unit has a length of 31.8 mm and a depth of 10.2 mm, suitable for compact PCB designs.
It operates within a temperature range of -40°C to 85°C, making it suitable for diverse environmental conditions.
No, this model does not require a minimum load, allowing for flexible operation in power-critical applications.
It features a through-hole mounting style, which simplifies PCB assembly and enhances mechanical stability.
The TEN 6-2423WIN has a mean time between failures (MTBF) rating of 800,000 hours, indicating high reliability.
It is housed in a DIP-24 plastic package, which is standard for easy integration into PCB designs.
This model is ideal for use in industrial, telecommunications, and laboratory applications.
It includes integrated overload protection and does not require a minimum load, contributing to its reliability in various applications.
