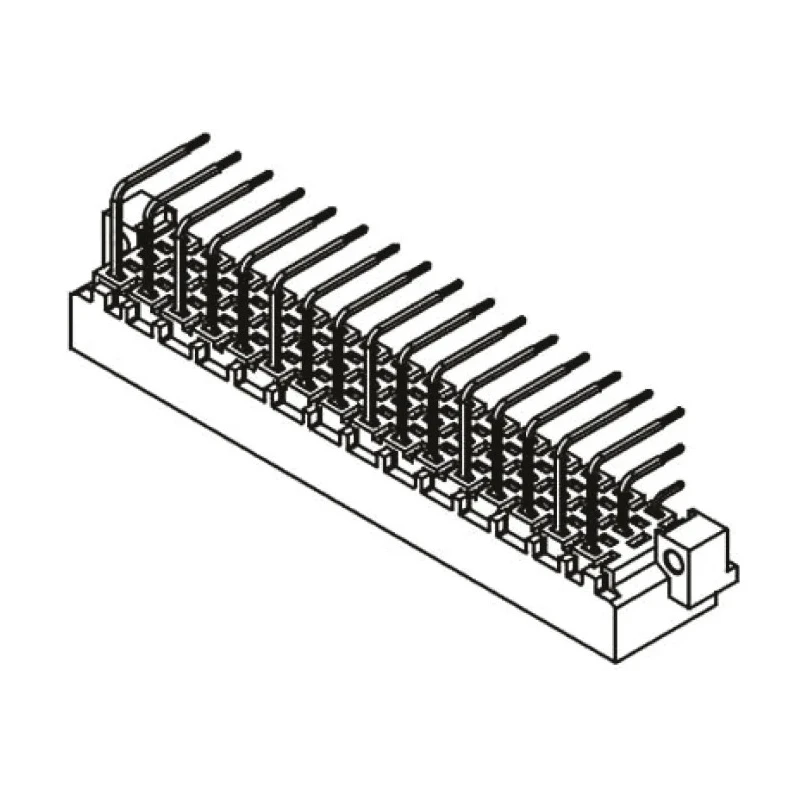

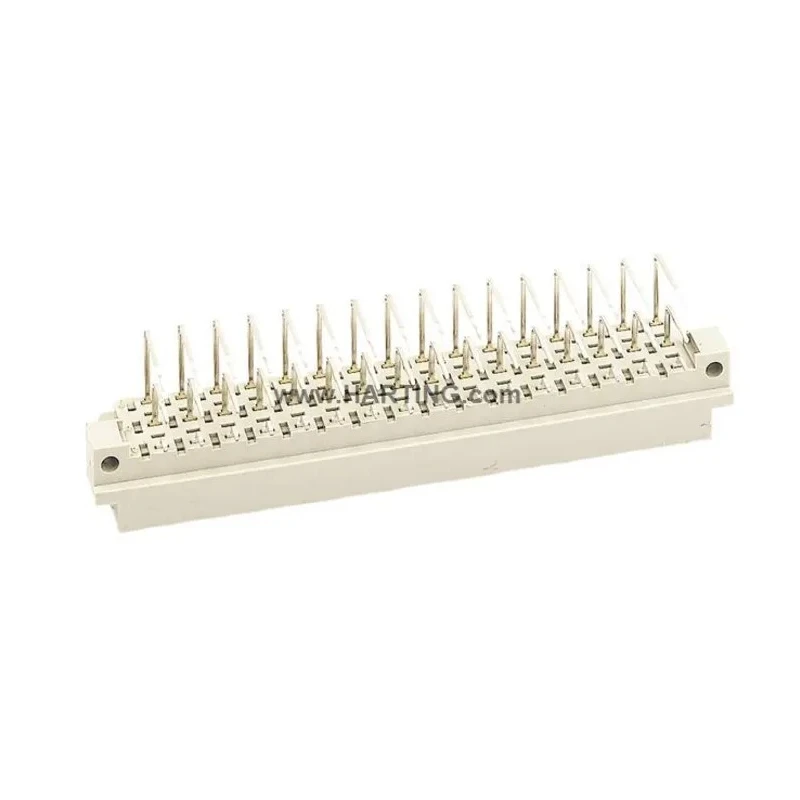

HARTING DIN 41612 Connector 48 Contacts 3 Row Male Right Angle 5.08 mm Pitch Solder Type Class C1 09051482921
Specifications
| Country of Origin | Switzerland |
|---|---|
| Brand | HARTING |
| Orientation | Right Angle |
| Current | 6A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 05 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Type E |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 5.08mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 15mΩ |
| Row Loading | A/C/E |
Key Features
- Designed for high power applications such as power supply and railway transportation.
- Constructed with copper alloy contacts plated with gold over nickel for durability and conductivity.
- Thermoplastic housing material provides robust insulation and mechanical strength.
- Operates reliably within a temperature range of -55°C to 125°C.
- Maximum contact resistance of 15 milliohms ensures efficient electrical connection.
- Supports a maximum current of 6A per contact for demanding industrial uses.
- Right angle orientation facilitates board-to-board connections in compact assemblies.
- Complies with DIN 41612 standards, assuring interoperability and quality.
Product Description
HARTING 09051482921 DIN 41612 Connector is a premium-quality electronic component designed for demanding industrial and transportation applications requiring reliable power and signal connections. This 48 contact, 3 row male connector features a precise 5.08 mm pitch, solder termination, and Class C1 construction categorized as Type E, ensuring robust physical and electrical performance.
The connector's copper alloy contacts are plated with gold over nickel, enhancing corrosion resistance and maintaining low contact resistance up to 15 milliohms. The thermoplastic housing material reinforced with glass fiber provides insulation and durability under harsh conditions.
Operable in extreme environments from -55°C to 125°C, it supports up to 6 amperes current per contact, making it suitable for power supply units and railway transportation control systems. The right angle orientation enables efficient space utilization in compact board-to-board configurations.
Compliant with DIN 41612 international standards, the product ensures compatibility and reliable interfacing across various electronic assemblies. It is particularly applicable in industrial automation, power electronics, and transportation sectors where high current and stable connections are necessary.
High power capability up to 6A per contact. Durable gold-over-nickel contact plating. Thermoplastic glass-fiber reinforced housing for mechanical strength. Operating temperature range from -55°C to 125°C. Right angle male connector design for board connections.
Class C1, Type E classification for reliable performance. 48 contacts organized in three rows for versatile connection. Ideal for industrial and railway power applications.
Set your projects for success with the reliable HARTING 09051482921 connector, expertly engineered for high power and harsh operating environments. Explore our full catalog for a wide range of DIN 41612 Connectors suitable for demanding industrial, laboratory, HVAC, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports a maximum current of 6A per contact, making it suitable for demanding industrial applications.
It operates reliably within a temperature range of -55°C to 125°C, suitable for extreme environments.
The connector features 48 contacts organized in three rows, providing versatile connection options.
The pitch size for this model is 5.08 mm, which is standard for DIN 41612 connectors.
It is constructed with copper alloy contacts plated with gold over nickel and a thermoplastic housing material reinforced with glass fiber for mechanical strength.
This model utilizes a solder termination type, ensuring a secure electrical connection.
The maximum contact resistance is 15 milliohms, ensuring efficient electrical connection.
It features a right angle orientation, facilitating board-to-board connections in compact assemblies.
This connector complies with DIN 41612 standards, assuring interoperability and quality in electronic assemblies.
It is particularly applicable in industrial automation, power electronics, and railway transportation control systems.
It is classified as Class C1 and Type E, ensuring robust physical and electrical performance.
The connector is manufactured in Switzerland, ensuring high-quality standards in production.
