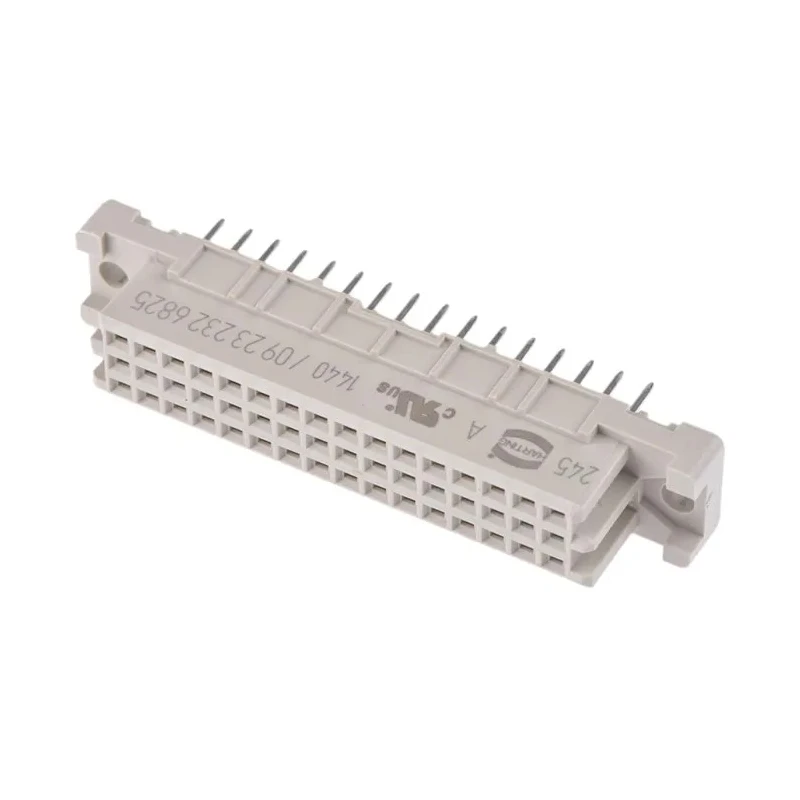

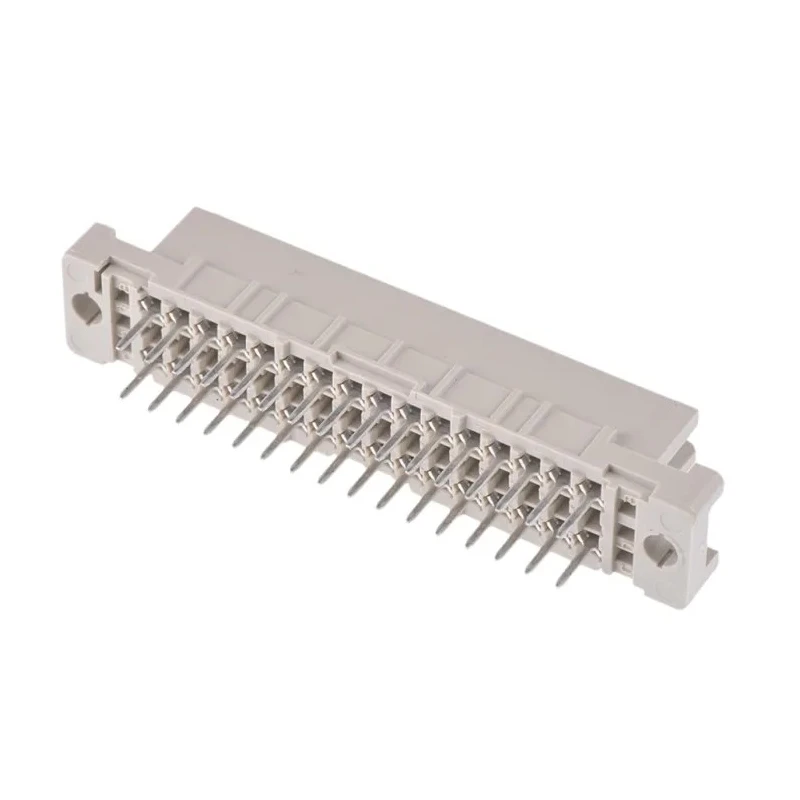

HARTING DIN 41612 32 Way 2.54 mm Pitch Type C/2 Solder Class C2 3 Row Female Straight Connector 09232326825
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 23 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
Key Features
- Features a 3 row configuration providing reliable connectivity.
- Constructed with copper alloy contacts plated with gold over nickel for superior conductivity.
- Thermoplastic housing ensures durability withstanding operating temperatures from -55°C to 125°C.
- Supports a current rating of 2A, suitable for electronic signal transmission.
- Designed with a straight orientation and female connector gender for versatile mounting.
- Offers a maximum contact resistance of 20 milliohms ensuring low signal loss.
- Compatible with DIN 41612 standards used in 19in Eurocard racking systems.
- Manufactured in Germany ensuring high quality and industrial reliability.
Product Description
HARTING 09232326825 DIN 41612 Connector is a high-quality female signal connector designed specifically for PCB solder mount applications. This 32 way connector features a 2.54 mm pitch and a Type C/2 configuration with three rows, making it ideal for complex electronic circuit interconnections.
The connector is constructed with copper alloy contacts plated with gold over nickel to provide exceptional electrical conductivity and resistance to corrosion. Its thermoplastic housing is glass fibre filled, enhancing mechanical strength and durability suitable for industrial environments. The connector operates reliably within a temperature range from -55°C to 125°C, accommodating harsh operating conditions.
This DIN 41612 Connector supports a current rating of 2A and has a maximum contact resistance of 20 milliohms, ensuring efficient signal transmission with minimal electrical losses. The straight, female orientation allows for easy mounting and integration into various electronic equipment and Eurocard racking systems.
As a component manufactured in Germany, it meets precise engineering standards and is widely used across industrial, manufacturing, electronic, laboratory, and automation applications where dependable and durable electrical connectors are required.
Features a 3 row configuration providing reliable connectivity. Constructed with copper alloy contacts plated with gold over nickel for superior conductivity. Thermoplastic housing ensures durability withstanding operating temperatures from -55°C to 125°C.
Supports a current rating of 2A, suitable for electronic signal transmission. Designed with a straight orientation and female connector gender for versatile mounting. Offers a maximum contact resistance of 20 milliohms ensuring low signal loss.
Compatible with DIN 41612 standards used in 19in Eurocard racking systems. Manufactured in Germany ensuring high quality and industrial reliability.
This connector is ideal for industrial electronics, backplane and rack systems, automation equipment, and telecommunication applications. Explore the range of HARTING connectors on EnvMart for dependable and premium connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 2A, making it suitable for electronic signal transmission.
This model operates reliably within a temperature range from -55°C to 125°C.
It features 32 contacts, arranged in a 3 row configuration.
The connector is constructed with copper alloy contacts plated with gold over nickel, and has a thermoplastic housing.
It offers a maximum contact resistance of 20 milliohms, ensuring low signal loss.
Yes, it is compatible with DIN 41612 standards used in 19in Eurocard racking systems.
The pitch of this connector is 2.54 mm.
It uses a solder termination type for mounting.
This model has a straight orientation, designed for versatile mounting.
It is manufactured in Germany, ensuring high quality and industrial reliability.
It is ideal for industrial electronics, backplane and rack systems, automation equipment, and telecommunication applications.
The connector has a female gender, designed for PCB solder mount applications.
