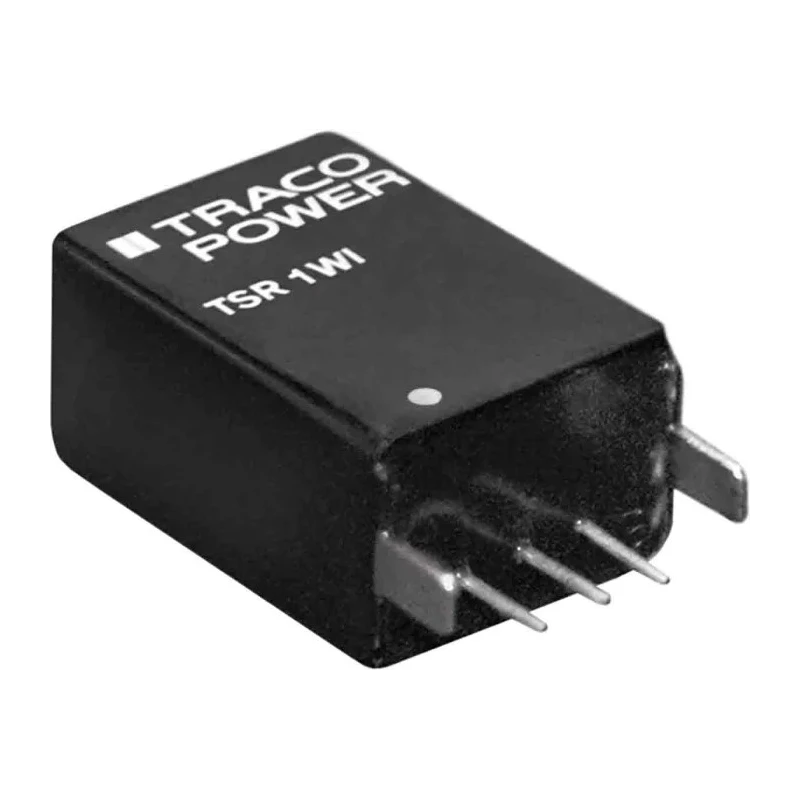

TRACOPOWER DC/DC Converter SIP Package 6.5V Output, 72V to 9V Input, 1A Output Current, Through Hole Mount TSR 1-4865WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 0.88% |
| Operating Temperature Range | -40 to +80°C |
| Length | 12mm |
| Model | TSR 1-4865WI |
| Depth | 17.5mm |
| Gross Weight | 5.5g |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | TSR 1-4865WI |
| Maximum Operating Temperature | 80°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 8215000h |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Input Voltage | 72V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V dc |
| Output Voltage 1 | 6.5V dc |
| Output Current 1 | 1A |
Key Features
- Operates with an ultra-wide input voltage range from 9V to 72V DC.
- Single output rated at 6.5V DC with 1 Ampere current capacity.
- Compact SIP package measuring 17.5mm depth, 12mm length, and 8.5mm width with through-hole mounting.
- High reliability with MTBF of 8,215,000 hours and RoHS compliant.
- Operating temperature range from -40°C to +80°C suitable for harsh environments.
- Efficient operation with up to 88% efficiency, reducing power loss and heat.
- Includes protection against short circuit, overvoltage, and overload conditions.
- Low ripple and noise of 50mV peak-to-peak ensures stable output.
Product Description
TRACOPOWER TSR 1-4865WI is a high-performance DC/DC converter featuring a robust SIP package design suitable for through-hole mounting. It delivers a stable 6.5V DC output with a maximum output current of 1 Ampere. The converter accepts an ultra-wide input voltage range from 9V to 72V DC, catering to various standard bus and battery voltages for flexible distributed power system applications.
Designed for reliability, this model offers an outstanding MTBF of over 8 million hours and is RoHS compliant, making it environmentally friendly. Operating reliably within a temperature range of -40°C to +80°C, the TSR 1-4865WI is engineered for demanding industrial and commercial environments.
The converter’s efficiency of approximately 88% minimizes power dissipation, eliminating the need for additional heatsinks. Its precise voltage regulation and low ripple and noise of 50mV peak-to-peak ensure clean, stable power for sensitive electronics.
Additional protections against short circuits, overvoltage, and overload increase operational safety and durability. Its compact form factor (17.5mm depth, 12mm length, and 8.5mm width) and SIP package provide ease of integration in various PCB layouts.
Ultra-wide input voltage range (9V to 72V DC) for flexible power supply design. Single 6.5V output voltage with 1A current capacity for moderate loads. Through-hole SIP package for reliable mounting and easy installation.
Low standby current contributing to energy-efficient operation. Robust protection features for enhanced device safety. Compliance with RoHS environmental standards. Suitable for industrial, laboratory, communications, and battery-powered applications.
TRACOPOWER DC/DC Converters are widely used in industrial control systems, telecommunications equipment, embedded devices, and distributed power architectures. This product’s high MTBF and protective features make it a trusted choice for engineers requiring dependable power conversion solutions.
Explore more TRACOPOWER converters and electronic components on EnvMart to support your next innovative project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TSR 1-4865WI operates with an ultra-wide input voltage range from 9V to 72V DC.
It provides a stable output voltage of 6.5V DC with a maximum output current capacity of 1 Ampere.
This model operates with an efficiency of approximately 88%, which helps minimize power dissipation.
It has a compact form factor with dimensions of 17.5mm in depth, 12mm in length, and 8.5mm in width.
The operating temperature range is from -40°C to +80°C, making it suitable for harsh environments.
This converter features a through-hole mounting type, which allows for reliable installation on PCBs.
It includes protections against short circuits, overvoltage, and overload conditions for enhanced operational safety.
The output ripple and noise is specified at 50mV peak-to-peak, ensuring stable power delivery.
The TSR 1-4865WI has a mean time between failures (MTBF) of 8,215,000 hours, indicating high reliability.
Yes, the TSR 1-4865WI is RoHS compliant, making it environmentally friendly.
It is suitable for applications in industrial control systems, telecommunications equipment, embedded devices, and distributed power architectures.
The TSR 1-4865WI is manufactured in Taiwan.
