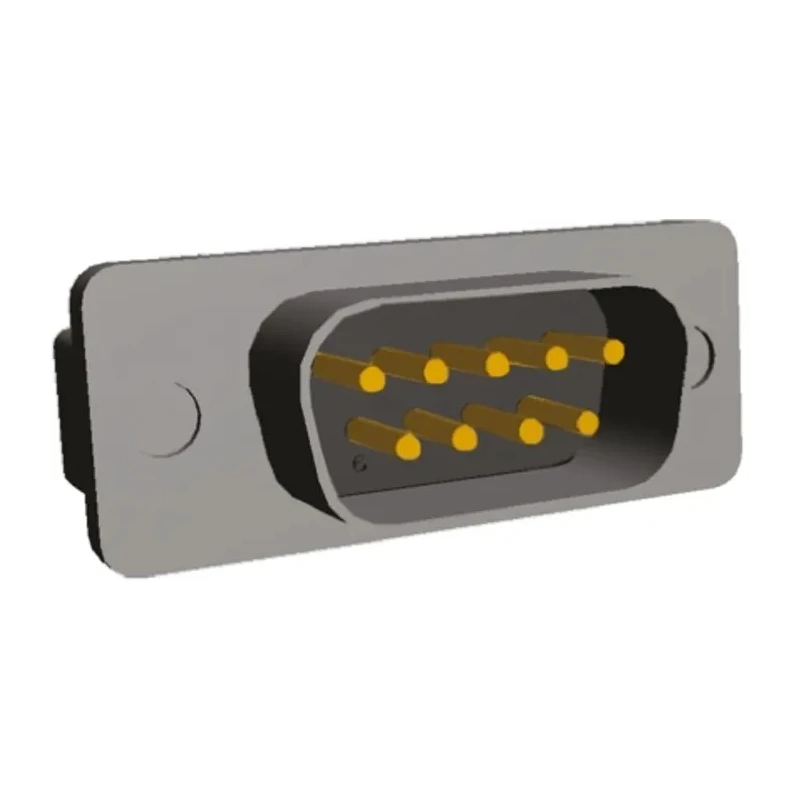

TE Connectivity AMPLIMITE HD-20 9 Way Straight Through Hole D-Sub Connector with 4 to 40 UNC PCB Retention 2-5748003-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 UNC PCB Retention Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
| D-Sub Shell Size | DS-1 |
Key Features
- This D-Sub connector features 9 contacts rated for a current of 6A each.
- It has a straight orientation and uses through hole mounting for PCB installation.
- The housing is made of black 94V-0 thermoplastic ensuring insulation and durability.
- Operating temperature range is from -55°C up to 105°C, suitable for harsh environments.
- Termination type is solder, ensuring strong electrical contact.
- The connector uses 4 to 40 UNC PCB retention inserts for secure mounting.
- The contact material is brass with a gold plating providing corrosion resistance and reliable conductivity.
- No specific industry approval or standards are listed for this connector.
Product Description
TE Connectivity 2-5748003-0 AMPLIMITE HD-20 9 Way Straight Through Hole D-Sub Connector is a high-quality, male PCB mount connector designed for industrial and electronic applications. Featuring 9 brass contacts with gold plating, this connector offers excellent electrical conductivity and corrosion resistance.
The straight orientation and through hole mount type make it suitable for secure PCB installation in complex electronic assemblies. Its housing is constructed from robust 94V-0 rated black thermoplastic, ensuring electrical insulation and resistance to mechanical stresses.
With an operating temperature range from -55°C to 105°C, this connector is ideal for use in harsh environments found in industrial, manufacturing, laboratory, and electronic system designs.
The connector's 4 to 40 UNC PCB retention inserts provide a firm mechanical connection to printed circuit boards, enhancing durability and reliability in demanding applications. This AMPLIMITE HD-20 series connector is extensively used in power and signal connections within electronic instrumentation, telecommunications, and automation devices.
This D-Sub connector features 9 contacts rated at 6A current capacity. It uses a solder termination type for reliable electrical connections. The housing material is durable black thermoplastic providing insulation. Operating temperatures range from -55°C to 105°C for versatile application.
Contact material is brass with a gold plating to prevent corrosion. It includes 4 to 40 UNC PCB retention inserts for secure mounting. No certifications or approvals are indicated for this product. The connector design includes a front metal shell for added protection.
Suitable for industrial, laboratory, manufacturing, and electronic component assembly. Explore more connectors and electronic components in the D-Sub Connector category at EnvMart for enhanced project solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector features 9 contacts, each rated for a current of 6A.
The operating temperature range for this connector is from -55°C to 105°C, making it suitable for harsh environments.
It uses a solder termination type, ensuring strong electrical contact.
This model features through hole mounting and includes 4 to 40 UNC PCB retention inserts for secure installation.
The housing is made of black 94V-0 thermoplastic, while the contacts are brass with gold plating for corrosion resistance.
This D-Sub connector has a straight orientation.
This model has a total of 9 contacts.
The D-Sub shell size for this connector is DS-1.
No specific industry approval or standards are listed for this connector.
It is suitable for industrial, laboratory, manufacturing, and electronic component assembly applications.
The contact material is brass with a gold plating, providing reliable conductivity and corrosion resistance.
The country of origin for this D-Sub connector is India.
