RS PRO Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 15 V dc 240 V ac 734-7198

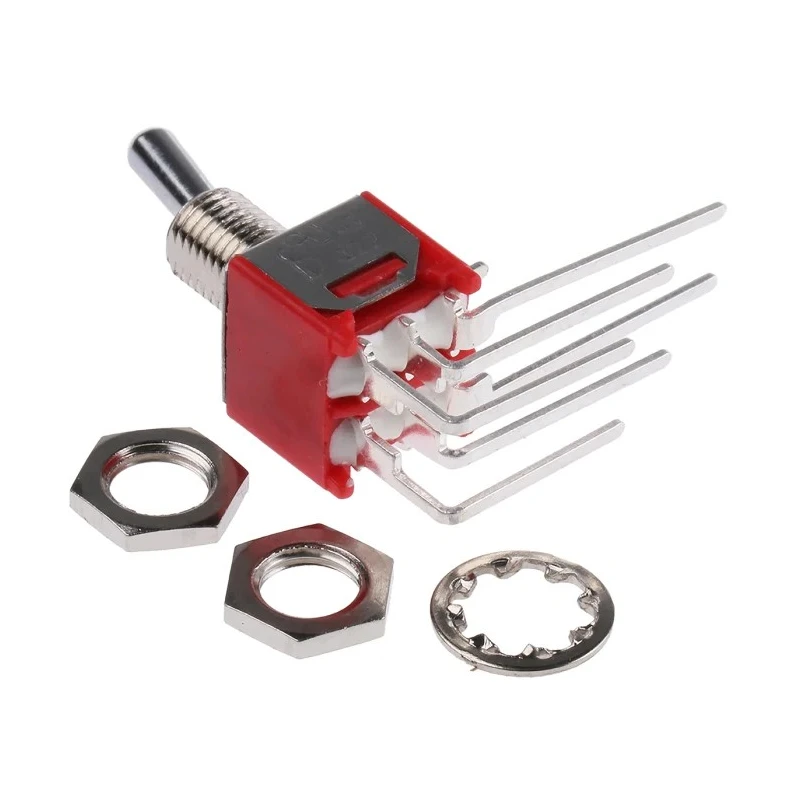

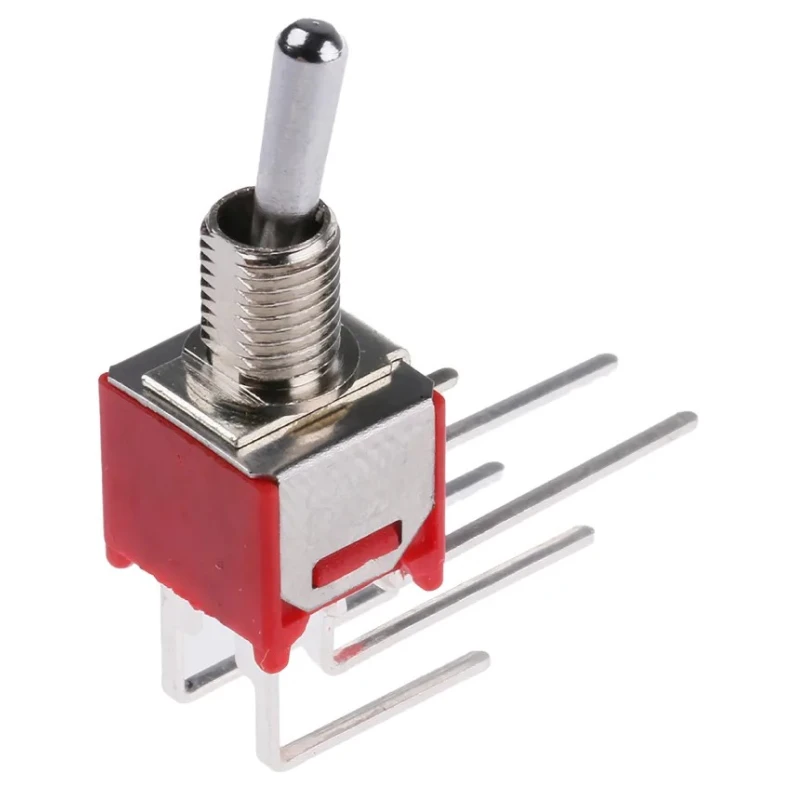

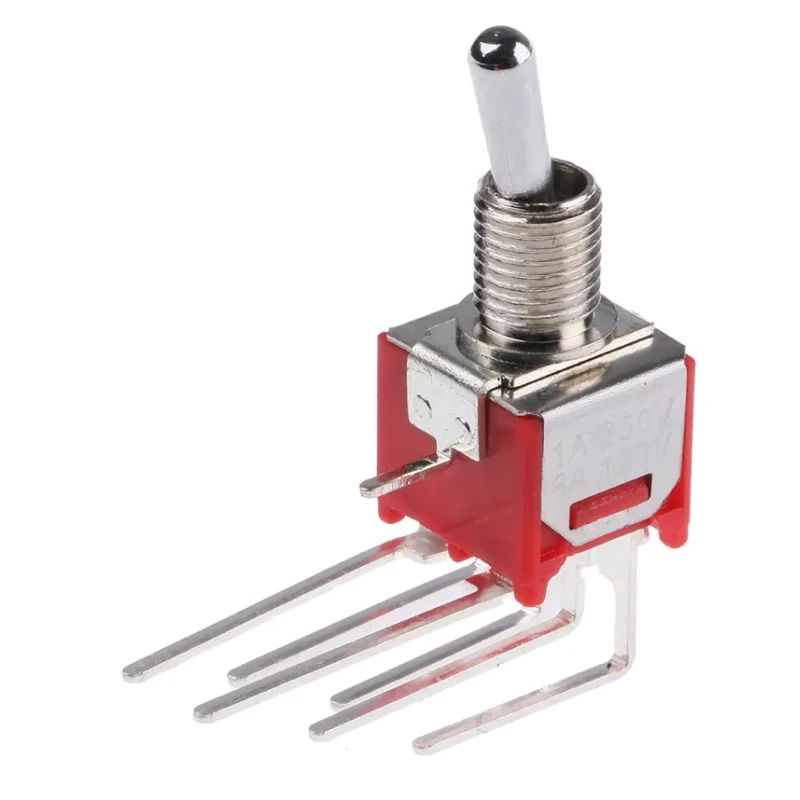

Name: RS PRO Toggle Switch PCB Mount On-On DPDT Through Hole Terminal 15 V dc 240 V ac 734-7198
Brand: RS PRO
SKU: 103797
Price: 473.29 INR
Availability: InStock



Category Toggle Switch Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	734-7198
IP Rating	IP66, IP56
Mount Type	PCB
Maximum Operating Temperature	85°C
Contact Configuration	DPDT
Switch Configuration	On-(On)
Minimum Operating Temperature	-30°C
Panel Cutout Size	4.95 mm
Terminal type	Through Hole
Standards/Approvals	UL, CSA, CE, RoHS
Switch Operation	On-On
Actuator Length	7.37mm
Contact DC Voltage	15V dc
Switch Contact Current	3A
Mechanical Life	30000Cycles
Contact AC Voltage	240V ac
Actuator Material	Chrome Plated Brass

Key Features

The toggle switch features a durable chrome plated brass actuator.
It supports a contact current of 3A suitable for various electrical applications.
Designed for robust performance with an IP rating of IP66 and IP56 providing dust and water resistance.
With mechanical life rated up to 30000 cycles, it ensures long-lasting reliability.
The panel cutout size is 4.95 mm for precise mounting in compact electronic assemblies.
Operating temperature range spans from -30°C to 85°C, suitable for varied environments.
Ideal for industrial automation, electrical control panels, and machinery requiring reliable switching solutions.

Product Description

RS PRO 734-7198 Toggle Switch is a sub-miniature, PCB mount toggle switch with On-On double-pole double-throw (DPDT) configuration suitable for industrial and commercial electrical and automation systems.

It is engineered with a chrome plated brass actuator that provides durability and precise actuation. The switch supports a contact current rating of 3A and can handle 15 V dc and 240 V ac voltages, making it applicable in low voltage DC circuits and higher voltage AC controls.

The switch offers robust protection with IP66 and IP56 ratings, ensuring resistance to dust ingress and water jets, ideal for harsh industrial environments. The mechanical design guarantees a lifecycle of 30000 switching cycles, underlining its reliability for prolonged use in machinery and industrial control panels.

The panel cutout size of 4.95 mm facilitates easy installation on compact PCBs while maintaining secure mounting with through hole terminals. Operating temperature range from -30°C to 85°C enables deployment in both cold and warm industrial sites.

Chrome plated brass actuator for durability. 3A contact current for reliable electrical load handling. IP66 and IP56 rated for dust and water resistance. 30000 mechanical switching cycles life expectancy. Compact 4.95 mm panel cutout size for precise mounting.

Wide operating temperature range from -30°C to 85°C. Double pole double throw On-On switch configuration.

This toggle switch is suited for use in industrial automation, HVAC controls, electrical machinery, and other manufacturing equipment where dependable switching performance is required.

Explore more from RS PRO and other quality Toggle Switches in the Electronics & Electricals category at EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The switch supports a contact current rating of 3A, making it suitable for various electrical applications.

It can handle a contact DC voltage of 15V and a contact AC voltage of 240V, allowing for use in both low voltage DC circuits and higher voltage AC controls.

The switch has an IP rating of IP66 and IP56, ensuring resistance to dust ingress and water jets, making it suitable for harsh industrial environments.

The mechanical life of this toggle switch is rated for up to 30,000 cycles, ensuring reliability for prolonged use.

It operates within a temperature range of -30°C to 85°C, making it suitable for varied environmental conditions.

The required panel cutout size for this model is 4.95 mm, facilitating precise mounting in compact electronic assemblies.

This toggle switch is designed for PCB mounting and features through hole terminals for secure installation.

The actuator is made of chrome plated brass, providing durability and precise actuation.

The switch features a double-pole double-throw (DPDT) configuration, allowing for versatile switching options.

This toggle switch complies with UL, CSA, CE, and RoHS standards, ensuring it meets various regulatory requirements.

It is ideal for use in industrial automation, HVAC controls, electrical machinery, and other manufacturing equipment requiring reliable switching performance.

This model operates with an On-On switch configuration, allowing for two active positions.
