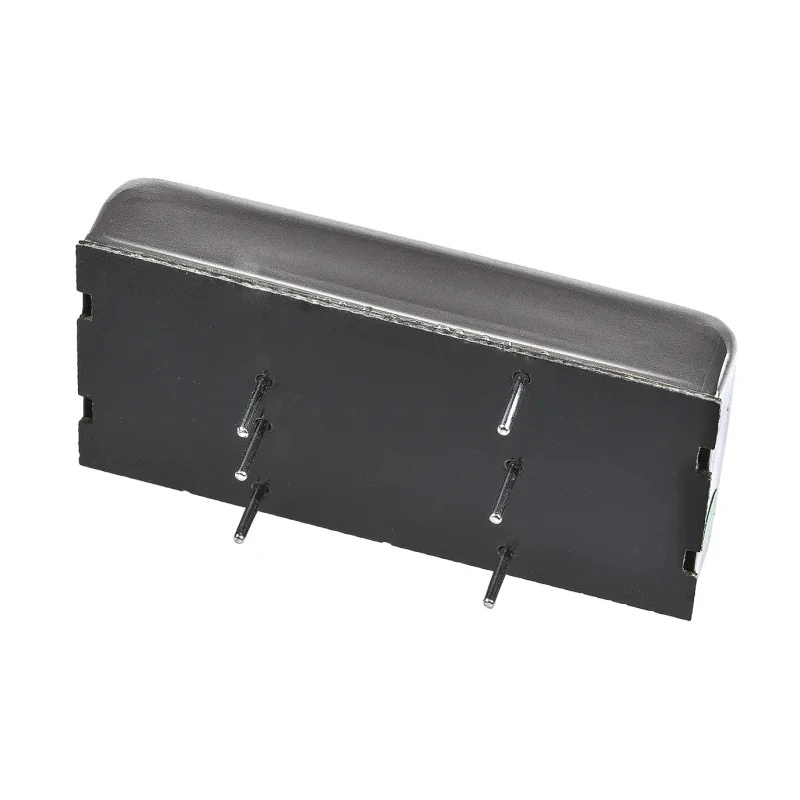

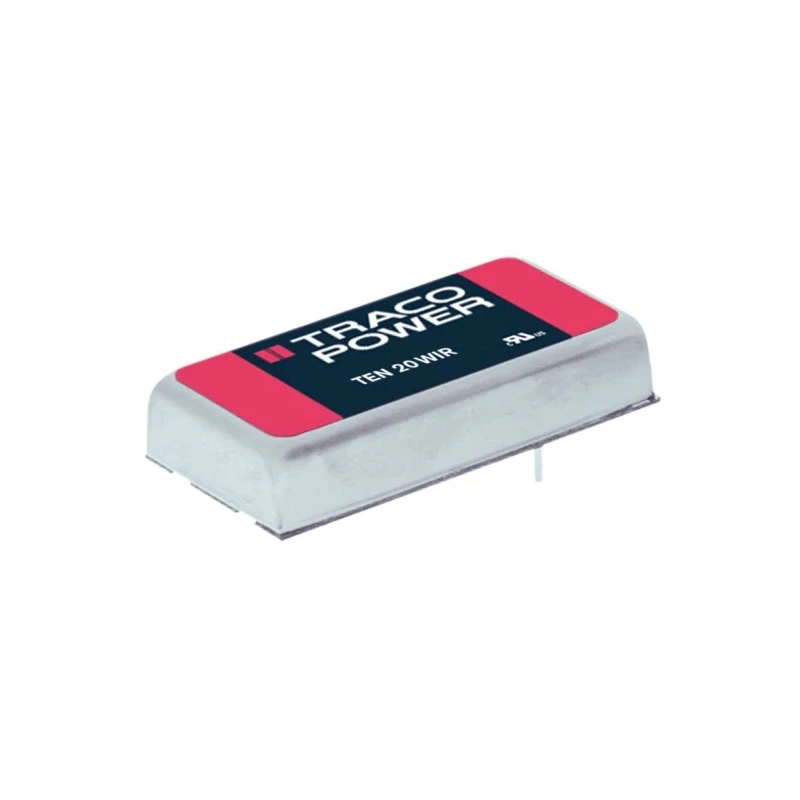

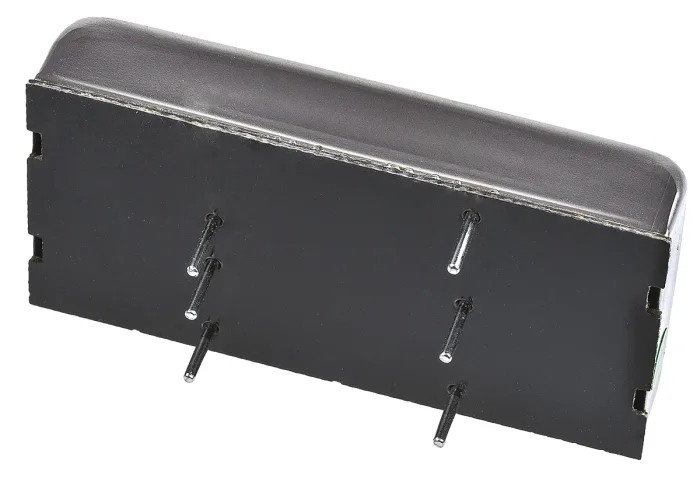

TRACOPOWER 20W Single Output Regulated Isolated DC/DC Converter 12V DC 1.67A Input 43V to 160V TEN 20-7212WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 20WIR DC/DC Converter, 12V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 50.8mm |
| Model | TEN 20-7212WIR |
| Depth | 10.2mm |
| Mount Type | PCB |
| Series | TEN 20WIR |
| Maximum Operating Temperature | 85°C |
| Package Type | Metal case |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 160V dc |
| Protection | Over voltage (on single output models), under voltage lockout and short circuit |
| Minimum Input Voltage | 43V |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.67A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 1:6 |
| Ultra wide 4 | 1 input voltage range of up to 160 Vdc |
| Input Ratio 1 | 6 |
| DC/DC converter,40-160Vin,12Vo 1.66A,20WBrand | Recom |
Key Features
- Ultra-wide input voltage range from 43V to 160V DC ensures versatile compatibility.
- High efficiency of 88% reduces energy loss during operation.
- Compact metal case package measuring 50.8mm length and 10.2mm depth for space-saving integration.
- Wide operating temperature range from -40°C to 85°C suitable for harsh environments.
- Offers 1.5kV DC isolation voltage for enhanced electrical safety and noise reduction.
- MTBF of 700,000 hours indicating high reliability and long operational life.
- Features over-voltage, under-voltage lockout and short circuit protection for device safety.
- Designed and manufactured in Taiwan, Province Of China, meeting industrial standards.
Product Description
TRACOPOWER TEN 20-7212WIR is a high-quality 20W single output regulated isolated DC/DC converter designed for demanding industrial and transportation applications. It provides a stable 12V DC output at 1.67A current from a broad input range of 43V to 160V DC, making it suitable for a variety of power sources.
The converter is housed in a durable metal case with a compact footprint of 2 inches by 1 inch (50.8mm by 10.2mm depth), ideal for PCB mounting in constrained spaces. It features outstanding efficiency of up to 88%, minimizing heat generation and improving energy utilization.
Engineered for robust operation, it operates reliably in extreme temperatures from -40°C up to 85°C and complies with EN 50155 standards, making it particularly well-suited for railway, transportation, and industrial control systems.
The device includes essential safety features such as over-voltage protection, under-voltage lockout, and short circuit protection to safeguard both the converter and connected equipment. Its 1.5kV DC isolation voltage provides excellent electrical protection and noise immunity, critical for industrial environments.
With a mean time between failures (MTBF) of 700,000 hours, this DC/DC converter guarantees long-term dependable performance. It supports remote On/Off control and requires no minimum load to maintain regulation, adding flexibility to system designs.
Ultra-wide input voltage range from 43V to 160V DC for compatibility with diverse power sources. High 88% efficiency for energy saving and reduced thermal output. Robust metal case package enables effective mounting and mechanical protection.
Wide operating temperature range of -40°C to 85°C accommodates harsh environments. Electrical isolation rating of 1.5kV DC ensures safety and noise reduction. Advanced protections against over-voltage, under-voltage, and short circuits.
MTBF of 700,000 hours ensures reliability and longevity in demanding applications. Compliant with EN 50155 railway standards for transportation use cases.
This TRACOPOWER DC/DC Converter series is ideal for industrial automation, railway and transportation systems, telecommunications, wireless networks, and measurement equipment. Its compact design and flexibility allow seamless integration in harsh and demanding environments.
Explore more industrial electronic converters and components at EnvMart for your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The converter provides a stable output voltage of 12V DC with a maximum output current of 1.67A.
It has an ultra-wide input voltage range from 43V to 160V DC, allowing compatibility with various power sources.
This DC/DC converter has an efficiency rating of 88%, which reduces energy loss during operation.
The converter measures 50.8mm in length and 10.2mm in depth, making it suitable for PCB mounting in compact spaces.
It can operate in temperatures ranging from -40°C to 85°C, making it suitable for harsh environments.
Yes, it offers an isolation voltage of 1.5kV DC, enhancing electrical safety and noise reduction.
It includes over-voltage protection, under-voltage lockout, and short circuit protection to safeguard the device and connected equipment.
The MTBF for this converter is 700,000 hours, indicating high reliability and long operational life.
Yes, this model supports remote On/Off control, providing flexibility in system designs.
It is designed for PCB mounting, allowing for effective integration into various applications.
This DC/DC converter is designed and manufactured in Taiwan, Province Of China.
It is ideal for industrial automation, railway and transportation systems, telecommunications, and measurement equipment.
