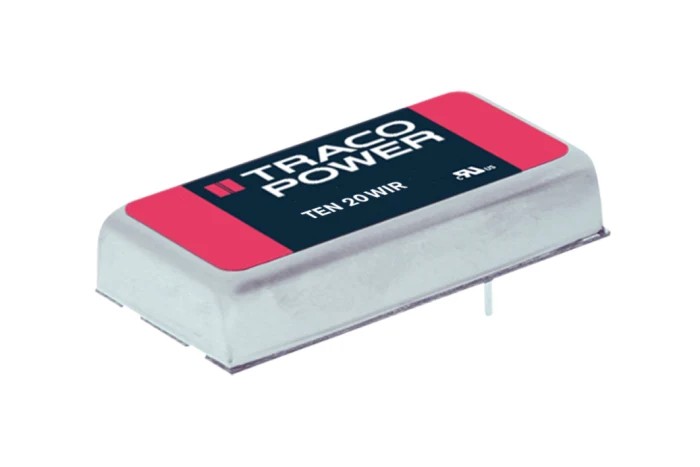

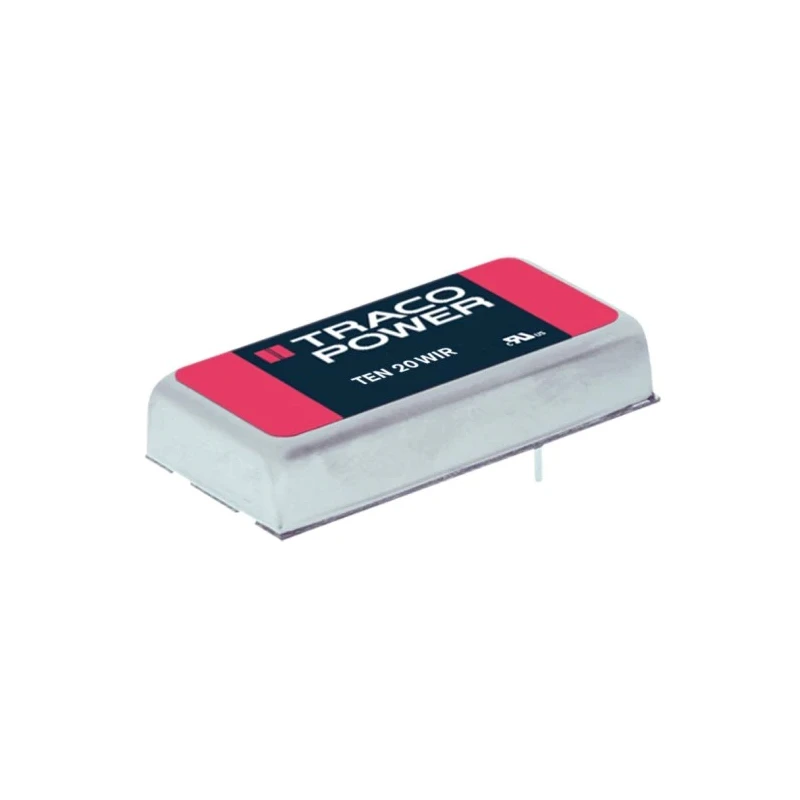

TRACOPOWER 20W Single Output Regulated Isolated DC/DC Converter, 15V dc Output, 1.33A, 36V dc Maximum Input TEN 20-2413WIR
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 20WIR DC/DC Converter, 15V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 50.8mm |
| Model | TEN 20-2413WIR |
| Depth | 10.2mm |
| Mount Type | PCB |
| Series | TEN 20WIR |
| Maximum Operating Temperature | 85°C |
| Package Type | Metal case |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 36V dc |
| Protection | Over voltage (on single output models), under voltage lockout and short circuit |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 1.33A |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 1:6 |
| Ultra wide 4 | 1 input voltage range of up to 160 Vdc |
| Input Ratio 1 | 6 |
| DC/DC converter,12-36Vin,15Vo 1.33A,20WBrand | Recom |
Key Features
- Designed for a wide input voltage range from 9V to 36V dc.
- Compact 2 inch x 1 inch PCB mount metal case for efficient space usage.
- High efficiency up to 88% ensures low power loss during operation.
- Operating temperature range from -40°C to 85°C suitable for harsh industrial environments.
- Isolation voltage of 1.5kV dc provides safety and noise reduction.
- Meets EN 50155 standards suitable for railway and transportation applications.
- Offers protection including over voltage, under voltage lockout, and short circuit to enhance reliability.
- MTBF of 700,000 hours indicates robust durability.
Product Description
TRACOPOWER TEN 20-2413WIR DC/DC Converter is a 20W single output regulated and isolated power supply designed for demanding industrial, railway, transportation, telecom, and control system applications. It features a 15V dc output voltage rated at 1.33 A and supports a wide input voltage range of 9V to 36V dc. Packaged in a compact 2 inch by 1 inch PCB mount metal case, it offers a high efficiency of up to 88% with low power loss.
Designed for rugged environments, this converter operates reliably over a temperature range from -40°C minimum to 85°C maximum. It has an isolation voltage of 1.5kV dc for safety and noise immunity. The device includes built-in protections such as over voltage (on single output models), under voltage lockout, and short circuit protection to ensure stable and safe operation.
This model has an MTBF of 700,000 hours, assuring durability and long-term reliability. It complies with EN 50155 standards making it ideal for railway and transportation industry use cases. Additional certifications include thermal shock and vibration resistance per EN 61373. The metal casing adds mechanical protection and assists in heat dissipation.
Wide 4:1 input voltage range suitable for varying power sources. Adjustable output voltage and no minimum load requirements allow flexible use. Remote On/Off control capability for convenient integration into systems. Low input current at minimal load makes it suitable for battery-powered devices.
EMC compliance to EN 55022 class B is achieved without external components, enhancing signal integrity.
Commonly deployed in industrial automation, telecommunication, railway electronics, measurement instruments, and other applications requiring compact, efficient, and reliable DC power conversion modules.
Country of Origin: Taiwan, Province Of China. Explore more DC/DC Converters and power supply solutions at EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TRACOPOWER TEN 20-2413WIR provides a 15V dc output voltage with a maximum output current of 1.33A.
It supports a wide input voltage range from 9V to 36V dc.
This model has an efficiency of up to 88%, ensuring low power loss during operation.
The dimensions of this converter are 50.8mm in length and 10.2mm in depth, packaged in a compact metal case.
It operates reliably within a temperature range from -40°C to 85°C, suitable for harsh industrial environments.
It includes over voltage protection, under voltage lockout, and short circuit protection to enhance reliability.
The isolation voltage is rated at 1.5kV dc, providing safety and noise reduction.
This converter is designed for demanding industrial, railway, transportation, telecom, and control system applications.
The mean time between failures (MTBF) is rated at 700,000 hours, indicating robust durability.
Yes, it meets EN 50155 standards, making it suitable for railway and transportation applications.
It is designed for PCB mounting, allowing for efficient space usage in various applications.
This model comes in a metal case, which provides mechanical protection and assists in heat dissipation.
