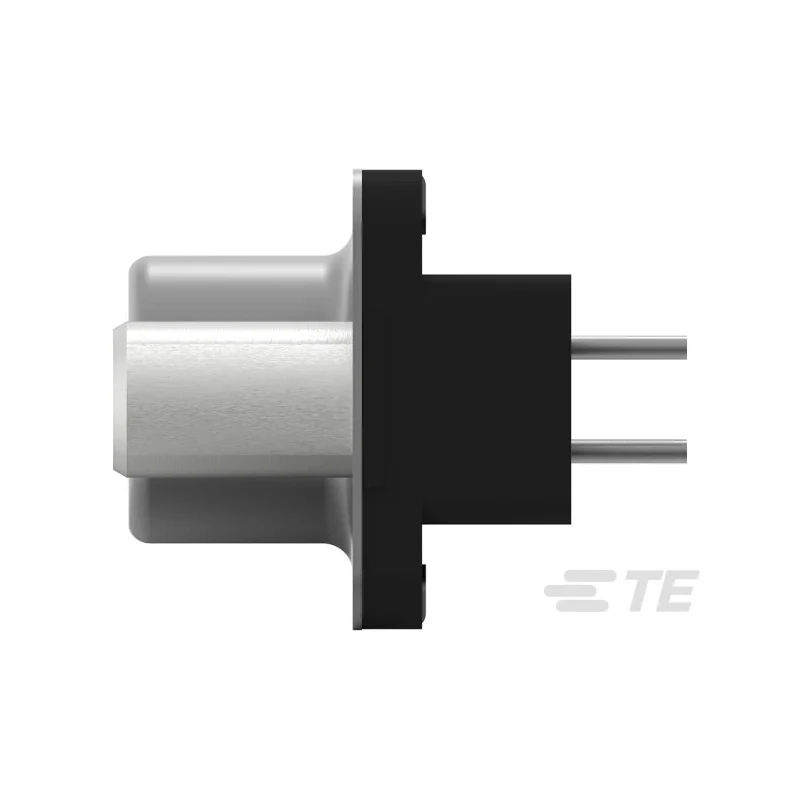

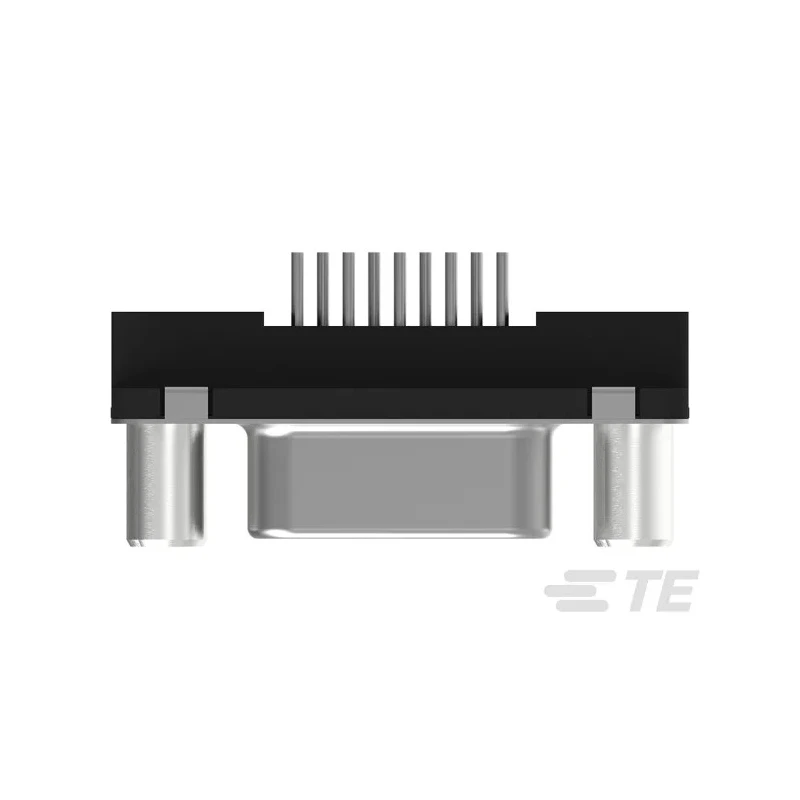

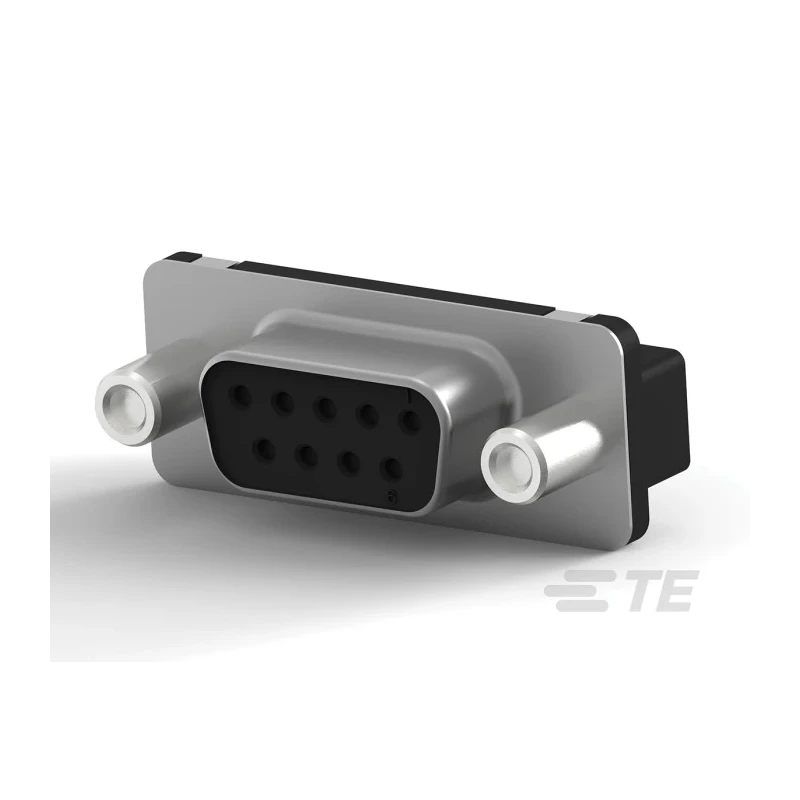

TE Connectivity AMPLIMITE HD-20 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector 1-5747150-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 6A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 4 to 40 Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Standards/Approvals | UL-94V-0, RoHS |
| Contact Plating | Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Size | 20 |
| Connector Type D | D-Sub |
Key Features
- The connector features a straight orientation suitable for through hole mounting.
- It has 9 female contacts, each with a phosphor bronze contact material and nickel plating for durability.
- The housing is made of flame retardant polyester, ensuring a high level of safety and compliance with UL-94V-0 and RoHS standards.
- Operating temperature range is broad, from -55°C to 105°C, suitable for harsh environments.
- The connector supports a maximum current rating of 6A.
- Termination type is solder, providing secure electrical connections.
- Mounting hardware includes 4 to 40 threaded inserts for firm fixture.
- Ideal for industrial machinery, medical instrumentation, computers, storage arrays, and communications equipment.
Product Description
TE Connectivity 1-5747150-3 AMPLIMITE HD-20 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector is engineered for precise and durable signal transmission in a wide range of industrial and electronic applications.
The connector’s female contacts are made from phosphor bronze and plated with nickel, ensuring excellent conductivity and corrosion resistance. The polyester housing material provides flame retardancy and mechanical stability, compliant with UL-94V-0 and RoHS directives.
Its straight orientation and through hole mount type allow for straightforward PCB integration, supported by robust 4 to 40 threaded inserts. The connector operates reliably across a temperature range of -55°C to 105°C, making it suitable for harsh operating conditions.
With a 2.74 mm pitch and 9 contact positions, it handles currents up to 6A, ensuring reliable electrical performance for sensitive and high-density electronics.
This product is commonly used in industrial machinery, medical devices, computer peripherals, RAID storage arrays, file servers, routers, tape storage systems, workstations, and on-machine industrial communication systems.
The connector features a straight orientation suitable for through hole mounting. It has 9 female contacts, each with a phosphor bronze contact material and nickel plating for durability. The housing is made of flame retardant polyester, ensuring a high level of safety and compliance with UL-94V-0 and RoHS standards.
Operating temperature range is broad, from -55°C to 105°C, suitable for harsh environments. The connector supports a maximum current rating of 6A. Termination type is solder, providing secure electrical connections. Mounting hardware includes 4 to 40 threaded inserts for firm fixture.
Ideal for industrial machinery, medical instrumentation, computers, storage arrays, and communications equipment. This AMPLIMITE HD-20 series connector offers versatile and reliable performance for various demanding electronic configurations.
Explore advanced electronic and industrial connectors at EnvMart for dependable and precision connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector is 6A.
It operates within a temperature range of -55°C to 105°C, making it suitable for harsh environments.
The contacts are made from phosphor bronze with nickel plating, while the housing is constructed from flame retardant polyester.
This model features a through hole mount type, supported by 4 to 40 threaded inserts for secure installation.
The pitch size of this connector is 2.74 mm.
This connector has 9 female contacts.
The termination type for this connector is solder, providing secure electrical connections.
It complies with UL-94V-0 and RoHS standards, ensuring safety and environmental compliance.
It is commonly used in industrial machinery, medical instrumentation, computers, storage arrays, and communications equipment.
The connector gender of this model is female.
The country of origin for this connector is India.
The contact size for this connector is 20.
