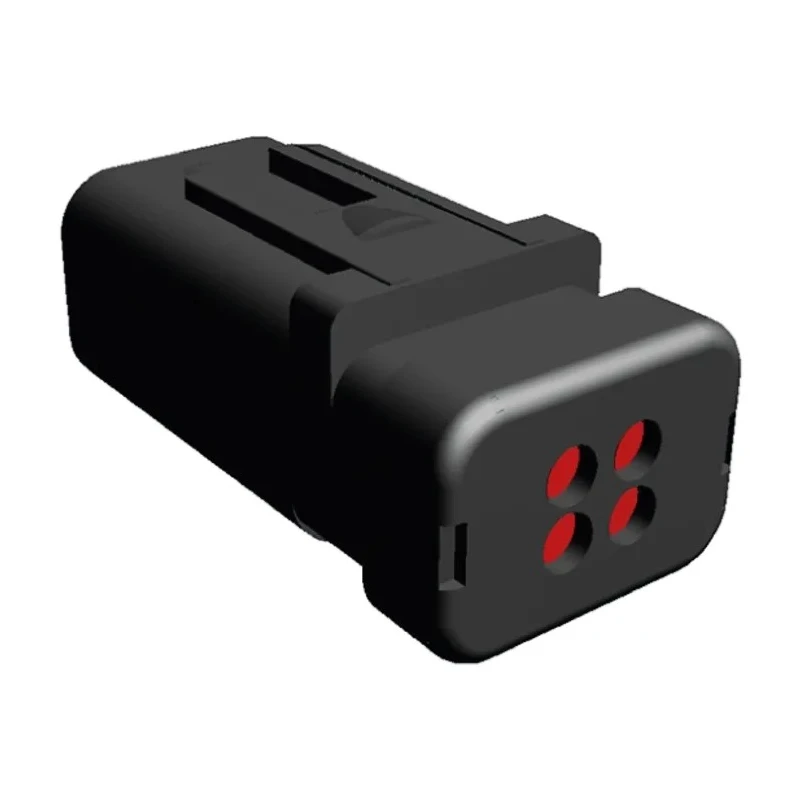

TE Connectivity AMPSEAL 16 Automotive Connector Male Red Clip 4 Way Crimp Termination 776536-1

TE Connectivity 776536-1 AMPSEAL 16 Automotive Connector Male Red Clip 4 Way Crimp Termination is engineered for demanding automotive electrical systems requiring sealed and reliable connections. This connector is part of the AMPSEAL 16 series that provides sealed pin housings with reduced diameter wire seals to enhance connectivity resilience.

The connector housing features integral primary latch reinforcement with colour coding and physical keying to prevent mismating in complex wiring harnesses. Designed for crimp termination, it accepts wire sizes ranging from 1.30 to 2.54 mm, ensuring compatibility with various automotive wiring gauges.

The robust fibreglass reinforced polybutylene terephthalate housing material provides high strength and thermal resistance, with operational temperatures from -40°C to 125°C. The male connector includes 4 contacts arranged in 2 rows and is mounted by clip, providing secure mechanical retention and electrical reliability under vibration and harsh environments.

With an IP67 rating, this connector offers excellent protection against dust ingress and water immersion, suitable for engine compartments and other exposed areas in vehicles. Its compact size (22.45mm height, 24.6mm width, 47.55mm depth) enables space-efficient harness designs.

The AMPSEAL 16 series connectors are widely used in automotive, industrial machinery, and commercial vehicle electrical systems where dependable sealed electrical connections are essential. Compatible accessories include receptacle plug housings and backshells for complete wiring solutions.

Includes 4 contacts designed for automotive use. Features a male connector with clip mounting type for secure installation. Crimp termination ensures robust and lasting wire connections. Supports current rating of 13A suitable for power distribution.

Constructed from fibreglass reinforced polybutylene terephthalate housing material. Color-coded red for easy identification and mating. IP67 rated offering excellent protection against dust and water ingress. Operates in temperature range from -40°C to 125°C ensuring durability.

Compact dimensions with height 22.45mm, width 24.6mm, and depth 47.55mm. Designed with 2 rows of contacts and series AMPSEAL 16 compatibility. Explore EnvMart's range of Automotive Connectors by TE Connectivity for trusted industrial and vehicle electrical applications.
