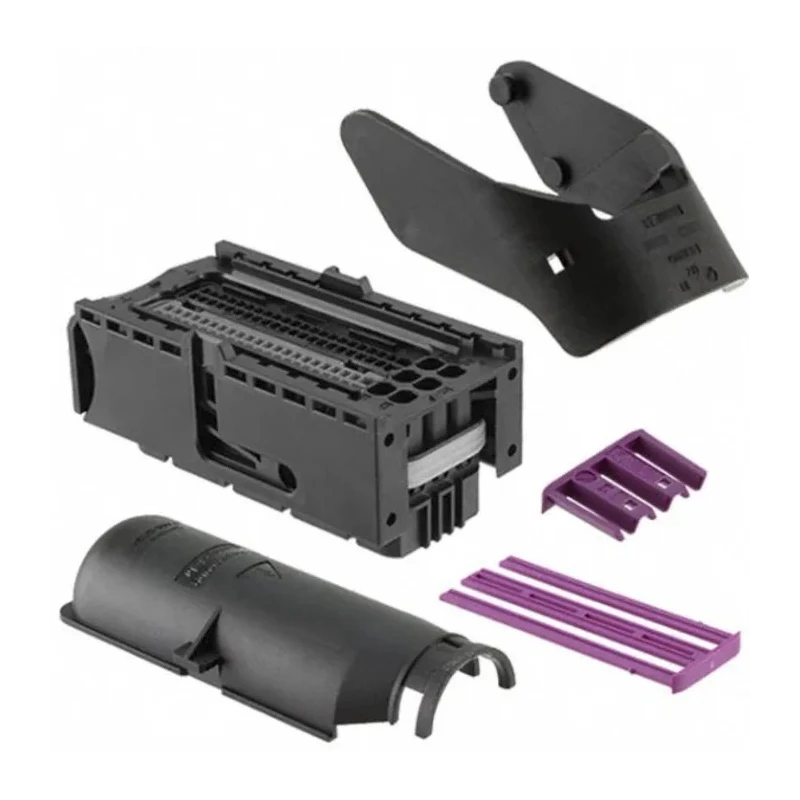

TE Connectivity Micro Quadlok System Automotive Connector Female Black Purple Cable 94 Way Crimp Termination 3-1534904-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black, Purple |
| Height | 29mm |
| Depth | 42mm |
| Width | 80.1mm |
| Gender | Female |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 120°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 4 |
| Standards/Approvals | RoHS |
| Number of Contacts | 94 |
| • Pitch | 2.54mm |
Key Features
- Compatible with Micro Quadlok System series for robust automotive applications.
- Female connector with 94 contacts arranged in 4 rows for enhanced connectivity.
- Crimp termination ensures secure and reliable electrical connections.
- Operates in temperature range from -40°C to 120°C for demanding environments.
- Housing made of fibreglass reinforced polybutylene terephthalate for durability.
- Polarized and keyed to prevent incorrect mating and ensure safety.
- Sealed versions available for waterproofing, suitable for harsh conditions.
- Suitable for automotive powertrain, safety, driver information, and chassis systems.
Product Description
TE Connectivity 3-1534904-4 Micro Quadlok System Automotive Connector Female is designed for automotive electrical applications requiring high-density connections with compact and durable housings.
The MQS series offers a 2.54 mm pitch system with 94 female contacts in a 4-row configuration. This connector provides crimp termination for secure and efficient cable assembly in automotive wiring harnesses.
Constructed from fibreglass reinforced polybutylene terephthalate, the housing material ensures mechanical stability and resistance to automotive environmental conditions. The connector supports operating temperatures from -40°C up to 120°C and complies with RoHS directives ensuring environmental compliance.
Its design includes polarization and keying features to prevent mismating, increasing connection reliability and safety in vehicle systems. The compact size with dimensions 80.1mm (W) x 42mm (D) x 29mm (H) enables integration in confined spaces within automotive assemblies.
This product is ideal for automotive powertrain systems, safety and security controls, convenience electronics, driver information systems, and body and chassis electronics, meeting the high performance requirements of modern vehicles.
Compatible with Micro Quadlok System series for robust automotive applications. Female connector with 94 contacts arranged in 4 rows for enhanced connectivity. Crimp termination ensures secure and reliable electrical connections.
Operates in temperature range from -40°C to 120°C for demanding environments. Housing made of fibreglass reinforced polybutylene terephthalate for durability. Dimensions 80.1mm width, 42mm depth, and 29mm height for compact installation.
Polarized and keyed to prevent incorrect mating and ensure safety. Sealed versions available for waterproofing, suitable for harsh conditions. Suitable for automotive powertrain, safety, driver information, and chassis systems.
EnvMart offers this high quality Automotive Connector from TE Connectivity, perfect for professionals and manufacturers seeking reliable and certified automotive electrical connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 94 contacts arranged in a 4-row configuration.
It operates within a temperature range of -40°C to 120°C, suitable for demanding automotive environments.
The housing is made of fibreglass reinforced polybutylene terephthalate, ensuring mechanical stability and resistance to environmental conditions.
It uses crimp termination for secure and reliable electrical connections.
The dimensions are 80.1mm in width, 42mm in depth, and 29mm in height, allowing for compact installation.
Yes, it is polarized and keyed to prevent incorrect mating, enhancing connection reliability and safety.
Yes, it complies with RoHS directives, ensuring environmental compliance.
This connector is suitable for automotive powertrain systems, safety controls, driver information systems, and chassis electronics.
The pitch of the contacts is 2.54mm, which is standard for high-density connections.
Yes, sealed versions are available for waterproofing, making them suitable for harsh conditions.
This connector is a female type, designed for use in automotive applications.
The country of origin for this connector is India.
