MEAN WELL IP67 Rated 1 Output 12V 102W 8.5A Constant Voltage LED Driver

Free Delivery in India | Lowest Global Shipping Charges

MEAN WELL IP67 Rated 1 Output 12V 102W 8.5A Constant Voltage LED Driver

Name: MEAN WELL IP67 Rated 1 Output 12V 102W 8.5A Constant Voltage LED Driver
Brand: MEAN WELL
SKU: 103425



Category LED Driver Brand MEAN WELL Condition New

Specifications

Country of Origin	India
Brand	MEAN WELL
Model	IP67
IP Rating	IP67
Mount Type	Panel
Series	LPV-100
Configuration	Encapsulated
Sub Type	LED Driver
Operating Modes	Constant Voltage
Number of outputs	1
Terminal type	Wire
Maximum Output Power	102W
Input Voltage	264, 90, 127, 370V ac
Output Voltage	12V
Power Dissipation	102W
Standards/Approvals	TUV, EN, CE
Primary Type	AC-DC
Driver Current	8.5A

Key Features

Encapsulated IP67 rated housing ensures waterproof and dustproof operation.
Supports wide input voltage range from 90V to 370V AC for flexibility.
Designed for indoor and outdoor LED lighting and moving sign applications.
Includes short circuit, over-current, and over-voltage protection for safety.
Complies with EN 55022 Class B EMC and harmonic current standards EN 61000-3-2 and -3.
Features 300mm un-terminated 18AWG input and 14AWG output leads for easy installation.
High efficiency and long-life operation with 100% full load burn-in testing.
Withstands surge inputs up to 300Vac for 5 seconds without damage.

Product Description

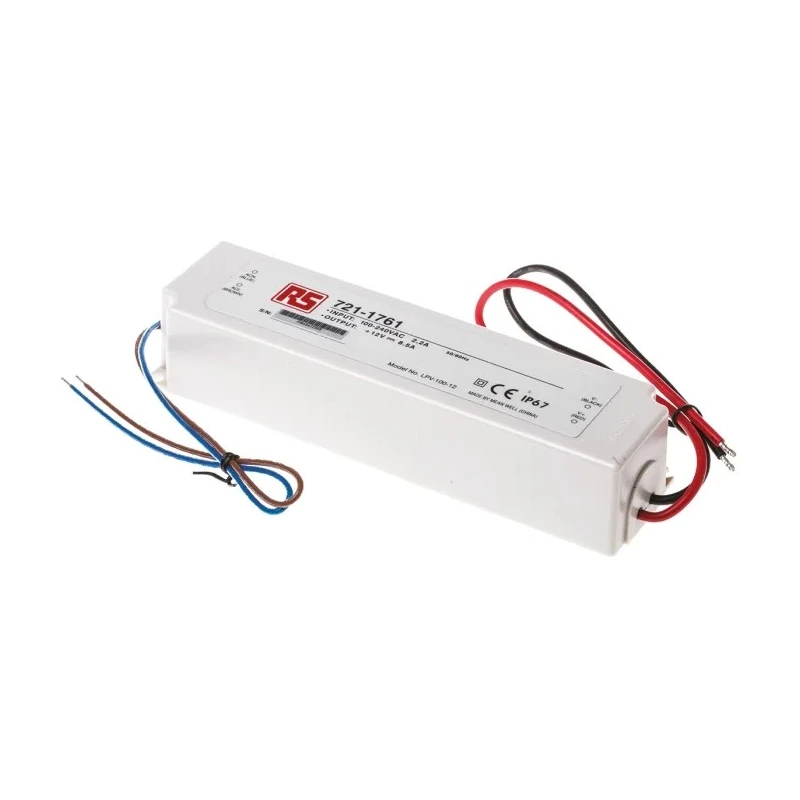

MEAN WELL LPV-100-12 is a high-performance, IP67 rated LED driver delivering a constant 12V output at 102W and 8.5A current, suitable for demanding LED lighting applications.

The encapsulated IP67 housing protects against dust and water ingress, making it ideal for both indoor and outdoor installations, including moving signboards and architectural lighting.

This driver supports a wide AC input voltage range (90 to 370V) and performs reliably in harsh industrial environments. Safety features include comprehensive protections against short circuits, over-current, and over-voltage conditions, ensuring stable operation and enhanced longevity.

Manufactured with high quality standards, it passes 100% full load burn-in testing and complies with EMC standards (EN 55022 Class B) and harmonic current regulations (EN 61000-3-2, -3).

The product includes 300mm long, un-terminated 18AWG input leads and 14AWG output leads, facilitating straightforward panel mounting and wiring. The LED driver can withstand surge voltages of up to 300Vac for five seconds without sustaining damage.

Encapsulated IP67 rated waterproof and dustproof design. Wide input voltage range from 90 to 370V AC. Constant voltage output suitable for LED lighting applications. Comprehensive short circuit, over-current, and over-voltage protections.

Designed for indoor and outdoor LED lighting and moving signage. Complies with TUV, EN, CE standards. Includes long un-terminated input and output wiring for ease of installation. 100% full load burn-in test and high reliability.

This LED driver is intended for industrial and commercial use, particularly in lighting, signage, and architectural illumination sectors. Explore further LED Drivers and power supply solutions in the Electronics & Electricals category on EnvMart for your industrial and commercial lighting projects.
