Process Digital pH Probe HI1000 Series PTFE Flat Tip RS485 Low Temperature – EnvMart

Free Delivery in India | Lowest Global Shipping Charges

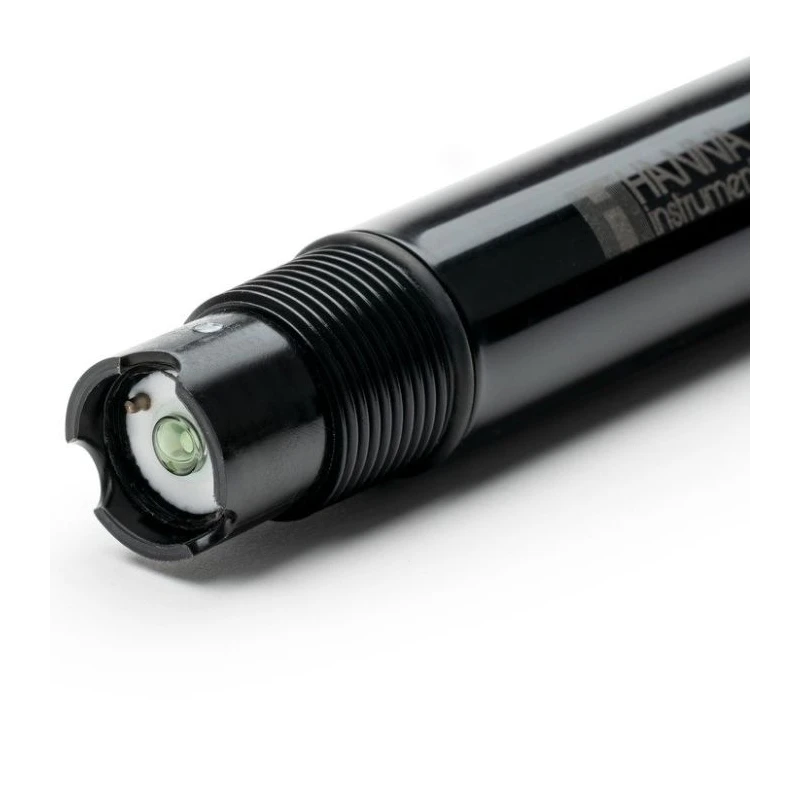

Hanna HI1000 Series Process Digital pH Probe-5m (16.4')-LT - Low Temperature-PTFE

Name: Hanna HI1000 Series Process Digital pH Probe-5m (16.4')-LT - Low Temperature-PTFE
Brand: Hanna
SKU: 72336
Price: 486.2 USD
Availability: InStock



Category pH Electrodes Brand Hanna

Specifications

Country of Origin	India
Measurement Range	0 to 12 (LT glass), 0 to 14 (HT glass), 0 to 10 (HF glass) pH
Body Material	PVDF
Operating Temperature	-5 to 80°C (LT glass)
Mounting	3/4 in. NPT threaded connection
Environment	Process and laboratory applications
Outer Diameter	22.5 mm
Model	HI1000 Series
Cable Length	5 m
Temperature Sensor	Pt100
Max. Pressure	6 bar
Connector Type	Direct wire connection
Reference Cell Type	Double Junction
Type of Electrolyte	polymer
Tip / Shape	flat
Glass Type	LT (low temperature)
Probe type	Digital pH Probe
Product Condition	New
MPN	HI1000 Series
Body Length / Overall Length	140 mm
Reference Junction	PTFE

Key Features

HI1000 Series process digital pH probe with PTFE junction, flat tip, PVDF body, built-in PT100 temperature sensor, and 5 m cable for low temperature applications.

Features a robust PVDF body with chemical resistance for harsh environments.
Includes a PTFE reference junction for improved durability in demanding processes.
Equipped with a flat tip for reliable pH measurement and ease of cleaning.
Measures low temperature samples from -5 to 80°C with specialized LT glass.
Comes with a built-in PT100 temperature sensor for automatic compensation.
Operates in a measurement range of 0 to 12 pH for LT glass applications.
Direct RS485 digital signal output ensures immunity to electrical interferences.
Mounting via 3/4" NPT threaded connection for in-line or submersion installation.
Supports max pressure up to 6 bar (87 psi) for industrial and laboratory use.

Product Description

The HI1000 Series process digital pH probe is engineered for industrial and laboratory applications requiring precise pH measurement and control. This model features a chemically resistant PVDF body with a durable PTFE reference junction, making it highly suitable for aggressive chemical environments. With a body length of 140 mm and flat tip design, the probe is easy to clean and maintain, improving performance in process applications.

The probe integrates a built-in PT100 temperature sensor, ensuring highly accurate, temperature-compensated measurements. The digital RS485 output provides reliable data communication with immunity against electrical noise, ideal for integration with the HI510 Universal Process Controller and other industrial monitoring systems.

Chemically resistant PVDF body construction.
PTFE junction for enhanced resistance to chemical fouling.
Flat tip glass electrode designed for low temperature (LT) applications (-5 to 80°C).
Direct wire connection, 5 m cable included for flexible installation.
Double junction reference cell type with polymer electrolyte for reduced contamination.
Measurement range: 0 to 12 pH (LT glass), with additional configurations for HT and HF glass versions.
Maximum operating pressure: 6 bar (87 psi).

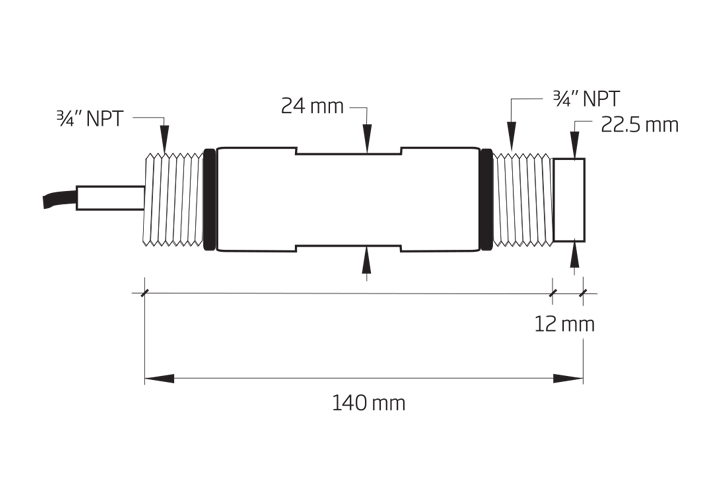

22.5 mm outer diameter, 3/4" NPT threaded connection for easy mounting.
Digital output via RS485 protocol for accurate data transfer in process environments.

This HI1000 Series digital pH probe is widely used in water treatment, chemical processing, laboratory, and manufacturing sectors. Its robust construction and advanced features make it ideal for routine process monitoring as well as demanding industrial use cases.
