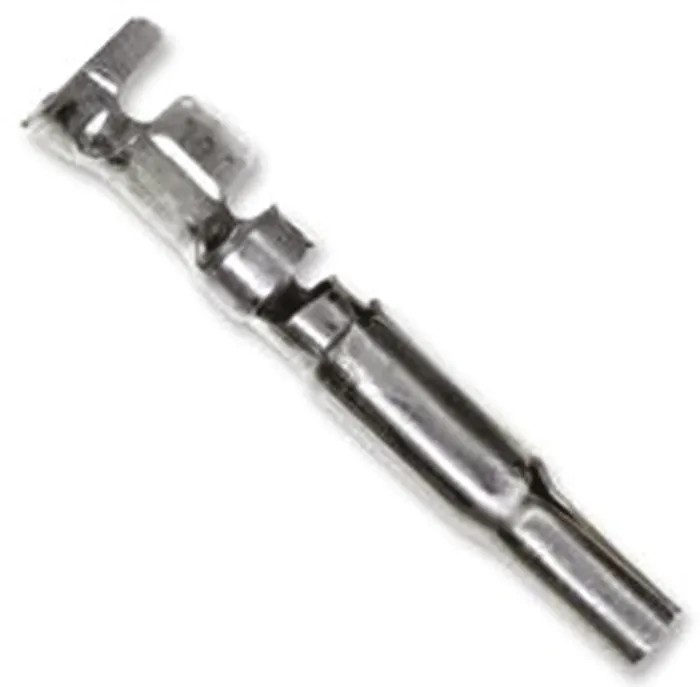

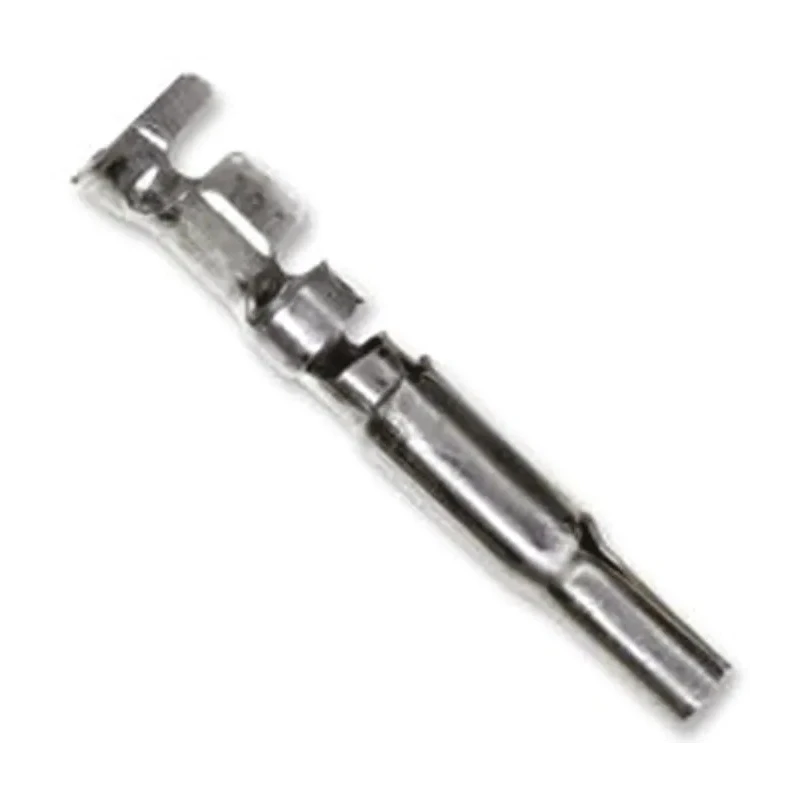

TE Connectivity Universal MATE-N-LOK Series Female Crimp Terminal 19A 20-14 AWG Gold Plated Brass 350536-2

TE Connectivity 350536-2 Universal MATE-N-LOK Series Female Crimp Terminal is a precision-engineered component specifically designed for electronic component assemblies requiring efficient and secure wire termination. Constructed from high-quality brass with gold plating, this crimp terminal provides excellent conductivity and resistance to corrosion, ensuring long-lasting performance in a wide range of industrial, commercial, and consumer applications.

The female contact is compatible with Universal MATE-N-LOK connector housings and supports wire sizes from 20 AWG (0.5 mm²) to 14 AWG (2 mm²), accommodating diverse wiring requirements. It can handle a maximum current of 19 amps and maintains a low maximum contact resistance of just 6 milliohms. Operating temperature range spans from -55°C to 105°C, making it suitable for harsh environments.

This crimp terminal features a straight contact orientation and is terminated via a crimping process, facilitating easy and reliable connections in PCB connectors and wire housing assemblies. It measures 22.23 mm in length, allowing for compact electronic design integration.

Common use cases for the TE Connectivity Universal MATE-N-LOK contacts include consumer electronics, HVAC systems, commercial machinery, and power supply connections. These connectors facilitate secure and efficient electrical conduction within printed circuit board systems and wiring harnesses.

This female Crimp Terminal supports a maximum current of 19 amps for efficient electrical conduction. Constructed from brass with gold plating to ensure corrosion resistance and low contact resistance. Suitable for use with Universal MATE-N-LOK connector housings, providing secure and stable connections.

Features straight contact orientation and crimp termination type for ease of assembly. Operates reliably within a temperature range of -55°C to 105°C. Its compact 22.23 mm length facilitates use in tight electronic component assemblies.

Ideal for applications in consumer electronics, HVAC, commercial equipment, and power supplies. Provides low maximum contact resistance of 6 milliohms for optimal performance. Compatible with wires sized from 0.5 mm² to 2 mm².

Contacts conform to no specific standards approvals but deliver dependable electrical performance. Explore the wide range of TE Connectivity connectors and components available through EnvMart for your electronic and electrical assembly needs.
