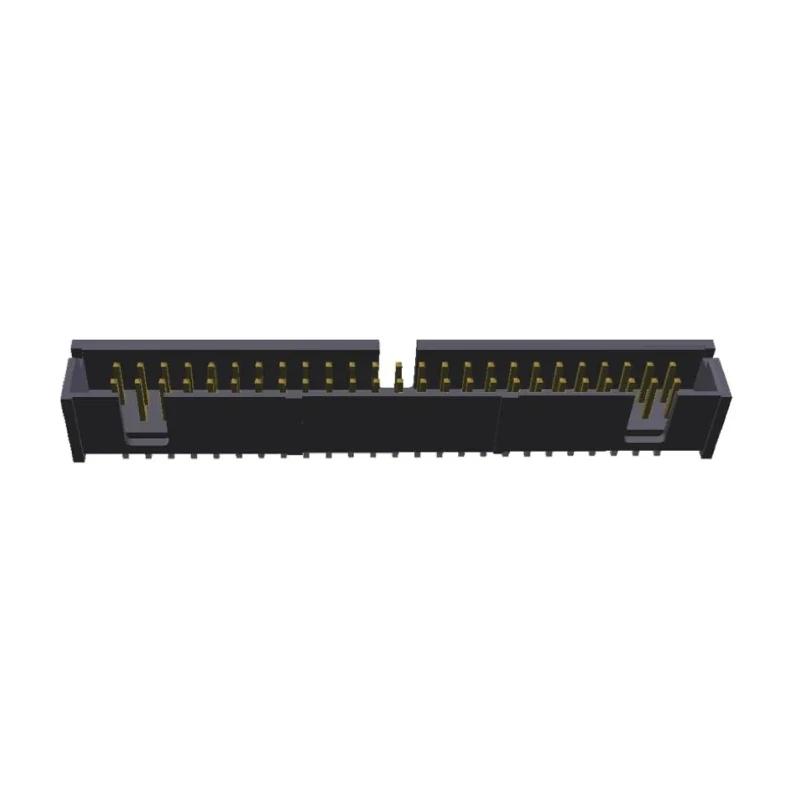

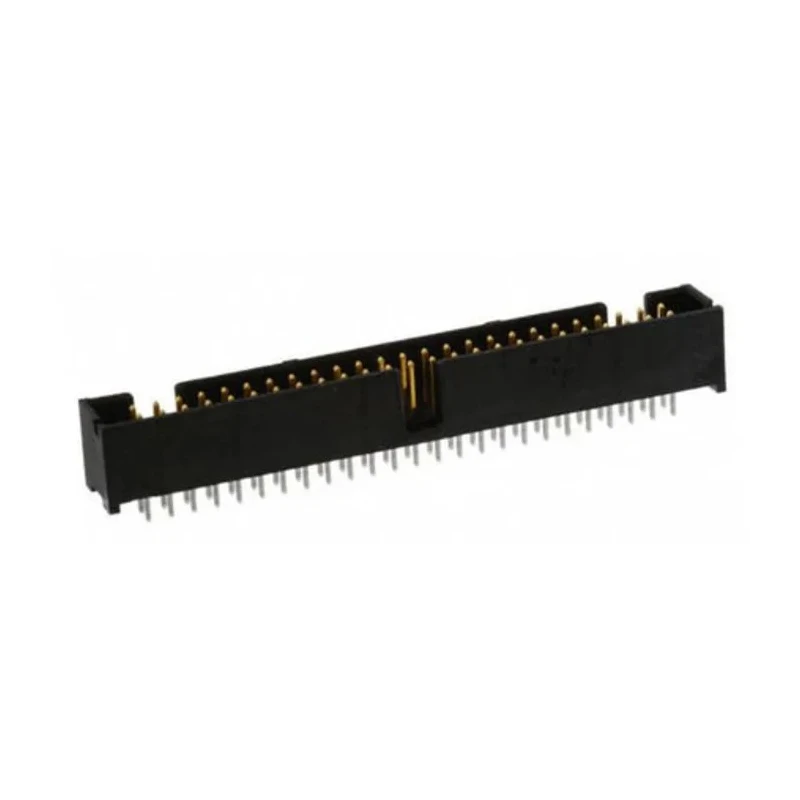

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 50 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 1-103309-0

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 50 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 1-103309-0

Name: TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header, 50 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 1-103309-0
Brand: TE Connectivity
SKU: 103229
Price: 7.74 USD
Availability: InStock



Category PCB Header Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Orientation	Straight
Current	1A
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Series	AMP-LATCH
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-65°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	50
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Provides a low profile design with AMP-LATCH series center and dual polarization slots.
Manufactured with flame retardant 94V-0 rated thermoplastic housing for safety.
Board standoffs incorporated to facilitate excess flux removal from PCB during soldering.
Kinked solder tails available for improved mechanical stability on the PCB.
Rated for 1 amp current, designed for reliable wire-to-board connection.
Contacts made from copper alloy with gold plating for enhanced conductivity and corrosion resistance.
Suitable operating temperature range from -65°C to 105°C for various industrial uses.
Shrouded male contacts ensure secure and accurate mating with mating connectors.

Product Description

TE Connectivity 1-103309-0 AMP-LATCH Series Straight Through Hole PCB Header is a professional grade electronic component designed for secure wire-to-board connections. Featuring 50 gold-plated contacts arranged in 2 rows with a precise 2.54 mm pitch, this shrouded male header uses flame retardant 94V-0 thermoplastic housing to enhance safety and durability.

The low profile design incorporates center and dual polarization slots, ensuring accurate and reliable mating with IDC ribbon cable connectors. Board standoffs allow for efficient removal of soldering flux residues, protecting solder joints and improving assembly quality. Kinked solder tails available on some versions provide additional mechanical stability and prevent damage from vibration or mechanical stress.

Rated to carry a current of 1 amp and capable of operating within a temperature range of -65°C to 105°C, this PCB header is engineered to withstand demanding industrial environments. The copper alloy contacts with gold plating deliver excellent conductivity and resistance to corrosion.

This AMP-LATCH PCB header finds applications across multiple industries including computing, business equipment, medical devices, industrial automation, networking systems, storage hardware, appliances, and electrical testing equipment.

Provides a low profile design with AMP-LATCH series center and dual polarization slots. Manufactured with flame retardant 94V-0 rated thermoplastic housing for safety. Board standoffs incorporated to facilitate excess flux removal from PCB during soldering.

Kinked solder tails available for improved mechanical stability on the PCB. Rated for 1 amp current, designed for reliable wire-to-board connection. Contacts made from copper alloy with gold plating for enhanced conductivity and corrosion resistance.

Suitable operating temperature range from -65°C to 105°C for various industrial uses. Shrouded male contacts ensure secure and accurate mating with mating connectors. Ideal for use in PCs, industrial controls, medical equipment, networking, storage, and electrical testing applications.

Explore and source quality PCB Headers from top manufacturers like TE Connectivity at EnvMart for your industrial electrical component needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This PCB header is rated for a current of 1 amp, making it suitable for reliable wire-to-board connections in various applications.

The contacts in this model are arranged with a pitch of 2.54 mm, which is standard for many PCB connections.

It operates within a temperature range of -65°C to 105°C, allowing it to function effectively in demanding industrial environments.

This model features 50 contacts, arranged in 2 rows, facilitating multiple connections on a single header.

It utilizes a through hole mounting type, which is common for secure PCB installations.

The housing is made from flame retardant 94V-0 rated thermoplastic, and the contacts are made from copper alloy with gold plating for enhanced conductivity and corrosion resistance.

Yes, this PCB header features shrouded male contacts, ensuring secure and accurate mating with compatible connectors.

The termination type for this model is solder, which is commonly used for secure electrical connections on PCBs.

This model is suitable for applications across multiple industries, including computing, medical devices, industrial automation, and networking systems.

Yes, it includes board standoffs designed to facilitate the removal of excess solder flux during assembly, improving solder joint quality.

This PCB header has a straight orientation, which is typical for many standard applications.

This model is manufactured in India, ensuring compliance with relevant manufacturing standards.
