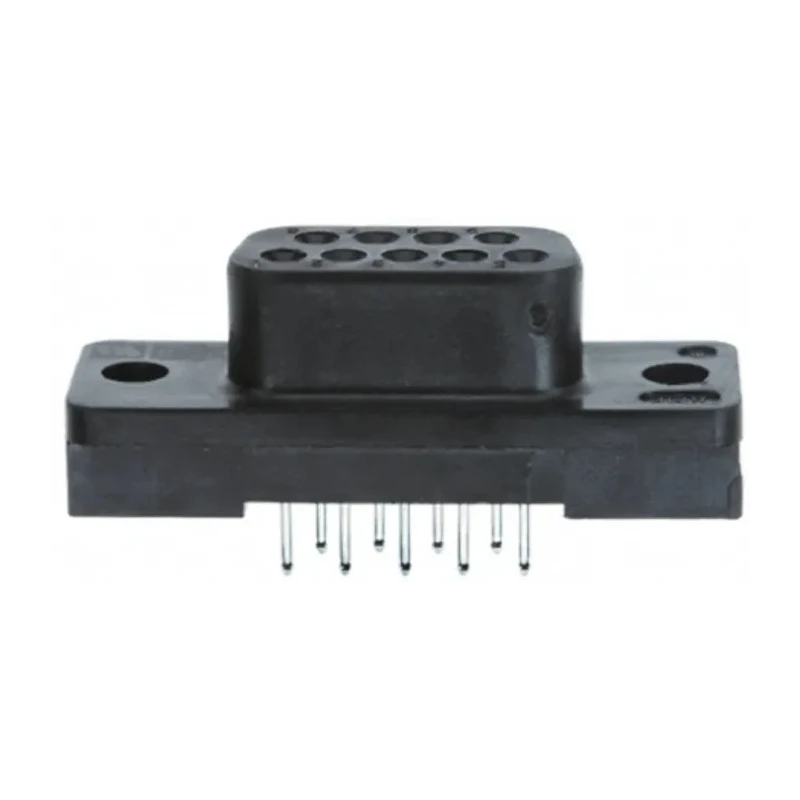

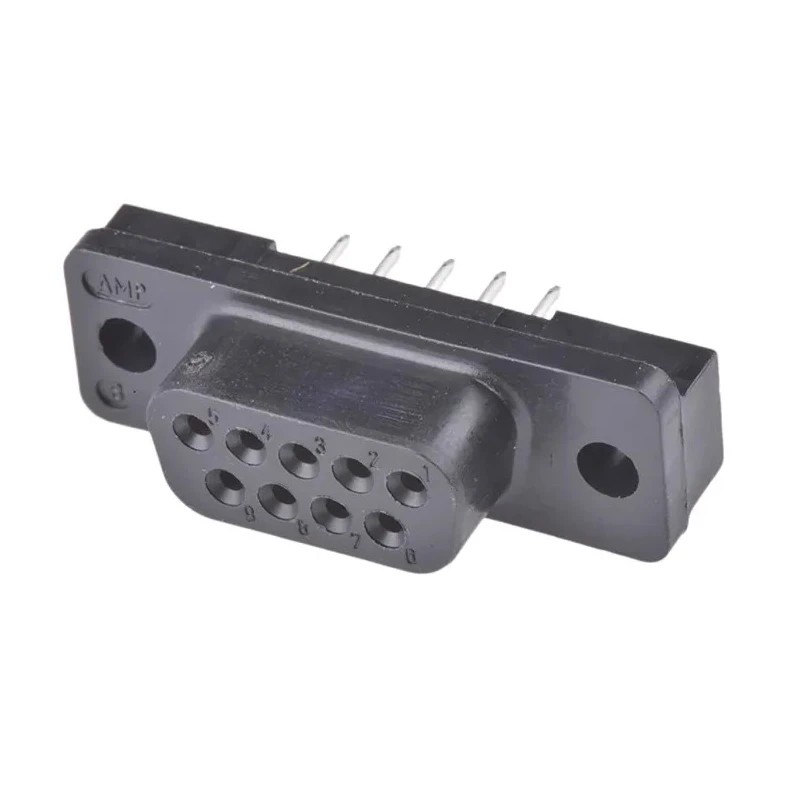

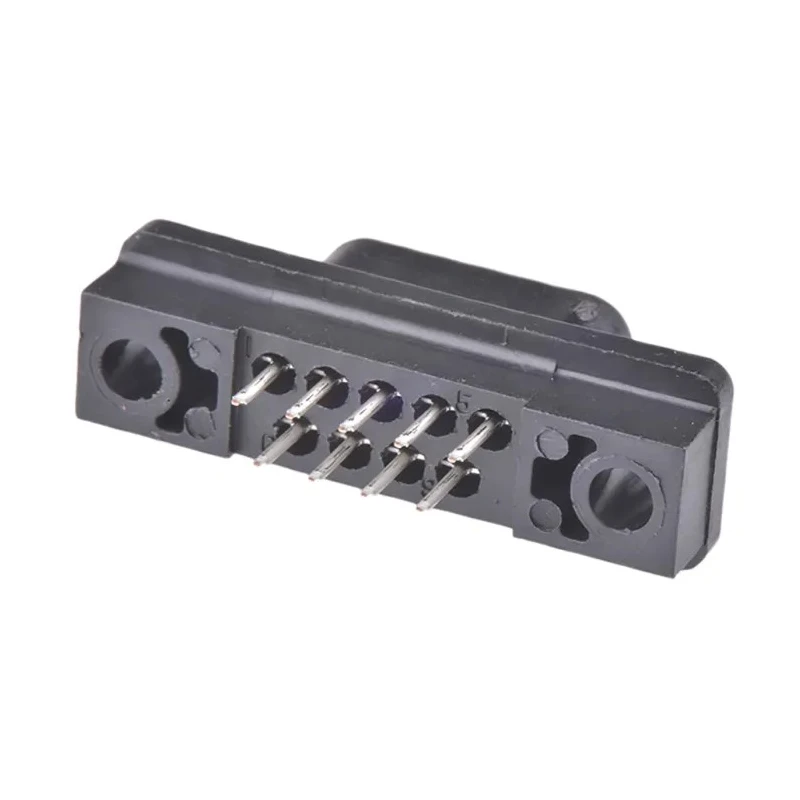

TE Connectivity AMPLIMITE HD-20 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector 5207826-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Mounting Hardware | 3.05 mm Mount Hole |
| Termination Type | Solder |
| Pitch | 2.74mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
Key Features
- The connector features a straight orientation for easy integration.
- It incorporates 9 female contacts made of phosphor bronze with gold over nickel plating.
- The housing is constructed of black thermoplastic material rated 94V-0 for durability and safety.
- Mounting hardware includes 3.05 mm diameter mount holes for secure PCB fixation.
- The connector uses solder termination type optimized for reliable electrical connections.
- It belongs to the AMPLIMITE HD-20 series well suited for demanding industrial and electronic applications.
- The 3.18 mm post length fits PCB thicknesses between 1.58 to 2.36 mm.
- No specific standards or approvals are declared for this product.
Product Description
TE Connectivity 5207826-4 AMPLIMITE HD-20 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector is a high-quality PCB mount electronic connector emphasizing durability and precision performance. Its black thermoplastic housing rated to UL 94V-0 standards provides excellent insulation and mechanical robustness for industrial and electronic equipment applications.
The connector incorporates nine female contacts composed of phosphor bronze, plated with gold over nickel for superior conductivity and corrosion resistance. Designed with straight orientation and solder termination, it enables efficient assembly and dependable electrical connection on printed circuit boards.
Mounting is facilitated by 3.05 mm diameter holes ensuring secure fixing onto the PCB substrate. The connector’s 3.18 mm posts accommodate PCB thicknesses from 1.58 to 2.36 mm, fitting a range of industrial manufacturing standards.
As part of the AMPLIMITE HD-20 series, this connector is engineered for demanding environments including industrial automation, manufacturing equipment, electronic instrumentation, and telecommunications hardware. It supports reliable data and signal transmission where high performance and durability are essential.
The connector features a straight orientation for easy integration. It incorporates 9 female contacts made of phosphor bronze with gold over nickel plating. The housing is constructed of black thermoplastic material rated 94V-0 for durability and safety.
Mounting hardware includes 3.05 mm diameter mount holes for secure PCB fixation. The connector uses solder termination type optimized for reliable electrical connections. It belongs to the AMPLIMITE HD-20 series well suited for demanding industrial and electronic applications.
The 3.18 mm post length fits PCB thicknesses between 1.58 to 2.36 mm. No specific standards or approvals are declared for this product. The product condition is new and designed for long-lasting performance.
This product is ideal for engineers and technicians requiring a reliable, precisely made D-Sub Connector with through hole mounting capabilities for printed circuit boards. Its robust design and high-quality materials ensure excellent performance in industrial and commercial electronic assemblies.
Explore more connectors and electronic components from EnvMart to complement your industrial manufacturing and electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 2.74 mm.
This model features 9 female contacts.
The contacts are made of phosphor bronze with gold over nickel plating, while the housing is constructed from thermoplastic material.
It uses a solder termination type for reliable electrical connections.
Mounting is facilitated by 3.05 mm diameter holes, which ensure secure fixation onto printed circuit boards.
The post length is 3.18 mm, accommodating PCB thicknesses between 1.58 mm and 2.36 mm.
This connector is part of the AMPLIMITE HD-20 series, designed for demanding industrial and electronic applications.
The connector features a straight orientation for easy integration.
The country of origin for this connector is India.
This model is a D-Sub connector with female gender contacts.
No specific standards or approvals are declared for this product.
It is well suited for industrial automation, manufacturing equipment, electronic instrumentation, and telecommunications hardware.
