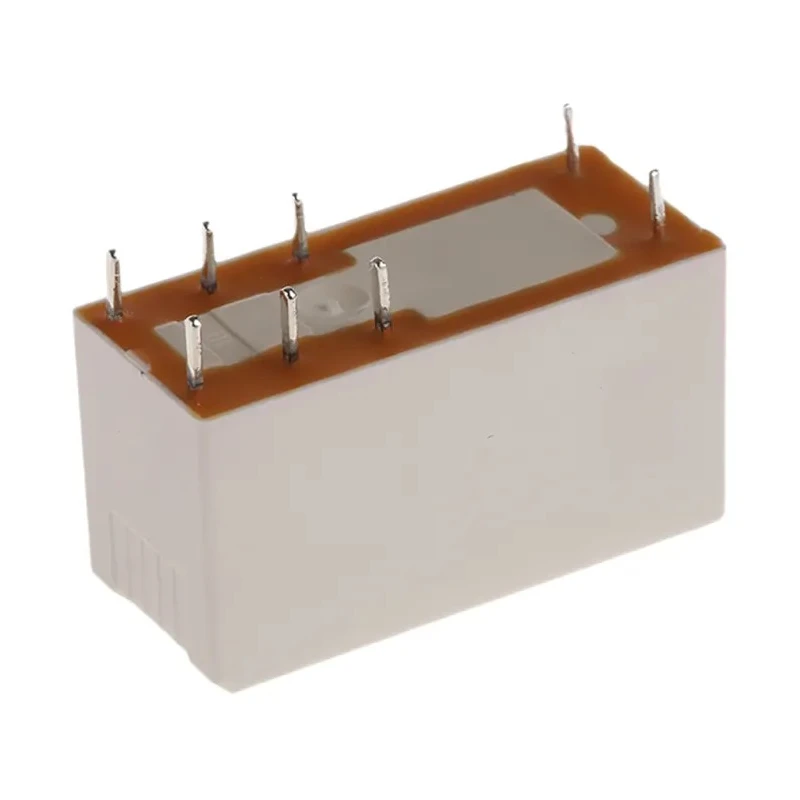

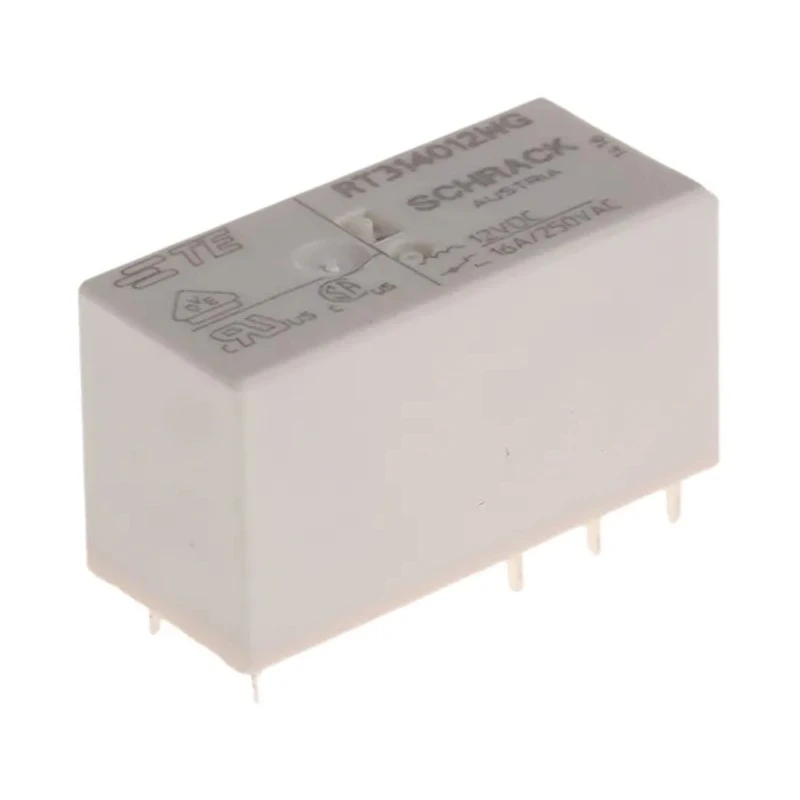

TE Connectivity PCB Power Relay 12V DC Coil 16A Switching Current SPDT 8-1415535-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Through Hole |
| Standards/Approvals | IEC, REACH, RoHS, UL, VDE |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Designed for through-hole PCB mounting with RT1 series specifications.
- Switching AC voltage rating of 400V AC ensures reliable operation.
- Coil resistance is 360 Ohms with power consumption of 400mW.
- Operates between -40°C to 85°C temperature range for versatile applications.
- Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width.
- Contact material consists of silver alloy for enhanced conductivity and durability.
- Complies with IEC, REACH, RoHS, UL, and VDE standards and approvals.
- Suitable for industrial, automation, interface, domestic, security lighting and heating systems.
Product Description
TE Connectivity 8-1415535-6 PCB Power Relay is a robust power relay with a 12V DC coil voltage and 16A switching current configured as SPDT. It is designed specifically for through-hole PCB mounting applications within the RT1 series that offers 3.5mm pinning and flux proof construction.
This relay supports an AC switching voltage up to 400V AC and features a coil resistance of 360 Ohms with low coil power consumption of 400mW, making it efficient for various electronic control circuits.
Operating temperature ranges from -40°C to 85°C, allowing reliable performance under diverse environmental conditions. Its compact form factor measuring 29mm by 15.7mm by 12.7mm facilitates use in space-constrained PCB layouts.
The contact material uses silver alloy technology to maintain excellent electrical conductivity and resistance to wear, ensuring a long service life. The product is compliant with international standards including IEC, REACH, RoHS, UL, and VDE, attesting to its safety and quality.
Applications include interfaces for automation systems, domestic electronics, security lighting controls, heating systems, and other industrial uses demanding stable power relay performance with PCB mounting capability.
Designed for through-hole PCB mounting with RT1 series specifications. Switching AC voltage rating of 400V AC ensures reliable operation. Coil resistance is 360 Ohms with power consumption of 400mW. Operates between -40°C to 85°C temperature range for versatile applications.
Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width. Contact material consists of silver alloy for enhanced conductivity and durability. Complies with IEC, REACH, RoHS, UL, and VDE standards and approvals.
Suitable for industrial, automation, interface, domestic, security lighting and heating systems. Explore EnvMart’s comprehensive selection of Power Relays for industrial and electrical applications with confidence in quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The switching current rating is 16A.
This model operates with a coil voltage of 12V DC.
It can switch AC voltage up to 400V AC.
The dimensions are 29mm in length, 15.7mm in height, and 12.7mm in width.
The coil resistance is 360 Ohms.
The coil power consumption is 400mW.
It operates within a temperature range of -40°C to 85°C.
This relay is designed for through-hole PCB mounting.
The contact material consists of silver alloy, enhancing conductivity.
It complies with IEC, REACH, RoHS, UL, and VDE standards and approvals.
The contact configuration is SPDT (Single Pole Double Throw).
It is suitable for industrial, automation, domestic electronics, security lighting, and heating systems.
