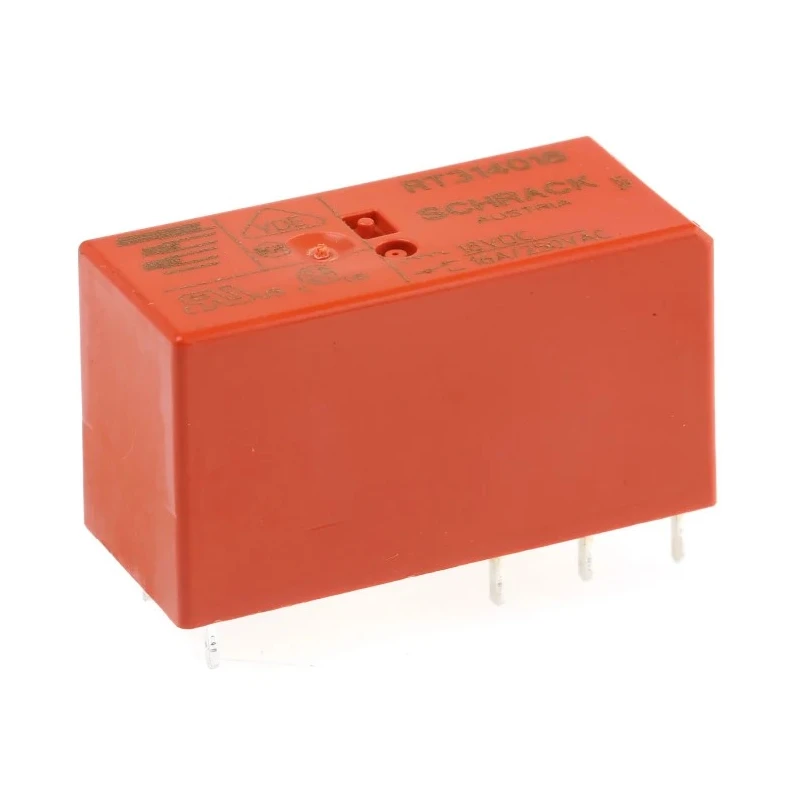

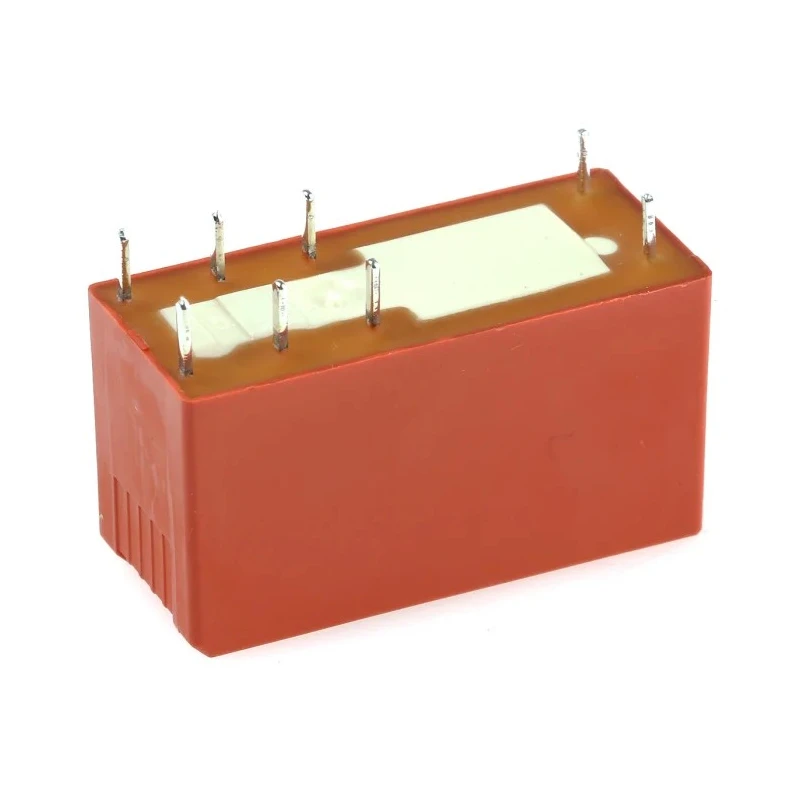

TE Connectivity PCB Power Relay 18V DC Coil 16A Switching Current SPDT RT314018
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314018 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, REACH, ELV, CSA, CQC, VDE, UL |
| Coil Resistance | 810Ω |
| Coil Voltage | 18V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Designed for PCB mounting with solder terminals for secure connections.
- Operating temperature range from -40°C to 85°C ensures reliability in various environments.
- Gold-plated contacts provide enhanced conductivity and durability.
- Switching AC voltage rating up to 400V AC suitable for multiple applications.
- Low coil power consumption of 400mW allows energy-efficient operation.
- Compliant with international standards including RoHS, REACH, CSA, VDE, and UL.
- Ideal for interface, automation, domestic applications, security lighting, and heating systems.
Product Description
TE Connectivity RT314018 is a high-quality PCB power relay designed for industrial and domestic automation applications. It features an 18V DC coil with a 16A switching current capacity and a SPDT contact configuration, providing versatile switching options for various electrical control systems.
The relay is designed for through-hole PCB mounting and uses solder terminals for reliable connectivity. Its gold-plated contacts ensure superior conductivity and long service life. The device operates efficiently with a coil power of only 400mW, helping to reduce energy consumption in automated systems.
With a robust operating temperature range from -40°C to 85°C, this relay is suited for use in harsh and demanding environments including security lighting and heating systems. The compact size of 29mm by 12.7mm by 15.7mm allows easy integration into dense PCB layouts.
The RT314018 complies with multiple international standards such as RoHS, REACH, ELV, CSA, CQC, VDE, and UL, ensuring safety, environmental compliance, and global acceptance.
Applications include interface control, automation, domestic electrical appliances, and security lighting. By implementing this relay, manufacturers and engineers can improve circuit reliability and maintain efficient power control.
Designed for PCB mounting with solder terminals for secure connections. Operating temperature range from -40°C to 85°C ensures reliability in various environments. Gold-plated contacts provide enhanced conductivity and durability.
Switching AC voltage rating up to 400V AC suitable for multiple applications. Low coil power consumption of 400mW allows energy-efficient operation. Compliant with international standards including RoHS, REACH, CSA, VDE, and UL.
Compact dimensions: 29mm length, 12.7mm width, and 15.7mm height for space-saving design. Ideal for interface, automation, domestic applications, security lighting, and heating systems. Explore the comprehensive range of Power Relays by TE Connectivity on EnvMart for reliable and efficient electrical switching solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 16A, making it suitable for various electrical control applications.
The coil voltage for this relay is 18V DC, which is required for its operation.
The relay has compact dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height, allowing for easy integration into PCB layouts.
It operates effectively within a temperature range of -40°C to 85°C, ensuring reliability in various environments.
The maximum switching AC voltage rating for this model is 400V AC, suitable for multiple applications.
This relay features a Single Pole Double Throw (SPDT) contact configuration, providing versatile switching options.
It is designed for PCB mounting and uses solder terminals for secure connections.
The coil power consumption is 400mW, which allows for energy-efficient operation.
The contacts are made of gold-plated material, which enhances conductivity and durability.
This relay complies with several international standards, including RoHS, REACH, CSA, VDE, and UL, ensuring safety and environmental compliance.
It is ideal for interface control, automation, domestic electrical appliances, security lighting, and heating systems.
The coil resistance for this model is 810Ω, which is an important specification for its operation.
