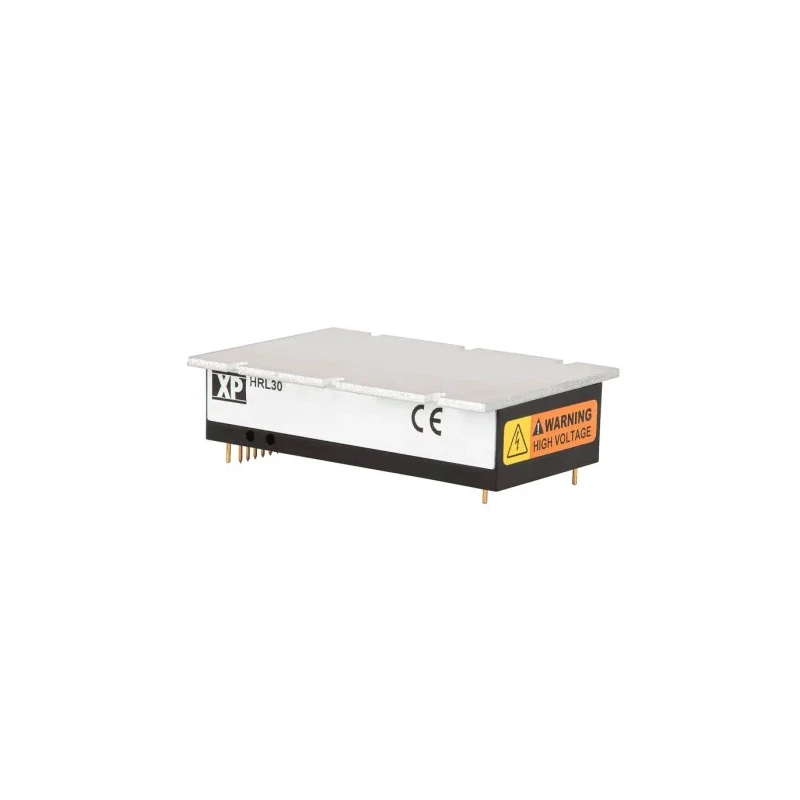

XP Power High Voltage Regulated DC/DC Converter 30 W Output, 22-30 V DC Input, 6000 V DC Output, Through Hole Mount HRL30
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power HRL30 DC/DC Converter, 6000V dc/, 30V dc |
| Brand | XP Power |
| Efficiency | 85% |
| Operating Temperature | -40°C to +70°C |
| Length | 76.2mm |
| Model | HRL30 |
| Depth | 18.6mm |
| Gross Weight | 120g |
| Width | 50.8mm |
| Mount Type | Through Hole |
| Series | HRL30 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| MTBF | 1mH |
| Number of outputs | 1 |
| Ripple and Noise | 5% |
| Maximum Output Power | 30W |
| Maximum Input Voltage | 30V dc |
| Minimum Input Voltage | 22V |
| Number of Pins | 14 |
| Output Voltage 1 | 6000V dc |
| Output Current 1 | 300mA |
Key Features
- The device features both voltage and current mode control with automatic crossover to current limiting for safe operation.
- It operates efficiently with rated power output of 30 W and a maximum output current of 300 mA.
- The converter is suitable for through-hole mounting with 14 pins and compact dimensions of 76.2 mm length, 50.8 mm width, and 18.6 mm depth.
- The unit has a wide operating temperature range from -40°C to +70°C, supporting robust industrial environments.
- Offers low ripple and noise output, digital compatible voltage and current monitors, and on-board +5 V reference voltage.
- Efficient design ensures 85% operational efficiency with low electromagnetic interference (EMI).
- Complies with safety and quality standards including EN 60950, RoHS 2 and 3 Directive, CE marking, and EN62368 certification.
- Constant voltage and constant current operation make this suitable for high voltage applications with short circuit, arc, and overload protections included.
Product Description
The XP Power HRL30 is a high-voltage, regulated DC/DC converter rated for 30 W output power. This device accepts an input voltage range from 22 V to 30 V DC and delivers a stable output voltage up to 6000 V DC, making it ideal for demanding industrial and laboratory applications requiring high voltage power supplies.
The product features a unique proprietary topology providing accurate voltage regulation, current mode control, and automatic crossover to current limiting mode for safety. The converter's 14-pin through-hole mount design, compact size (76.2 mm × 50.8 mm × 18.6 mm), and robust operating temperature range from -40°C to +70°C allow it to be integrated easily into a variety of systems.
With a maximum output current of 300 mA and a low ripple noise of 5%, the HRL30 series ensures clean and reliable power output. The unit includes on-board +5 V reference voltage and digital-compatible voltage and current monitor outputs, facilitating precise control and monitoring.
The converter operates with an efficiency of approximately 85% while maintaining low EMI emissions, crucial for sensitive electronic environments. The HRL30 series incorporates multiple protections including short circuit, arc, and overload safeguards, enhancing reliability and safety during operation.
This product complies fully with international standards including EN 60950, RoHS 2 and 3 Directives (2011/65/EU), CE marking, and EN62368 standards, assuring quality and regulatory compliance.
Typical uses include high voltage power supplies for industrial machinery, laboratory instrumentation, manufacturing processes, and specialized equipment involving HV DC conversions.
Manufactured in the United States, the HRL30 converter offers dependable performance backed by XP Power's engineering expertise. EnvMart provides this advanced high voltage DC/DC Converter ideal for critical applications requiring precise power delivery and safety features.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this converter is 30 W.
It accepts an input voltage range from 22 V to 30 V DC.
This model can deliver a stable output voltage of up to 6000 V DC.
The maximum output current is 300 mA.
The dimensions of the converter are 76.2 mm in length, 50.8 mm in width, and 18.6 mm in depth.
It operates within a temperature range of -40°C to +70°C.
The converter operates with an efficiency of approximately 85%.
This model supports through-hole mounting with 14 pins.
It includes short circuit, arc, and overload protections for enhanced safety.
The output has a low ripple and noise level of 5%.
It complies with EN 60950, RoHS 2 and 3 Directives, CE marking, and EN62368 certification.
It is suitable for high voltage power supplies in industrial machinery, laboratory instrumentation, and specialized equipment requiring HV DC conversions.
