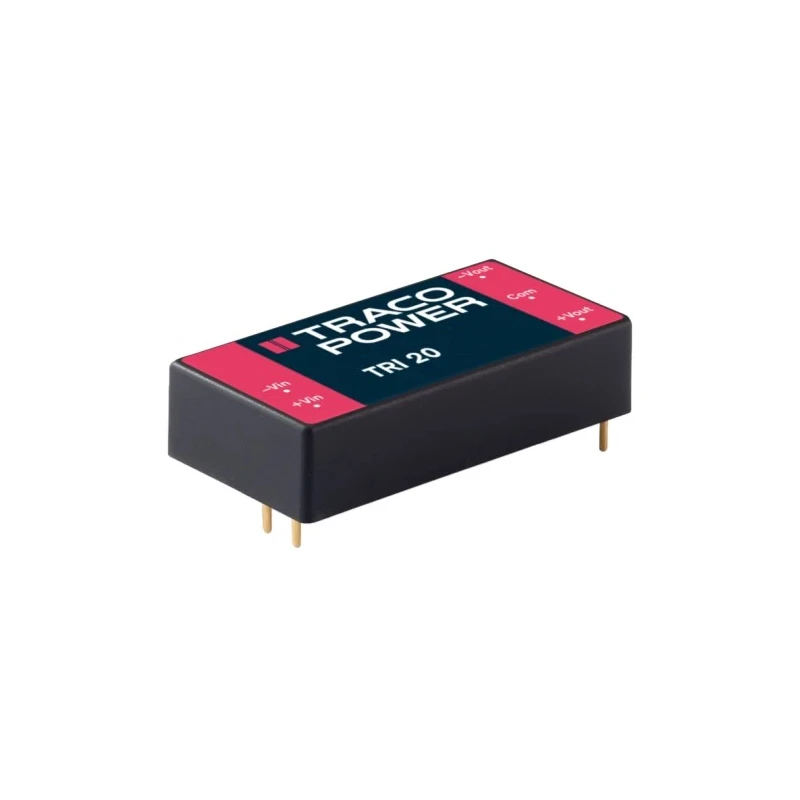

TRACOPOWER DC/DC Converter 15V DC 1.333A 36V DC Input 18V Input 20W Through Hole DIP Package TRI 20-2413
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 20 DC/DC Converter, 15V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 89% |
| Length | 50.8mm |
| Model | TRI 20-2413 |
| Depth | 12mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | TRI 20 |
| Maximum Operating Temperature | 76°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1087000h |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 5 |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 1.333A |
| Isolation Voltage | 5.94kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Delivers a stable output voltage of 15V DC with 1.333A current capacity.
- Supports a wide input voltage range of 18V to 36V ideal for variable DC sources.
- High efficiency up to 89% reduces power loss and heat generation.
- Features reinforced isolation of 4200 VAC rated for 1000 VAC working voltage enhancing safety.
- Compact through-hole DIP package measuring 50.8mm x 25.4mm x 12mm for easy PCB integration.
- Wide operating temperature range from -40°C to 76°C suits various industrial environments.
- Protection against overload, overvoltage, and short circuit ensures device reliability.
- MTBF rating of 1,087,000 hours guarantees long service life for demanding applications.
Product Description
TRACOPOWER's TRI 20-2413 is a high-performance DC/DC Converter delivering 15V DC output voltage at 1.333A current with a maximum power rating of 20W. It accepts a wide input voltage range from 18V to 36V DC and is designed in a durable through-hole DIP package for robust PCB mounting.
This converter features reinforced input-output isolation rated at 4200 VAC and an isolation voltage of 5.94kV DC, providing outstanding electrical separation, essential for industrial power supplies and sensitive electronic equipment. The ultra-high isolation peak voltage of 8000 VDC for 1 second further enhances its robustness in transient voltage conditions.
Operating efficiently at 89%, this DC/DC converter significantly reduces heat dissipation and power loss, supporting energy-efficient electronic systems. Its operating temperature range from -40°C up to a maximum of 76°C enables reliable performance in harsh environmental conditions.
Additional protection features include safeguards against overload, overvoltage, and short circuits, providing safety and longevity in various industrial, manufacturing, and electronic component applications.
The compact dimensions of 50.8 mm in length, 25.4 mm width, and 12 mm depth facilitate integration into constrained spaces on printed circuit boards. Designed for through-hole mounting with 5 pins, this component simplifies electrical assemblies requiring stable and isolated voltage conversion.
Delivers regulated 15V DC output at 1.333A current. Wide input voltage range from 18V to 36V DC with 2:1 input ratio. Reinforced input/output isolation rated 4200 VAC and isolation voltage 5.94kV DC. High efficiency of approximately 89% lowers energy losses.
Compact through-hole DIP package measuring 50.8 x 25.4 x 12 mm. Operating temperature range from -40°C to 76°C for diverse environments. Protection from overload, overvoltage, and short circuits enhances durability. Mean Time Between Failures (MTBF) of 1,087,000 hours assures reliability.
Ideal for use in industrial, electronic components, power supplies, and manufacturing sectors.
TRACOPOWER products offer trusted reliability and design quality for demanding electronic power applications. Explore the EnvMart category for more DC/DC Converters and power supply solutions tailored to your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model delivers a stable output voltage of 15V DC with a current capacity of 1.333A.
It supports a wide input voltage range from 18V to 36V DC.
The maximum output power rating of this unit is 20W.
It operates with an efficiency of up to 89%, which helps reduce power loss and heat generation.
The converter has dimensions of 50.8mm in length, 25.4mm in width, and 12mm in depth.
This model is designed for through-hole mounting, featuring a DIP package.
It operates effectively within a temperature range of -40°C to 76°C.
It features reinforced isolation rated at 4200 VAC and an isolation voltage of 5.94kV DC.
It includes protection against overload, overvoltage, and short circuits to enhance reliability.
The MTBF rating is 1,087,000 hours, indicating a long service life for demanding applications.
This unit has one output channel.
It is ideal for use in industrial, electronic components, power supplies, and manufacturing sectors.
