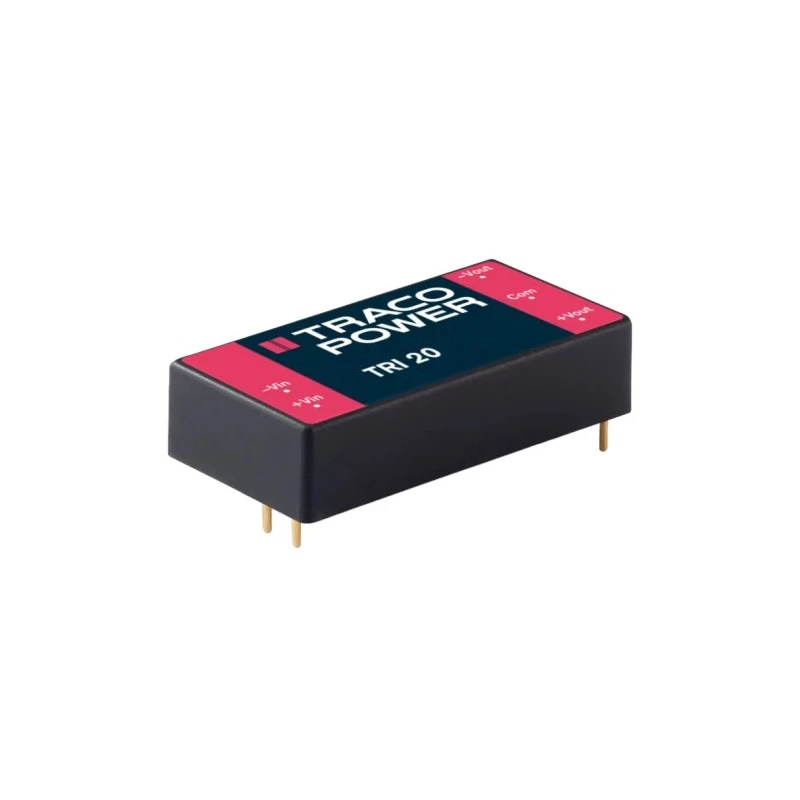

TRACOPOWER TRI 20-4812 DC/DC Converter 12V DC 1.67A 75V DC Input 36V Input 20W Through Hole DIP Package TRI 20 Series
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 20 DC/DC Converter, 12V dc/ 1 |
| Brand | TRACOPOWER |
| Efficiency | 88% |
| Length | 50.8mm |
| Model | TRI 20-4812 |
| Depth | 12mm |
| Width | 25.4mm |
| Mount Type | Through Hole |
| Series | TRI 20 |
| Maximum Operating Temperature | 76°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 1087000h |
| Number of outputs | 1 |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 5 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 1.67A |
| Isolation Voltage | 5.94kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Supports a maximum operating temperature of 76°C and minimum operating temperature of -40°C.
- Features reinforced I/O isolation rated at 4200 VAC and ultra-high isolation peak voltage of 8000 VDC.
- High efficiency up to 88% with low no-load power consumption between 240 - 480 mW.
- Designed with protection against overload, overvoltage, and short circuit conditions.
- Compact dimensions measuring 50.8mm length, 25.4mm width, and 12mm depth.
- Ideal for industrial, electronic, and power supply applications requiring reliable voltage conversion.
- Comes with a 3-year product warranty ensuring long-term reliability.
Product Description
TRACOPOWER TRI 20-4812 is a high-performance DC/DC converter providing a stable 12V DC output at 1.67A from an input voltage range of 36V to 75V DC. This converter supports a 2:1 input ratio and delivers a maximum output power of 20W in a compact Through Hole DIP package, part of the TRI 20 series.
Its robust design features reinforced I/O isolation rated at 4200 VAC for 1000 VAC working voltage and an ultra-high isolation peak voltage of 8000 VDC for 1 second. This ensures superior electrical isolation and safety in demanding industrial environments.
Highly efficient with up to 88% efficiency, the converter maintains low no-load power consumption between 240 to 480 milliwatts, reducing energy wastage and heat generation. It is rated for operation over a wide temperature range from -40°C up to 76°C, suitable for various harsh operating conditions.
Additional protections include safeguards against overload, overvoltage, and short circuit, enhancing device longevity and reliability. The compact physical footprint (50.8mm x 25.4mm x 12mm) allows for easy integration into electronic assemblies and power supplies.
This converter is well-suited for industrial, laboratory, manufacturing, and power supply applications requiring precise voltage regulation and isolation. The product is manufactured in Taiwan, Province of China, and includes a 3-year warranty for dependable service.
Supports maximum operating temperature of 76°C and minimum of -40°C. Reinforced I/O isolation at 4200 VAC and peak isolation voltage of 8000 VDC. High efficiency of 88% and low no-load power consumption. Input voltage range of 36V to 75V DC with 2:1 input ratio.
Protection against overload, overvoltage, and short circuit. Compact Through Hole DIP package with dimensions 50.8 x 25.4 x 12 mm. Industry applications in electronics, power supplies, and industrial automation. 3-year product warranty assurance.
Explore more DC/DC Converters and power supply solutions at EnvMart for your industrial, electronic, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within an input voltage range of 36V to 75V DC, supporting a 2:1 input ratio.
The TRI 20-4812 provides a maximum output power of 20W.
It has an efficiency rating of up to 88%, which helps reduce energy wastage.
The compact dimensions of the TRI 20-4812 are 50.8mm in length, 25.4mm in width, and 12mm in depth.
This unit can operate in temperatures ranging from -40°C to 76°C.
It uses a Through Hole mounting type, suitable for various electronic assemblies.
This model includes protections against overload, overvoltage, and short circuit conditions.
It features a single output rated at 12V DC and 1.67A.
The TRI 20-4812 has an isolation voltage rated at 5.94kV DC, ensuring superior electrical isolation.
This product is manufactured in Taiwan, Province of China.
The TRI 20-4812 comes with a 3-year product warranty, ensuring long-term reliability.
The maximum input voltage for this converter is 75V DC.
