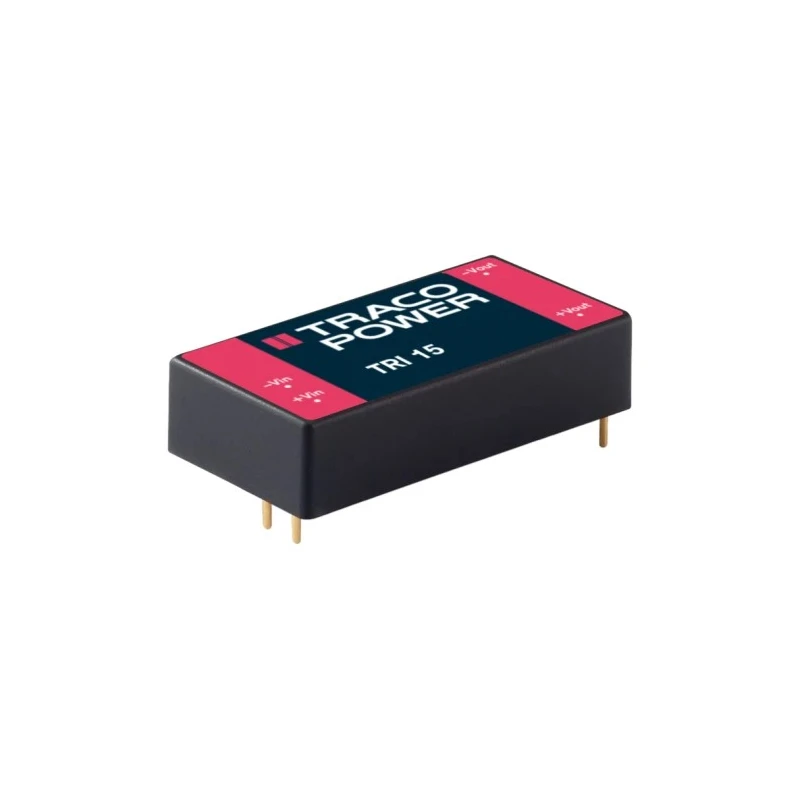

TRACOPOWER DC/DC Converter Dual Output 12V/-12V DC 625 mA 15 W Through Hole DIP Package TRI 15-4822

TRACOPOWER TRI 15-4822 is a high-reliability DC/DC Converter featuring dual outputs of +12V and -12V DC, each capable of supplying 625 mA current with a combined maximum output power of 15 W. It supports a wide input voltage range from 36 V dc to 75 V dc, providing flexibility for diverse industrial and electronic applications.

Engineered with a through-hole DIP package, this converter is easy to mount on PCBs and offers reinforced I/O isolation rated at 4200 VAC for 1000 VAC working voltage alongside an ultra-high isolation peak voltage of 8000 VDC (1 second). It provides excellent common mode transient immunity with a dv/dt tolerance of 15 kV/μs.

The converter operates efficiently at 89% efficiency, minimizing heat dissipation, with low no-load power consumption between 240 mW and 480 mW. Its robust design ensures operation within a wide temperature range from -40°C to +85°C, making it suitable for demanding industrial, laboratory, instrumentation, and power supply environments.

Additional protective features include overload, overvoltage, and short circuit protections to enhance durability and user safety. With a mean time between failures (MTBF) rating of 1,428,000 hours, this converter is built for long-term reliable operation.

This converter series, TRI 15, is crafted in Taiwan, Province Of China, reflecting high manufacturing standards. The DIP package features 5 pins and dimensions of 50.8 mm length, 25.4 mm width, and 12 mm depth.

Supports dual output voltages: 12 V DC and -12 V DC. Input voltage range: 36 V to 75 V DC, 2:1 input ratio. Through Hole mounting style with DIP package for PCB integration. Isolation voltage rating of 5.94 kV DC. Maximum output power of 15 W with 89% efficiency.

Operating temperature range from -40°C to 85°C. Includes overload, overvoltage, and short circuit protection mechanisms. Compliance with reinforced I/O isolation standards for safety. MTBF of 1,428,000 hours assures long-term reliability.

TRACOPOWER DC/DC converters such as the TRI 15-4822 are widely used in industrial, electronic component manufacturing, power supplies, automation controls, laboratory equipment, and other commercial electrical applications that require stable and efficient DC voltage conversion.
