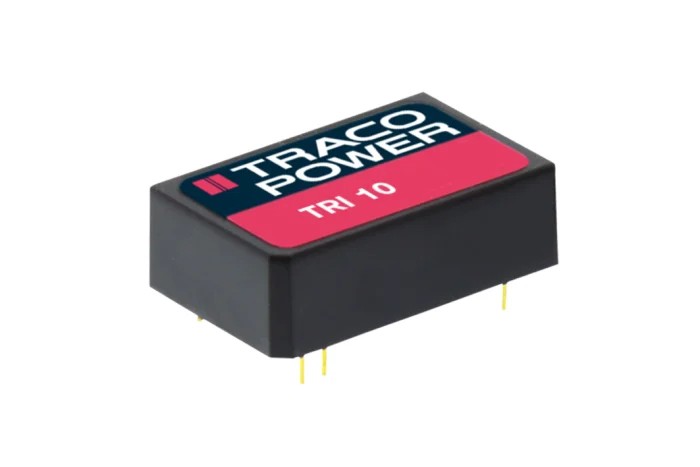

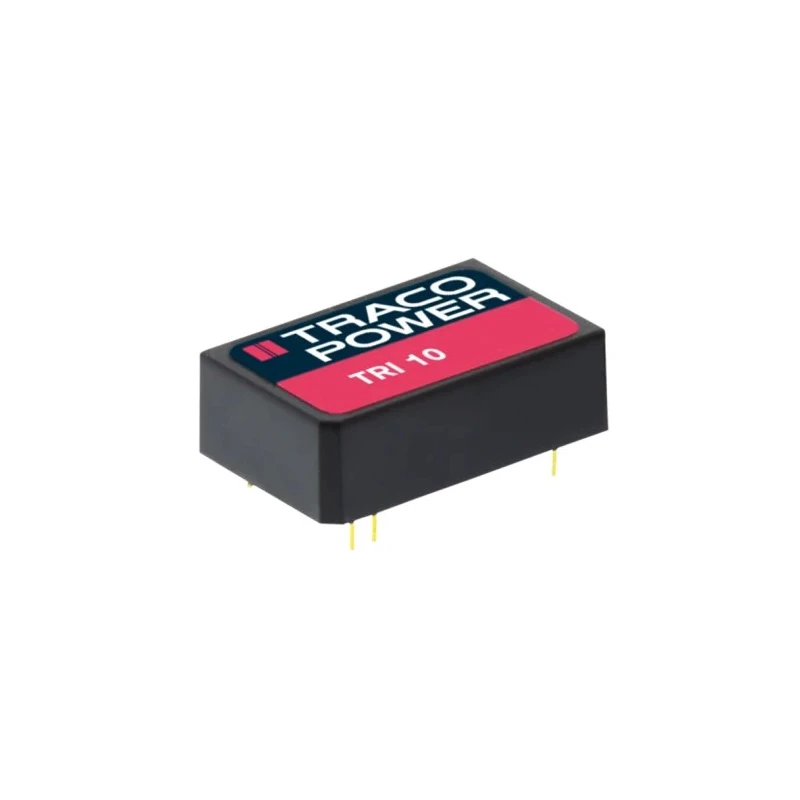

TRACOPOWER DC/DC Converter Through Hole 12V dc 416 mA Output, 75V dc Max Input, 36V Min Input, 10 W Power, DIP TRI 10-4822

TRACOPOWER TRI 10-4822 is a high-quality DC/DC converter delivering 12V DC output at 416 mA with a maximum power rating of 10 W. This through-hole mounted device offers reliable and efficient voltage conversion for varied electronic applications requiring reinforced isolation and safety.

It supports a broad input voltage range from 36V to 75V DC, employing a 2:1 input ratio for versatile power conditions. The product features robust electrical isolation of 7 kV DC rated for reinforced I/O isolation and ultra-high peak isolation voltage of up to 9 kV DC (1 second), ensuring safe operation in sensitive circuits.

The converter arrives in a compact 7-pin DIP package (31.8 mm length, 20.3 mm width, and 12 mm depth), designed for through-hole PCB mounting. Its efficiency rating reaches up to 87%, significantly reducing power losses during operation. It also provides excellent common mode transient immunity (dv/dt) of 15 kV/μs.

Operating over a wide temperature range between -40°C and +85°C, this converter is capable of serving challenging industrial and commercial environments. Additional built-in protections guard the unit against overload, overvoltage, and short circuits, prolonging device and system longevity.

TRACOPOWER backs this product with a three-year warranty, underscoring its commitment to quality and reliability. The converter is suitable for applications including industrial automation, communication equipment, and other DC power supply needs.

Operates with a wide input voltage range of 36V to 75V DC. Through-hole mounting package ensures easy PCB integration. High isolation voltage of 7 kV DC provides reinforced I/O safety. Compact DIP package measuring 31.8 x 20.3 x 12 mm suitable for space-limited applications.

Wide operating temperature range from -40°C to 85°C ensures performance in harsh environments. High efficiency of up to 87% minimizes energy loss during conversion. Includes protection features against overload, overvoltage, and short circuit.

Long MTBF of approximately 3.8 million hours ensures reliability. Designed and manufactured in Taiwan, Province Of China. Ideal for industrial, communications, and power supply applications. Explore EnvMart's wide selection of DC/DC Converters and power components for your next electronic project or industrial need.
