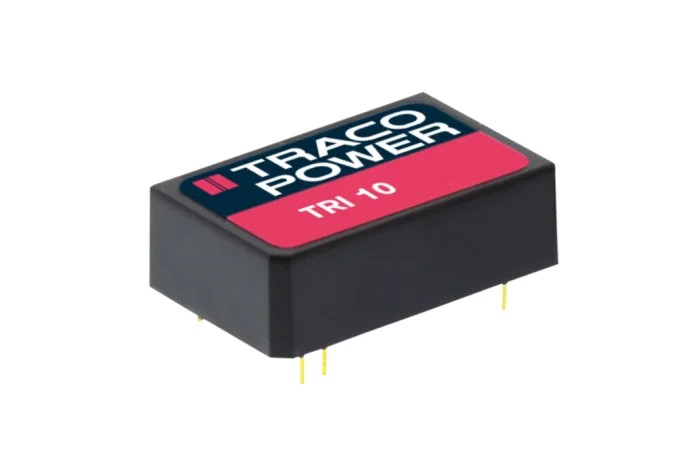

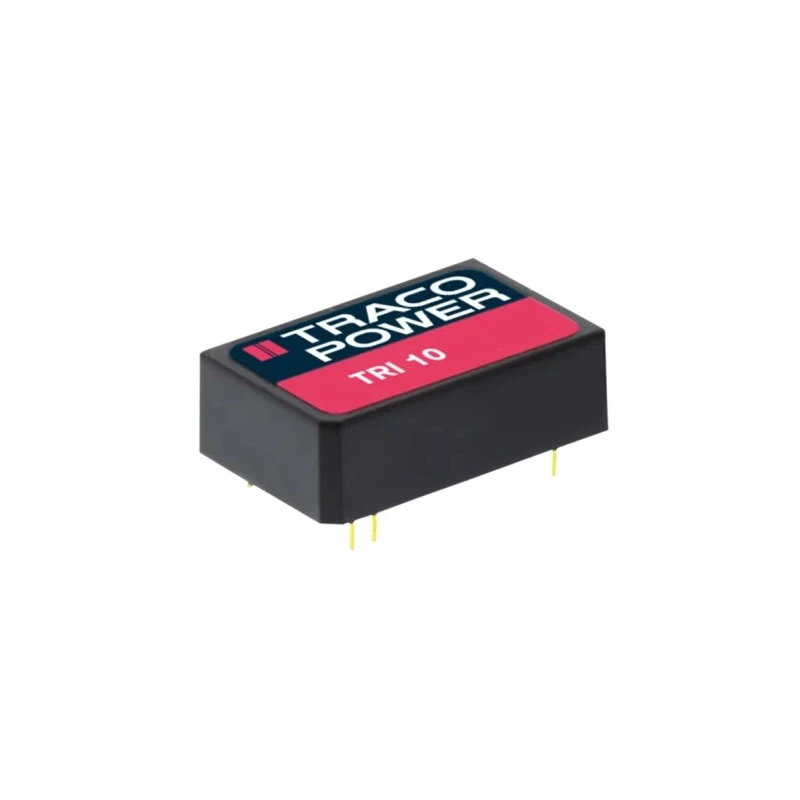

TRACOPOWER DC/DC Converter 12V DC, 833 mA, 18V DC Input, 9V Input, 10 W Through Hole TRI 10-1212
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TRI 10 DC/DC Converter, 12V dc/ 833 mA |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 31.8mm |
| Model | TRI 10-1212 |
| Depth | 12mm |
| Width | 20.3mm |
| Mount Type | Through Hole |
| Series | TRI 10 |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 3817000h |
| Number of outputs | 1 |
| Maximum Output Power | 10W |
| Maximum Input Voltage | 18V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 7 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 833mA |
| Isolation Voltage | 7kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Operates with an input voltage range of 9V to 18V DC.
- Provides reinforced I/O isolation rated at 5000 VAC for safe operation.
- Features ultra-high isolation peak voltage of 9000 VDC for 1 second.
- Common mode transient immunity rate is 15 kV/μs for noise resilience.
- Low no-load power consumption between 144 to 288 mW ensures energy efficiency.
- High efficiency up to 86% supports reliable power conversion.
- Operating temperature range spans from -40°C to 85°C for versatile environments.
- Compact DIP package with dimensions 31.8 mm length, 20.3 mm width, and 12 mm depth.
Product Description
TRACOPOWER TRI 10-1212 is a high-performance DC/DC Converter designed to convert input voltages between 9V and 18V DC to a stable 12V DC output at 833 mA current with a maximum output power of 10 W. This through-hole mounted device utilizes a DIP package with compact dimensions of 31.8 mm in length, 20.3 mm in width, and 12 mm in depth, making it suitable for various PCB designs.
It provides reinforced I/O isolation rated for 5000 VAC with an ultra-high isolation peak voltage of 9000 VDC lasting 1 second, ensuring secure electrical operation under demanding industrial conditions. The common mode transient immunity of 15 kV/μs protects against noise and transient disturbances, making it reliable for sensitive electronic circuits.
Energy efficiency of up to 86% and low no-load power consumption between 144 and 288 mW support sustainable operation with reduced heat generation. The wide operating temperature range from -40°C to 85°C enables usage in harsh environments including industrial, laboratory, and manufacturing applications.
This model features one output channel and a 7-pin DIP package designed for through-hole mounting, providing easy integration into electronic assemblies. The product offers a mean time between failures (MTBF) of 3,817,000 hours, reflecting high reliability.
Operates with input voltage range 9 - 18 V DC and output voltage 12 V DC at 833 mA. Reinforced isolation and high peak isolation withstand voltage enhance safety. Compact through-hole DIP package allows flexible PCB mounting.
Energy efficient with 86% conversion efficiency and low power loss. Wide operating temperature range of -40 °C to +85 °C for all-weather performance. 3-year warranty supports long-term dependable use.
Widely applicable in industrial automation, power supply systems, laboratory instrumentation, telecom equipment, and embedded electronics. Taiwan-origin product known for quality power conversion. Explore more power conversion solutions on EnvMart to fit your specific technical needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range of 9V to 18V DC.
The maximum output power of this unit is 10 W.
It has an efficiency rating of up to 86%.
The dimensions of the DIP package are 31.8 mm in length, 20.3 mm in width, and 12 mm in depth.
The operating temperature range spans from -40°C to 85°C.
This unit uses a through-hole mounting type.
It features one output channel.
The common mode transient immunity rate is 15 kV/μs.
The reinforced I/O isolation is rated at 5000 VAC, with an ultra-high isolation peak voltage of 9000 VDC for 1 second.
The mean time between failures (MTBF) is 3,817,000 hours.
The output current is 833 mA at 12V DC.
This product is manufactured in Taiwan.
