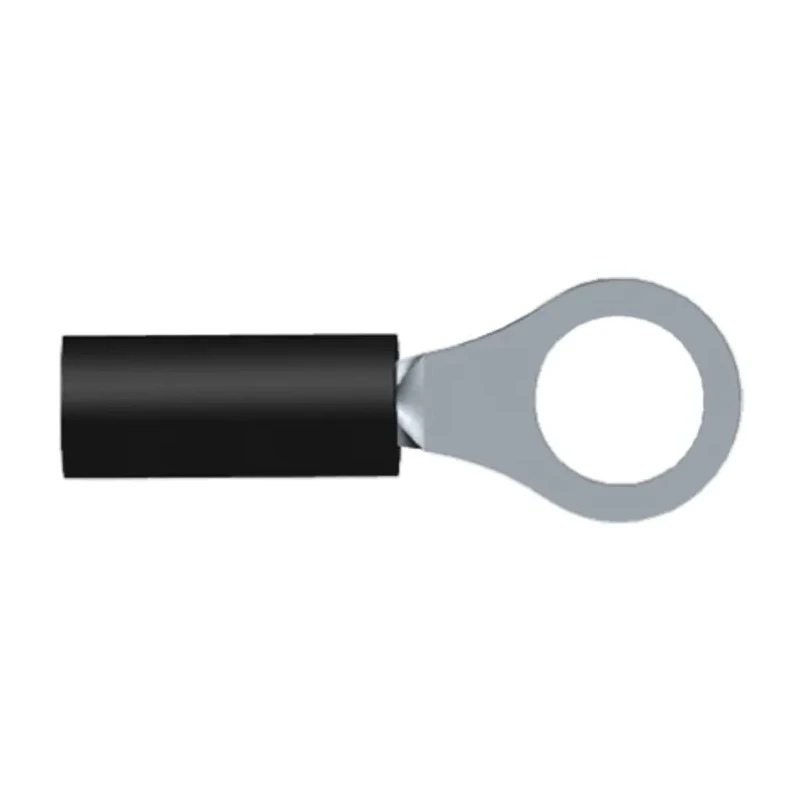

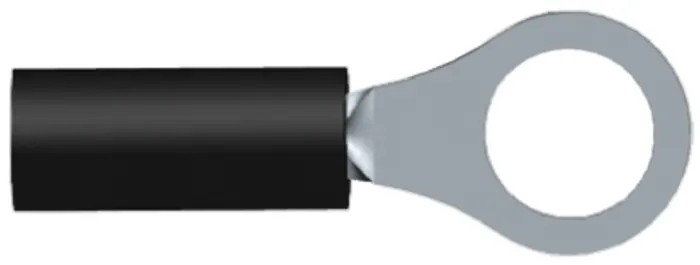

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 24 AWG to 22 AWG Wire Size Black 151441
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Model | 151441 |
| Insulation | Insulated |
| Overall Length | 19.9mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Stud Size | M5 |
Key Features
- Constructed with high conductivity copper for efficient electrical performance.
- Features a copper sleeve to enhance wire insulation support and prevent fraying.
- Equipped with serrations inside the barrel to provide maximum contact and tensile strength after crimping.
- Colour-coded nylon insulation sleeve enables easy wire size identification.
- Designed with a funnelled entry to facilitate fast and reliable wire insertion during high-speed production.
- Operates reliably up to a maximum temperature of 105°C.
- Compatible with wire sizes ranging from 24 AWG (0.26 mm²) to 22 AWG (0.4 mm²).
- Applications include instrumentation, control circuits, lighting, power supply panels, transportation, lifting equipment, motors, aerospace, and appliances.
Product Description
TE Connectivity 151441 PIDG insulated ring terminal is a high-quality wire crimp terminal designed for reliable electrical connections in demanding circuit environments. It features a precision-formed copper body with a copper sleeve around the wire barrel to support insulation and prevent wire strands from fraying. The barrel contains serrations that ensure maximum contact and tensile strength following crimping.
The insulated nylon sleeve is colour-coded black for quick wire size identification, suitable for wire sizes 24 AWG to 22 AWG, corresponding to 0.26 mm² to 0.4 mm² cross-sectional area. The terminal has an overall length of 19.9 mm and fits an M5 stud size.
The design includes a funnelled wire entry to enable fast and efficient wire insertion, making it suitable for high-speed manufacturing environments. This terminal maintains performance up to a maximum operating temperature of 105°C, ensuring durability in various industrial applications.
PIDG ring terminals like this model are widely used in instrumentation controls, lighting systems, power distribution panels, transportation equipment, lifting devices, motor connections, aerospace systems, and various appliances, providing a secure and uniform crimp connection.
Constructed from high conductivity copper ensuring excellent electrical performance. Copper sleeve provides enhanced wire insulation support and prevents fraying. Serrations in the wire barrel create strong contact and tensile durability after crimping.
Colour-coded nylon insulation sleeve allows for easy wire size and tool identification. Funnelled wire entry supports quick and reliable wire insertion. Supports wire sizes between 24 AWG and 22 AWG. Maximum operating temperature is 105 degrees Celsius.
Overall length measures 19.9 mm with an M5 stud termination.
Available as a component ideal for various industrial, manufacturing, electronic, and aerospace applications requiring dependable wire connections. Explore more Ring Terminals and electronic components from TE Connectivity and other top brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 105°C.
It is compatible with wire sizes ranging from 24 AWG (0.26 mm²) to 22 AWG (0.4 mm²).
The overall length of this terminal is 19.9 mm.
The contact material is copper, which ensures efficient electrical performance.
It features a nylon insulation sleeve that is color-coded black for easy wire size identification.
The design includes a funnelled wire entry that supports fast and reliable wire insertion, making it suitable for high-speed production environments.
This terminal is designed to fit an M5 stud size.
It is suitable for applications including instrumentation, control circuits, lighting, power supply panels, and various industrial and aerospace systems.
The barrel contains serrations that provide maximum contact and tensile strength after crimping, ensuring a secure connection.
The country of origin for this product is India.
It has a copper sleeve around the wire barrel that enhances wire insulation support and prevents fraying of wire strands.
This terminal belongs to the PIDG series from TE Connectivity.
