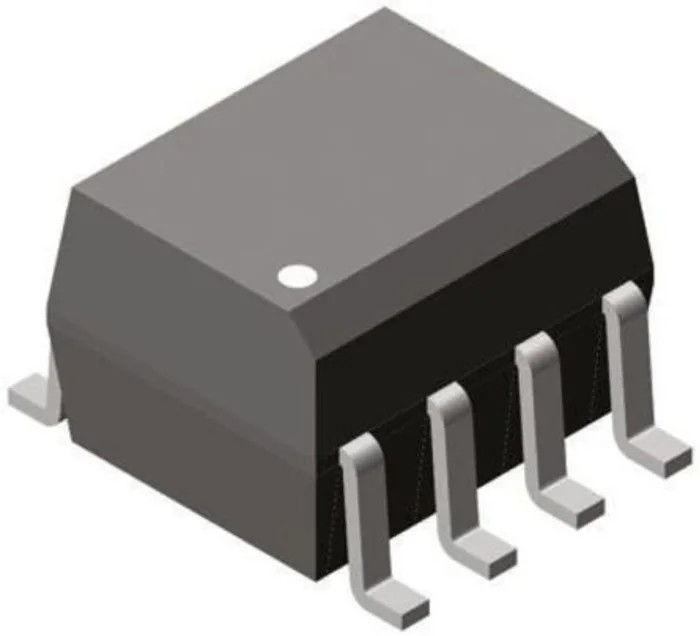

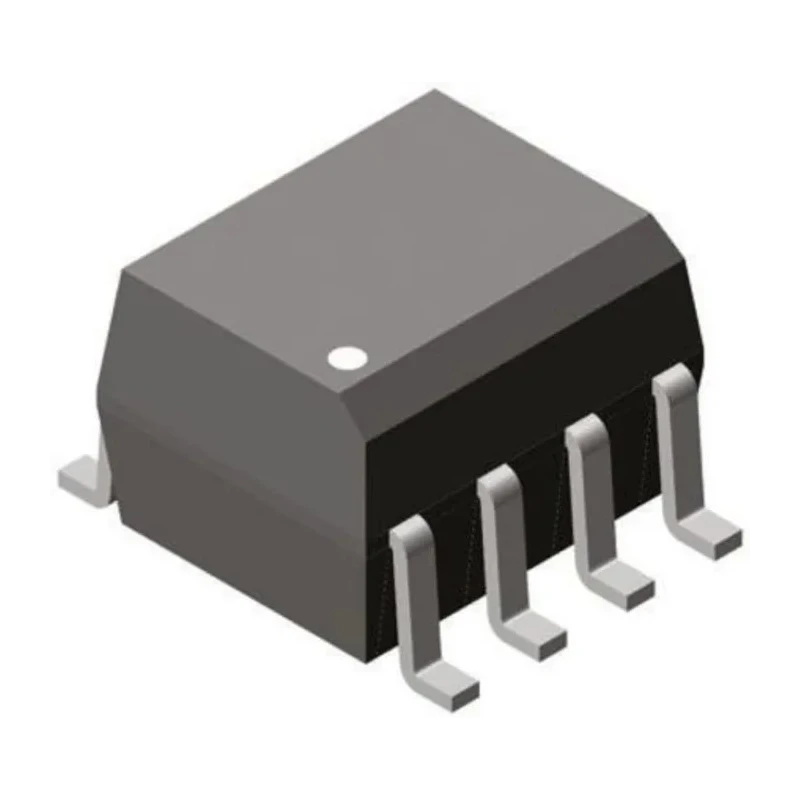

Vishay SFH6316T DC Input Optocoupler Surface Mount 8-Pin SOIC with 25mA Max Input Current SFH6316T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | SFH6316T |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | SFH63 |
| Maximum Operating Temperature | 100°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 25mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Input Current Type | DC |
| Maximum Current Transfer Ratio | 50% |
| Minimum Current Transfer Ratio | 19% |
| Isolation Voltage | 4000V ac |
Key Features
- This optocoupler provides reliable galvanic isolation for electronic circuits.
- It features a maximum forward voltage of 1.8V for efficient input power usage.
- The device operates over a temperature range from -55°C to 100°C.
- Maximum current transfer ratio is 50% with a minimum of 19%, ensuring signal integrity.
- Suitable for use in industrial, telecom, and power supply isolation applications.
- Package type is SOIC for easy surface mounting on PCBs.
- Meets UL1577, cUL, and DIN EN 60747-5-5 (VDE 0884-5) standards for safety and performance.
- The product comes in tape and reel packaging for automated assembly processes.
Product Description
Vishay SFH6316T DC Input Optocoupler is a high-performance 8-Pin SOIC surface-mount device designed to provide excellent isolation between input and output circuits with an isolation voltage rating of 4000V AC. It supports a maximum input current of 25mA and a maximum forward voltage of 1.8V.
This device features a transistor output, making it suitable for a wide range of applications requiring galvanic isolation such as industrial controls, programmable logic controllers, telecom systems, smart meters, and power supplies. The SFH6316T operates reliably over a harsh temperature range from -55°C to 100°C, ensuring stability in demanding environments.
With a maximum current transfer ratio of 50% and minimum 19%, this optocoupler efficiently transfers signals with minimal loss. The package type is surface mount SOIC, facilitating automated PCB assembly and compact device integration.
Vishay SFH6316T complies with safety standards UL1577, cUL, and DIN EN 60747-5-5 (VDE 0884-5), ensuring high reliability and compliance for industrial electronics and telecommunications equipment.
This product is supplied in tape and reel packaging, optimized for high volume production and ease of handling during manufacturing processes. Reliable electrical isolation for signal and power lines. Wide operating temperature range from -55°C to 100°C.
Suitable for industrial, telecom, and power supply applications. Compact 8-Pin SOIC surface mount design. Compliance with major international safety standards. Explore more Vishay Optocouplers and related electronics components on EnvMart for your industrial and electronic projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input current for this model is 25mA.
It has an isolation voltage rating of 4000V AC.
The device operates over a temperature range from -55°C to 100°C.
This model is supplied in tape and reel packaging, which is optimized for automated assembly processes.
The maximum forward voltage for this optocoupler is 1.8V.
The maximum current transfer ratio is 50%, with a minimum of 19%.
This optocoupler features one channel.
It uses a surface mount design, specifically in an 8-Pin SOIC package.
It belongs to the SFH63 series of optocouplers.
It complies with UL1577, cUL, and DIN EN 60747-5-5 (VDE 0884-5) standards.
This optocoupler is suitable for industrial controls, programmable logic controllers, telecom systems, smart meters, and power supplies.
The country of origin for this model is India.
