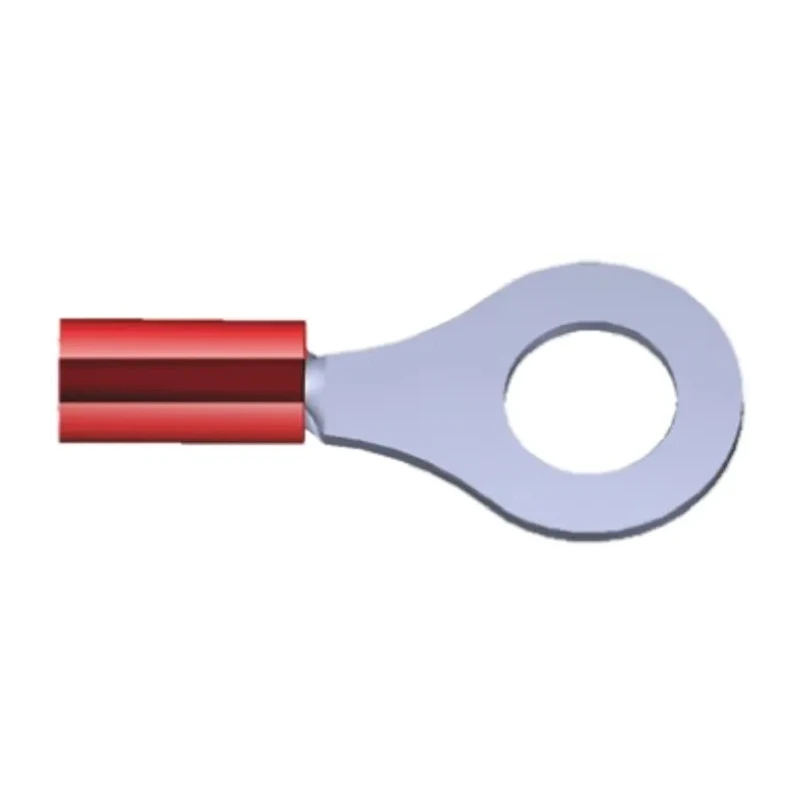

TE Connectivity PIDG Insulated Ring Terminal M6 Stud Size 22 AWG to 16 AWG Wire Size Red 2-320571-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Insulation | Insulated |
| Overall Length | 28.96mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 11.91mm |
| Inner Ring Diameter | 6.73mm |
| Stud Size | M6 |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Nylon insulated with color-coded red sleeve for easy wire size identification.
- Features serrations inside the barrel for maximum contact and tensile strength after crimping.
- Includes a copper sleeve enhancing wire insulation support and preventing fraying.
- Designed with funnelled wire entry for quick and reliable wire insertion during production.
- Suitable for a wide range of applications including instruments, lighting, power supplies, and aerospace.
- Rated for maximum operating temperature of 105°C ensuring reliable performance in demanding environments.
- Overall length of 28.96 mm with an outer ring diameter of 11.91 mm and inner ring diameter of 6.73 mm.
Product Description
TE Connectivity 2-320571-4 PIDG Insulated Ring Terminal is engineered for reliable electrical connections in demanding industrial and commercial applications. Featuring a precision-formed high conductivity copper body and barrel, this ring terminal ensures optimal conductivity and mechanical strength.
The barrel is serrated internally to maximize contact area and tensile strength after crimping, providing a uniform and robust connection. A copper sleeve surrounds the wire barrel to enhance insulation support and eliminate wire fraying, combined with a funnelled wire entry design that allows fast wire insertion, ideal for high-speed production environments.
The terminal has a robust nylon insulation sleeve in a distinct red color to facilitate quick wire size identification and tooling. It accommodates wire sizes from 22 AWG (0.26 mm²) up to 16 AWG (1.65 mm²) and fits an M6 stud size. With an overall terminal length of 28.96 mm, an outer ring diameter of 11.91 mm, and an inner ring diameter of 6.73 mm, it fits securely onto the stud.
Designed to withstand operating temperatures up to 105°C, this ring terminal is suitable for a variety of applications, including control and instrumentation installations, lighting assemblies, power supplies, panel boxes, transportation systems, lifting equipment, motors, aerospace components, and household appliances.
High conductivity copper construction with tin plating for enhanced reliability. PIDG (Pre-Insulated Diamond Grip) design ensures durable insulation and crimp strength. Nylon insulation sleeve enables easy wire size recognition.
Funnelled wire entry prevents wire strand damage and speeds production. Meets or exceeds requirements of MIL-T-7928 standards for quality assurance. Choose TE Connectivity PIDG Ring Terminals for dependable, industrial-grade wiring solutions addressing extensive electrical applications.
Explore more in our Electronics Components category for additional connectors and terminals to support your projects and installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 22 AWG (0.26 mm²) up to 16 AWG (1.65 mm²).
It is rated for a maximum operating temperature of 105°C, making it suitable for demanding environments.
The overall length is 28.96 mm, with an outer ring diameter of 11.91 mm and an inner ring diameter of 6.73 mm.
The contact material is high conductivity copper, which ensures optimal conductivity and mechanical strength.
Yes, it features a nylon insulation sleeve that is color-coded red for easy wire size identification.
This terminal is designed to fit an M6 stud size.
It includes a funnelled wire entry for quick wire insertion and serrations inside the barrel for maximum contact and tensile strength after crimping.
The contact is plated with tin to enhance reliability.
It is suitable for a wide range of applications including instruments, lighting, power supplies, and aerospace components.
It meets or exceeds the requirements of MIL-T-7928 standards for quality assurance.
The country of origin for this terminal is India.
The thickness of the insulation is 0.79 mm.
