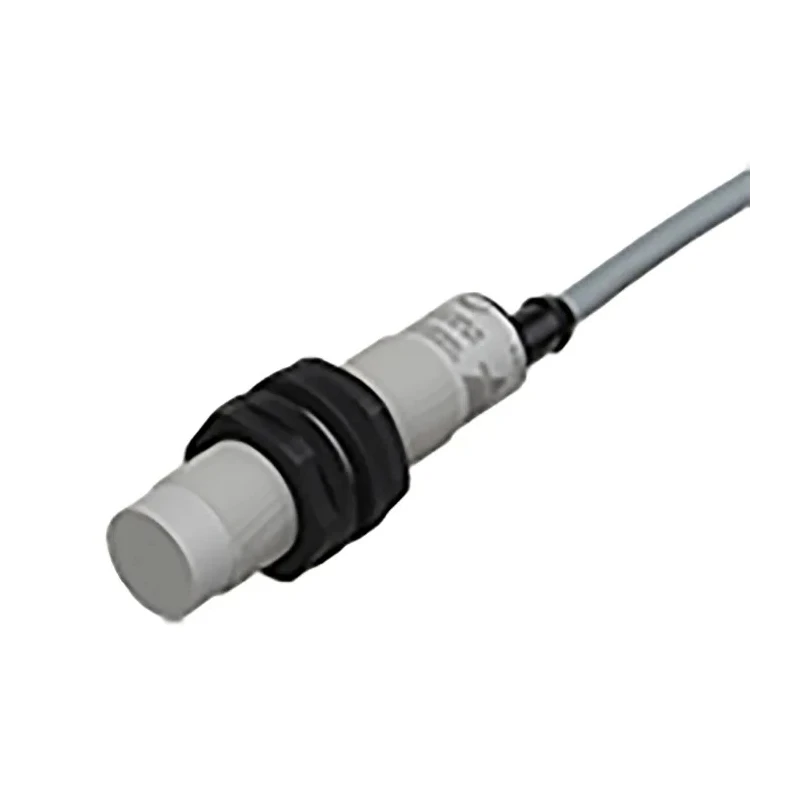

Carlo Gavazzi Threaded Barrel Capacitive Proximity Sensor M18 PNP/NPN 40V AC/DC 8 mm Detection CA18CAN12BPM1IO
Specifications
| Country of Origin | Lithuania |
|---|---|
| Brand | Carlo Gavazzi |
| Length | 70mm |
| Model | CA18CAN12BPM1IO |
| Depth | 70mm |
| IP Rating | IP69K |
| Mount Type | Non-Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | PNP/NPN |
| Series | CA |
| Maximum Operating Temperature | 85°C |
| Thread Size | M18 |
| Minimum Operating Temperature | -30°C |
| Switching Current | 20mA |
| Terminal type | M12 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 40V dc |
| Maximum Switching Frequency | 50Hz |
| Standards/Approvals | ANSI/ESD, CE, CSA, DIN, EN, IEC, REACH, RoHS, UL 508 12, UL 508 4, UL 94 HB, UL 94 V-0, UL 94 V-2 |
| Maximum AC Voltage | 240V ac |
| Maximum Supply Voltage | 40V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 8mm |
| Temperature monitoring | over or under-run temperature alarms can be set |
| Adjustable sensing distance and hysteresis | sensing distance can be set to 33%, 50%, 75% or 100% of the maximum sensing distance |
Key Features
- Equipped with M18 threaded barrel and 70 mm length for versatile mounting.
- Operates at a maximum supply voltage of 40V AC/DC with an 8 mm sensing distance.
- Features adjustable sensing distance and hysteresis for tailored performance.
- Outputs can be configured as PNP, NPN, or push-pull via IO-Link v1.1 protocol.
- Supports temperature monitoring with configurable alarms for over and under-run conditions.
- IP69K rated housing made of durable Polybutylene Terephthalate ensuring protection in harsh environments.
- Non-flush mount type with M12 terminal connection for reliable installation.
- High maximum switching frequency of 50Hz suitable for rotational speed monitoring.
Product Description
Carlo Gavazzi CA18CAN12BPM1IO is a threaded barrel capacitive proximity sensor with an M18 thread size designed for industrial automation applications. It provides non-contact detection with a maximum sensing distance of 8 mm and operates at a maximum supply voltage of 40V AC and 40V DC with a switching current of 20 mA.
The sensor housing is constructed from Polybutylene Terephthalate, offering IP69K ingress protection rating for resistance against dust, water, and harsh chemicals, making it suitable for demanding industrial environments.
This sensor supports flexible electrical output configurations including PNP, NPN, and push-pull outputs, configurable through IO-Link v1.1. The sensing distance and hysteresis are adjustable to 33%, 50%, 75%, or 100% of the maximum sensing range, allowing custom sensitivity levels based on specific use cases.
Additional features include temperature monitoring with alarms for over and under-run temperature conditions. The device can be used for precise position and presence sensing of metal and non-metal objects, and is particularly advantageous for applications requiring rotational speed monitoring due to its high switching frequency capability of 50 Hz.
Secure M12 terminal connection simplifies wiring. Non-flush mount design facilitates easy installation without interference. Meets a range of compliance and safety standards including CE, CSA, UL, RoHS, and others, ensuring reliable and safe operation.
This capacitive Proximity Sensor is an excellent choice for process automation, assembly lines, and machinery monitoring in diverse industrial sectors such as manufacturing, HVAC systems, and water treatment plants.
Explore more sensors and automation components to enhance your industrial control systems with EnvMart's comprehensive catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sensing distance of this model is 8 mm.
It supports PNP, NPN, and push-pull output configurations, which can be set via the IO-Link v1.1 protocol.
The maximum supply voltage for this sensor is 40V AC and 40V DC.
The housing has an IP69K ingress protection rating, making it resistant to dust and water.
The sensing distance can be adjusted to 33%, 50%, 75%, or 100% of the maximum sensing distance.
The maximum switching frequency is 50 Hz, suitable for monitoring rotational speeds.
This model can detect both metal and non-metal objects.
It features temperature monitoring with configurable alarms for over and under-run conditions.
The sensor has an M18 thread size, allowing for versatile mounting options.
The sensor operates within a temperature range of -30°C to 85°C.
It uses an M12 terminal connection for reliable installation.
This model meets several standards including ANSI/ESD, CE, CSA, UL, and RoHS, ensuring reliable operation in various environments.
