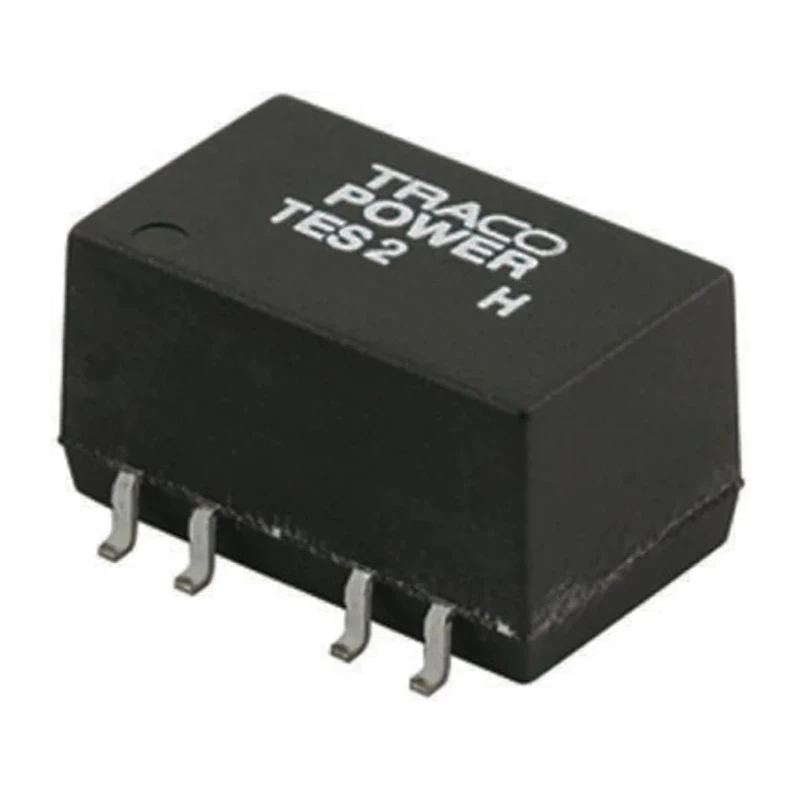

TRACOPOWER TES 2-0523H DC/DC Converter 15V DC 66mA 5.5V / 4.5V Input 2W Surface Mount 90°C Max Temp TES 2-0523H
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TES 2H DC/DC Converter, 15V dc/ 66 mA |
| Brand | TRACOPOWER |
| Efficiency | 76% |
| Length | 16.3mm |
| Model | TES 2-0523H |
| Depth | 8.6mm |
| Mount Type | Surface |
| Series | TES 2H |
| Maximum Operating Temperature | 90°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 2 |
| Maximum Output Power | 2W |
| Maximum Input Voltage | 5.5V dc |
| Minimum Input Voltage | 4.5V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 66mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Dual output with 15V DC and -15V DC available for versatile power supply needs.
- Operates efficiently at 76% efficiency for reliable energy conversion.
- Compact surface mount package with dimensions 16.3mm length and 8.6mm depth.
- Designed for harsh environments with operating temperature from -40°C to 90°C.
- Provides 1.5kV DC isolation voltage ensuring system safety and noise reduction.
- High reliability with mean time between failures (MTBF) of 2,000,000 hours.
- Unregulated but isolated DC-DC converter suitable for industrial and electronic applications.
- Input voltage range tightly controlled between 4.5V minimum and 5.5V maximum for stable operation.
Product Description
TRACOPOWER TES 2-0523H DC/DC Converter delivers reliable and efficient power conversion with a 15V DC output at 66mA using low input voltages of 4.5V to 5.5V. It is a surface mount device designed for durable use in industrial, electronic, and embedded system applications requiring isolated isolated dual outputs.
This compact DC-DC converter features a 2W maximum output power rating and delivers up to 76% efficiency, reducing energy loss and heat generation. Its 1.5kV DC isolation voltage allows safe electrical separation to prevent noise interference and protect sensitive components.
The TES 2-0523H supports harsh operating conditions from -40°C to 90°C, making it suitable for demanding environments. The robust unregulated isolated design is proven through a high MTBF of 2,000,000 hours, ensuring long service life and system reliability.
With a small footprint (16.3mm length, 8.6mm depth), this converter fits well into compact PCB layouts and meets IPC/JEDEC J-STD-020 lead-free reflow soldering specifications for manufacturing compatibility.
Applications include industrial controls, embedded electronics, communication devices, and power supply units requiring dual outputs with isolation for noise-sensitive circuits. Dual isolated outputs with positive and negative 15V DC.
High efficiency up to 76% promotes energy savings. Wide operating temperature range for versatile environments. Compact surface mount package optimized for PCB integration. Robust isolation voltage up to 1.5kV for electrical safety.
High reliability demonstrated by 2,000,000 hour MTBF rating. Explore TRACOPOWER DC/DC Converters on EnvMart for superior electronic power conversion solutions designed to meet stringent industrial and commercial demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual outputs of 15V DC and -15V DC.
It operates with an efficiency of up to 76%.
The input voltage range is tightly controlled between 4.5V minimum and 5.5V maximum.
The maximum output power rating is 2W.
It has a length of 16.3mm and a depth of 8.6mm, making it compact for PCB layouts.
It can operate efficiently in temperatures ranging from -40°C to 90°C.
This model features an isolation voltage of 1.5kV DC, ensuring safety and noise reduction.
It has a high reliability with an MTBF of 2,000,000 hours.
Yes, it is designed to operate in harsh environments with its wide temperature range and robust construction.
This model is a surface mount device, optimized for PCB integration.
It is suitable for industrial controls, embedded electronics, communication devices, and power supply units requiring dual outputs with isolation.
This model is part of the TES 2H series of DC/DC converters by TRACOPOWER.
