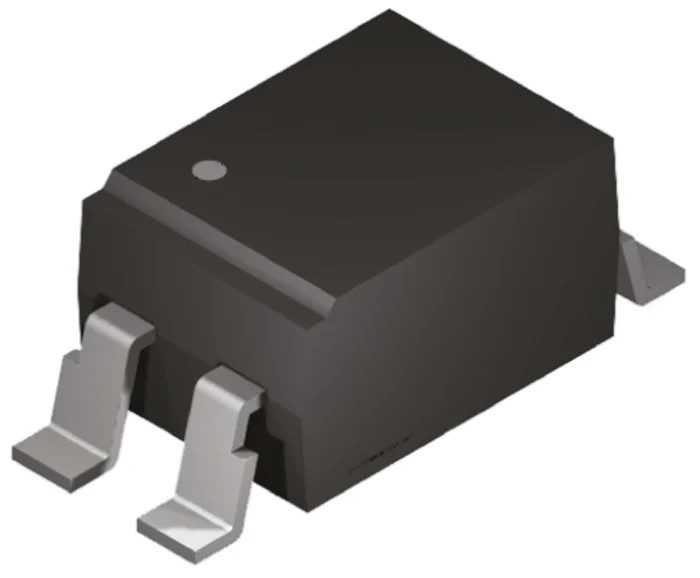

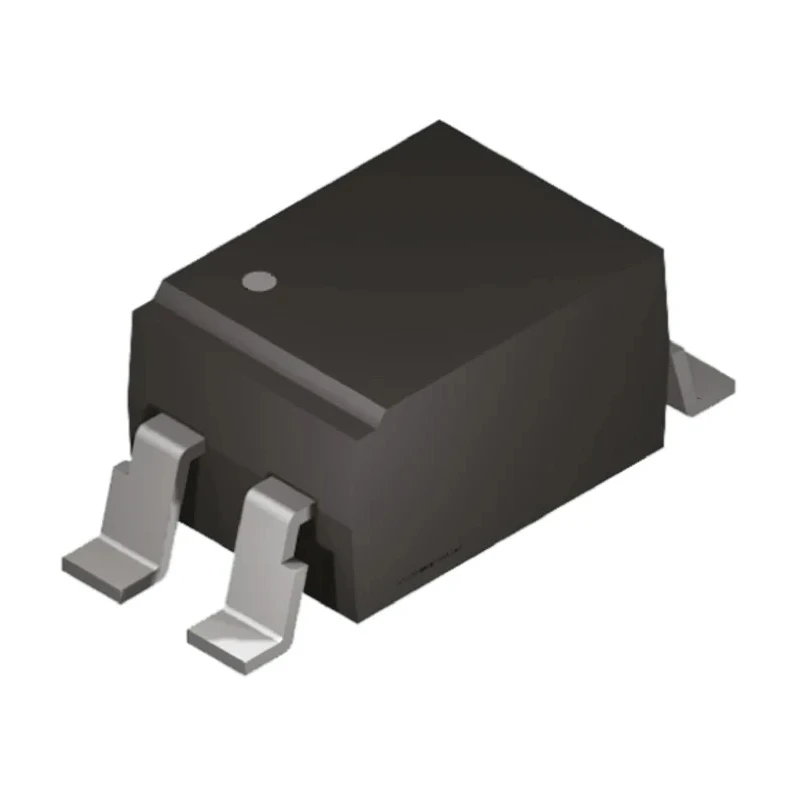

Vishay DC Input Surface Mount 4-Pin Mini-Flat Optocoupler TCMT1107
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | TCMT1107 |
| Mount Type | Surface |
| Series | TCMT |
| Maximum Operating Temperature | 100°C |
| Package Type | Mini-Flat |
| Minimum Operating Temperature | -40°C |
| Maximum input current | 60mA |
| Number Of Channels | 1 |
| Maximum Forward Voltage | 1.6V |
| Number of Pins | 4 |
| Input Current Type | DC |
| Typical Rise Time | 3μs |
| Maximum Current Transfer Ratio | 160% |
| Typical Fall Time | 4.7μs |
| Minimum Current Transfer Ratio | 80% |
Key Features
- The package type is Mini-Flat suited for surface mounting.
- Provides high isolation voltage of 3750 VRMS for safe electrical separation.
- Has a maximum forward voltage of 1.6V and can handle a maximum input current of 60mA.
- Offers fast signal response with typical rise and fall times of 3μs and 4.7μs respectively.
- Operates reliably within a temperature range of -40°C to 100°C.
- Current transfer ratio varies between 80% minimum and 160% maximum ensuring efficient signal transmission.
- Designed with a single phototransistor channel for precise optoelectronic isolation.
- Complies with multiple safety and quality standards such as UL1577, VDE 0884-5, and IEC safety norms.
Product Description
Vishay TCMT1107 is a DC input optocoupler featuring a surface mount Mini-Flat 4-pin package that combines a gallium arsenide infrared-emitting diode optically coupled to a phototransistor. The device provides high isolation voltage of 3750 VRMS and low coupling capacitance around 0.3 pF, delivering reliable electrical isolation between input and output circuits.
Operating within a temperature range from -40°C to 100°C, TCMT1107 offers fast switching performance with typical rise and fall times of 3μs and 4.7μs respectively. It supports a maximum forward voltage of 1.6V and input current capacity of up to 60mA, with a current transfer ratio ranging from 80% to 160% which enables efficient signal delivery.
This optocoupler is designed for surface mounting in a compact Mini-Flat package suitable for space-saving PCB layouts. It complies with international safety and quality standards including UL1577, CSA 22.2 bulletin 5A, VDE 0884-5, and EN60950-1 ensuring safe operation in industrial environments.
The package type is Mini-Flat for surface mount applications. Maximum forward voltage is 1.6V with a maximum input current of 60mA. High isolation voltage of 3750 VRMS enhances electrical safety. Typical rise time is 3 microseconds and fall time is 4.7 microseconds.
Operating temperature ranges from -40 to 100 degrees Celsius. Current transfer ratio varies between 80% and 160%. Single channel phototransistor output configuration. Compliant with multiple industry standards for safety and performance.
Widely used in programmable logic controllers, modems, and industrial applications.
The Vishay TCMT1107 optocoupler is primarily used in industrial signal isolation, programmable logic controller input protection, modems, and other general-purpose optoelectronic applications requiring high electrical isolation and reliable signal transfer. Its compact form and compliance with multiple safety standards make it suitable for demanding industrial and commercial electronics.
Explore the full range of Vishay Optocouplers and related electronic components for industrial and electronic applications at EnvMart.
