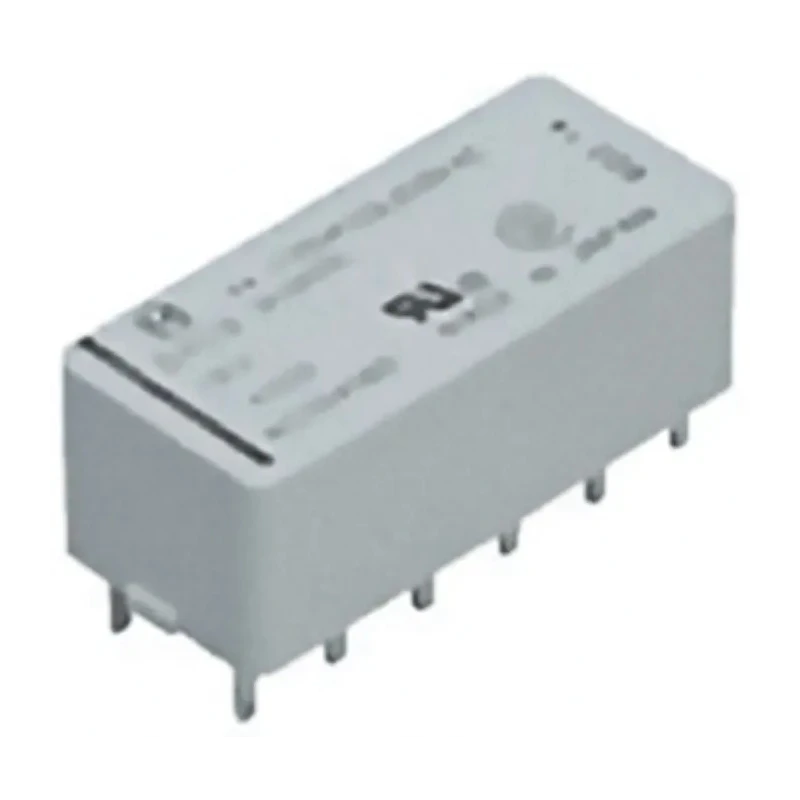

Panasonic PCB Power Relay 24V dc Coil 3A Switching Current DPDT S2EB-L2-24V
Specifications
| Country of Origin | India |
|---|---|
| Brand | Panasonic |
| Height | 10mm |
| Length | 28mm |
| Model | S2EB-L2-24V |
| Width | 12mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | S2 |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -55°C |
| Switching Current | 3A |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS, IEC, CE, UL |
| Coil Resistance | 2.9kΩ |
| Coil Voltage | 24V dc |
| Switching DC Voltage | 48V dc |
| Switching AC Voltage | 48V ac |
| Coil Power | 202mW |
Key Features
- High sensitivity with 100mW coil pick up power ensures energy efficiency.
- Gold plated contacts provide superior conductivity and corrosion resistance.
- Robust PCB mount design with through-hole terminals for secure installation.
- Wide operating temperature range from -55°C to 65°C for varied industrial environments.
- Compact form factor measuring 28mm length, 12mm width, and 10mm height for space-saving mounting.
- Supports switching AC and DC voltages up to 48V for versatile control applications.
- Complies with RoHS, IEC, CE, and UL standards for safety and environmental compliance.
- Designed for high shock and vibration resistance, suitable for demanding industrial use.
Product Description
Panasonic S2EB-L2-24V PCB Power Relay is a highly reliable power relay designed for PCB mounting, featuring a 24V dc coil and a 3A switching current rating with DPDT (Double Pole Double Throw) contact configuration. Its compact dimensions of 28mm length, 12mm width, and 10mm height make it ideal for integration in compact electronic assemblies.
It delivers a nominal switching capacity of 4A at 250VAC and supports switching AC and DC voltages up to 48V, enabling versatile applications in telecommunications equipment, data processing devices, fax machines, alarm systems, and precision measuring equipment. The relay’s coil resistance is 2.9kΩ, with power consumption limited to 202mW, contributing to energy-efficient operation.
This relay is built to withstand harsh industrial conditions with a wide operating temperature range from -55°C up to 65°C and features gold-plated contacts to ensure excellent electrical conductivity and reduce contact resistance. It also exhibits minimal contact bounce and impressive resistance to mechanical shock and vibration.
Compliance with RoHS, IEC, CE, and UL standards guarantees high safety and environmental standards. The through-hole terminal type ensures reliable soldering and mounting on PCBs. High sensitivity with 100mW coil pickup power reduces power consumption during operation.
Gold plated contacts offer enhanced reliability and longevity under frequent switching cycles. Compact PCB mount design suits a variety of electronic control systems and industrial automation setups. Wide temperature endurance allows for deployment in extreme environmental conditions.
Operational switching voltage up to 48V DC/AC for flexible electrical control applications. Designed to resist shock and vibration stresses common in industrial machinery environments. Meets multiple international safety and environmental compliance standards.
Ideal for use in telecommunications, data processing, alarm, and measurement industries.
Panasonic’s S-Series power relays, including the S2EB-L2-24V, represent high-quality components intended for durable and efficient switching performance in industrial and commercial electrical control systems. Browse more Panasonic Power Relays and related components at EnvMart to find suitable parts for your electronic design and automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current rating of 3A.
This model operates with a coil voltage of 24V DC.
It features a DPDT (Double Pole Double Throw) contact configuration.
The dimensions are 28mm in length, 12mm in width, and 10mm in height.
The maximum operating temperature is 65°C.
It uses through-hole terminals for secure installation on PCBs.
It supports switching AC and DC voltages up to 48V.
The coil resistance is 2.9kΩ.
It complies with RoHS, IEC, CE, and UL standards.
The power consumption is limited to 202mW.
The contacts are made of gold-plated material, which enhances conductivity and corrosion resistance.
It is suitable for applications in telecommunications, data processing devices, alarm systems, and precision measuring equipment.
