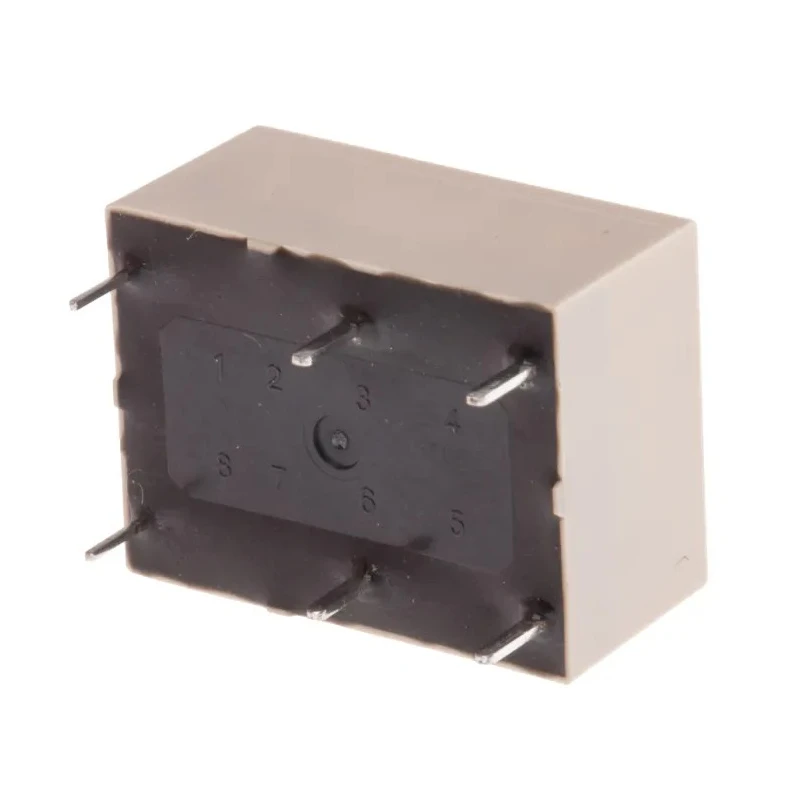

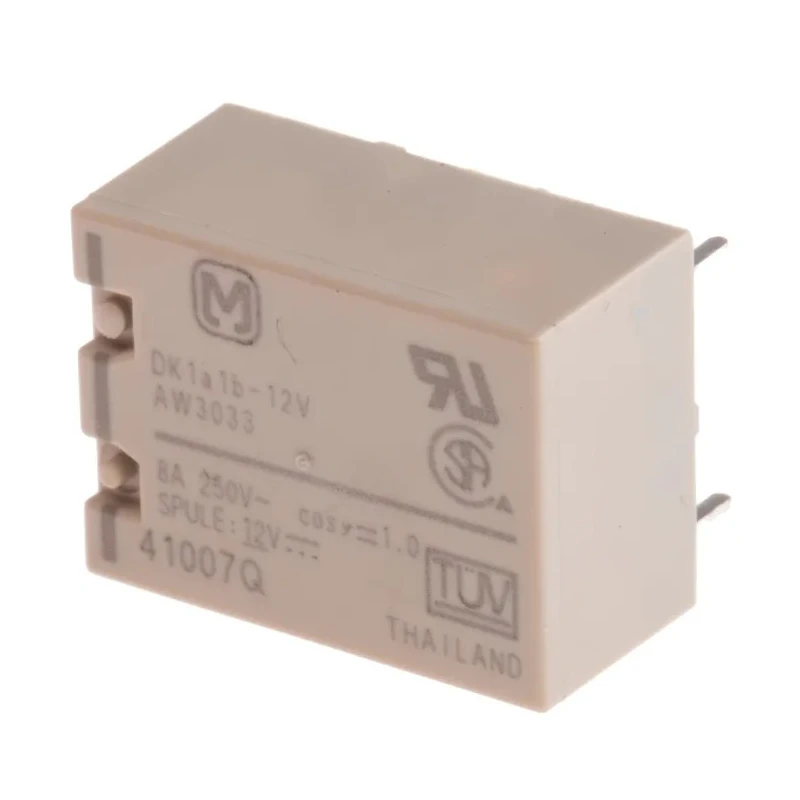

Panasonic PCB Power Relay 12V DC Coil 8A Switching Current DPST DK1A1B-12V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 9.7mm |
| Length | 20mm |
| Model | DK1A1B-12V |
| Width | 15mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | DK |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | DPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Through Hole |
| High Sensitivity | 200 mW nominal operating power |
| Contact Resistance | 30mΩ |
| Standards/Approvals | TUV, CSA, RoHS, UL, VDE |
| Coil Resistance | 720Ω |
| Coil Voltage | 12V dc |
| Switching DC Voltage | 125V dc |
| Switching AC Voltage | 125V ac |
| Coil Power | 200mW |
Key Features
- Operates at 12V DC coil voltage for efficient power control.
- Double Pole Single Throw (DPST) contact configuration ensures versatile switching.
- Switching current rated at 8A suitable for medium power applications.
- Compact PCB mount design for easy integration into electronic circuits.
- Sealed construction provides durability and allows automatic washing.
- Gold plated contacts reduce resistance and improve conductivity.
- Rated for switching voltages of 125V AC and 125V DC.
- Wide operating temperature range from -40°C to 65°C for reliable performance.
Product Description
Panasonic DK1A1B-12V is a high-quality PCB Power Relay featuring a 12V DC coil voltage and an 8A switching current. Its DPST (Double Pole Single Throw) contact configuration and compact through-hole PCB mount design make it suitable for a wide range of industrial and electronic applications such as power switching, PLCs, temperature controllers, timers, and home appliances.
This DK Series relay is designed with a sealed construction to enable automatic washing and high breakdown voltage characteristics. It offers high sensitivity, consuming only 200mW nominal operating power, and can withstand high surge voltage with 10,000V isolation between coil and contacts. The gold plated contacts ensure low contact resistance of 30mΩ, improving reliability and longevity.
The relay is rated for switching AC and DC voltages up to 125V with a switching power of 2kVA. It operates reliably across a temperature range from -40°C to 65°C and meets strict international certifications including TUV, CSA, RoHS, UL, and VDE. Typical dimensions are 9.7mm height, 20mm length, and 15mm width, making it compact for PCB mounting.
Operates at 12V DC coil voltage for efficient power control. Double Pole Single Throw (DPST) contact configuration ensures versatile switching. Switching current rated at 8A suitable for medium power applications. Compact PCB mount design for easy integration into electronic circuits.
Sealed construction provides durability and allows automatic washing. Gold plated contacts reduce resistance and improve conductivity. Rated for switching voltages of 125V AC and 125V DC. Wide operating temperature range from -40°C to 65°C for reliable performance.
High sensitivity with 200mW nominal coil power consumption. Complies with international standards including TUV, CSA, RoHS, UL, and VDE.
This relay is ideally used in industrial automation, electrical control systems, manufacturing equipment, HVAC devices, and other commercial electronics requiring reliable and compact power relay solutions.
EnvMart provides technical and reliable Panasonic Power Relays to support a variety of electronic and industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DK1A1B-12V relay operates at a coil voltage of 12V DC.
This model has a maximum switching current rated at 8A, making it suitable for medium power applications.
It is rated for switching voltages of 125V AC and 125V DC.
The relay features a Double Pole Single Throw (DPST) contact configuration, allowing for versatile switching options.
The relay has dimensions of 9.7mm in height, 20mm in length, and 15mm in width, making it compact for PCB mounting.
It has a high sensitivity with a nominal operating power consumption of 200mW.
The contacts are made of gold plated material, which reduces resistance and improves conductivity.
This relay operates reliably within a wide temperature range from -40°C to 65°C.
It uses a PCB mount type, designed for easy integration into electronic circuits.
The relay complies with several international standards, including TUV, CSA, RoHS, UL, and VDE.
The contact resistance is rated at 30mΩ, which contributes to its reliability.
The relay can withstand a high surge voltage with an isolation of 10,000V between the coil and contacts.
