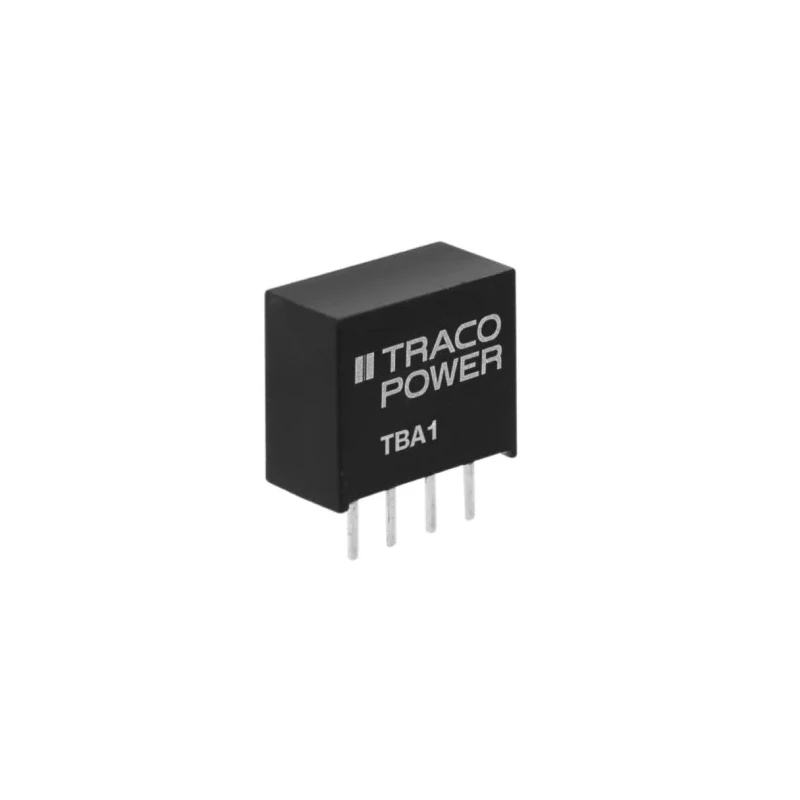

TRACOPOWER SIP-4 DC/DC Converter 15V 65mA 1W Input 21.6V-26.4V Operating Temp -40°C to 85°C TBA 1-2413
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TBA 1 DC/DC Converter, 15V/ 65 mA, 26 |
| Brand | TRACOPOWER |
| Efficiency | 82% |
| Length | 11.68mm |
| Model | TBA 1-2413 |
| Depth | 9.7mm |
| Width | 6mm |
| Mount Type | PCB |
| Series | TBA 1 |
| Maximum Operating Temperature | 85°C |
| Package Type | SIP-4 |
| Minimum Operating Temperature | -40°C |
| MTBF | 2000000h |
| Number of outputs | 1 |
| Maximum Output Power | 1W |
| Maximum Input Voltage | 26.4V |
| Minimum Input Voltage | 21.6V |
| Output Voltage 1 | 15V |
| Output Current 1 | 65mA |
| Isolation Voltage | 1.5kV |
| I/O isolation | 1500 VDC |
Key Features
- Operates over a wide input voltage range from 21.6V to 26.4V.
- Compact SIP-4 package design suitable for space-constrained PCB.
- High efficiency of up to 82% ensures low power loss.
- Operating temperature range from -40°C to 85°C without derating.
- Provides 1.5kV DC input/output isolation voltage for safety.
- Integrated continuous short circuit protection enhances reliability.
- MTBF rated at 2,000,000 hours for long service life.
- Unregulated DC output suitable for a variety of industrial and electronic uses.
Product Description
TRACOPOWER TBA 1-2413 is a high-quality SIP-4 DC/DC Converter designed for robust industrial and electronic applications. It provides a 15V output at 65mA with a maximum output power of 1 Watt, making it ideal for low power PCB mounted power conversion where high efficiency and reliability are required. It operates from input voltages ranging between 21.6V and 26.4V, accommodating a wide supply range.
This converter offers an operating temperature window from -40°C to 85°C without power derating, allowing for use in diverse environmental conditions. With an efficiency rating of up to 82%, it provides effective power conversion while minimizing energy loss.
The TBA 1-2413 offers galvanic isolation rated at 1.5kV DC between input and output, enhancing safety in sensitive electronic and industrial equipment. It features built-in continuous short circuit protection to ensure durability and system protection. The unit's mean time between failures (MTBF) of 2 million hours underlines its reliability for long-term deployment.
The compact SIP-4 package with dimensions 11.68mm length, 6mm width, and 9.7mm depth allows easy integration on printed circuit boards with limited space. The unregulated output voltage design is suitable for a range of industrial, laboratory, instrumentation, manufacturing, and commercial applications requiring isolated power supplies.
Wide input voltage range: 21.6V to 26.4V. Galvanic isolation of 1.5kV DC enhances electrical safety. Operating temperature from -40°C up to 85°C ensures versatility. Compact SIP-4 package for easy PCB mounting. High efficiency of 82% optimizes energy usage.
Continuous short circuit protection improves robustness. Rated MTBF of 2,000,000 hours guarantees reliability. Unregulated output suitable for general DC power needs.
This DC/DC converter is an excellent choice for engineers and designers in electronics, manufacturing, industrial control, automation, and HVAC sectors who require a compact, reliable, and efficient power supply solution. It is manufactured in China maintaining strict quality standards.
Browse the Electronics & Electricals category at EnvMart for more DC/DC Converters and related power supply devices that meet rigorous industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 21.6V to 26.4V.
This unit provides an output voltage of 15V with a maximum output current of 65mA.
It has an efficiency rating of up to 82%, which helps minimize energy loss during operation.
The dimensions of the SIP-4 package are 11.68mm in length, 6mm in width, and 9.7mm in depth.
The operating temperature range is from -40°C to 85°C, allowing for use in various environmental conditions.
This converter is designed for PCB mounting, making it suitable for space-constrained applications.
It offers a galvanic isolation voltage of 1.5kV DC between the input and output, enhancing safety.
The MTBF for this model is rated at 2,000,000 hours, indicating its reliability for long-term deployment.
Yes, it features integrated continuous short circuit protection to enhance reliability and system protection.
This model is suitable for a variety of industrial, laboratory, instrumentation, manufacturing, and commercial applications requiring isolated power supplies.
This converter is part of the TBA 1 series by TRACOPOWER.
It is manufactured in China, adhering to strict quality standards.
