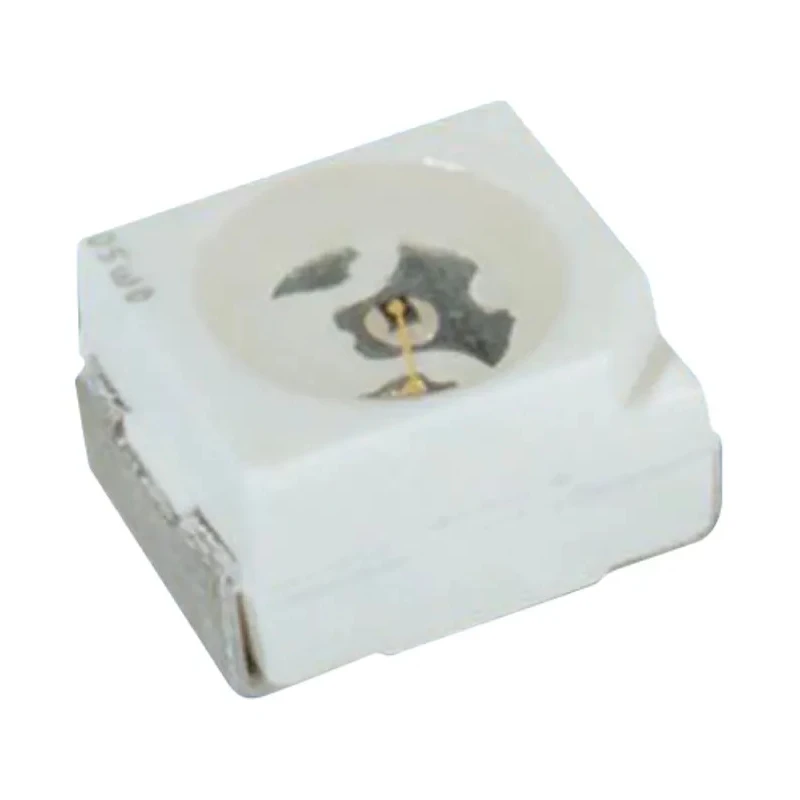

Broadcom 1.9 V Amber LED PLCC 2 Surface Mount Tape & Reel Packaging HSMA-A100-Q00J1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HSMA-A100-Q00J1 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | HSMx |
| Maximum forward current | 30mA |
| Viewing angle | 120 ° |
| Package Type | PLCC 2 |
| Standards/Approvals | RoHS |
| LED Colour | Amber |
| Dominant Wavelength | 590nm |
| Forward Voltage | 1.9V |
| Number of Pins | 2 |
| LED Luminosity | 100 mcd |
| Maximum Power Dissipation | 63mW |
| Lens Dimensions | 3.2 x 2.8 mm |
| Lens Shape | Round |
| Lens Finish | White |
Key Features
- This LED features a surface mount PLCC 2 package with tape and reel packaging.
- It has a maximum forward current of 30 mA and maximum power dissipation of 63 mW.
- The LED emits amber light with a dominant wavelength of 590 nm.
- Viewing angle is a wide 120 degrees for effective illumination.
- The lens is round with white finish and dimensions of 3.2 x 2.8 mm.
- The LED is RoHS compliant and designed for use in electronic components and displays.
- It is part of the HSMx series optimized for high reliability and automotive interior use.
Product Description
Broadcom HSMA-A100-Q00J1 is a high-reliability Surface Mount Technology (SMT) LED in a compact PLCC 2 package designed for use in electronic components, power connectors, displays, and optoelectronics applications. Operating at a forward voltage of 1.9 V, this amber LED provides a luminous intensity of 100 mcd and features a wide 120° viewing angle, making it ideal for back-lighting and sign illumination.
The LED package measures 3.2 x 2.8 mm with a round white lens finish which enhances optical performance and ease of integration with light pipes. It supports a maximum forward current of 30 mA and a maximum power dissipation of 63 mW, ensuring durability and suitability for a range of industrial and automotive applications.
This LED is part of the Avago Technologies HSMx-A10x series, engineered for harsh interior automotive environments and interior signage uses. The built-in reflector increases light output efficiency, making it particularly suited for LED pixels in electronic signs and displays.
The product is RoHS compliant, ensuring environmental safety. Packaging is supplied in tape and reel format to facilitate automated manufacturing processes and improve production efficiency.
This LED features a surface mount PLCC 2 package with tape and reel packaging. It has a maximum forward current of 30 mA and maximum power dissipation of 63 mW. The LED emits amber light with a dominant wavelength of 590 nm.
Viewing angle is a wide 120 degrees for effective illumination. The lens is round with white finish and dimensions of 3.2 x 2.8 mm. The LED is RoHS compliant and designed for use in electronic components and displays. It is part of the HSMx series optimized for high reliability and automotive interior use.
This product is ideal for industrial, automotive interior lighting, electronic signage, manufacturing, and laboratory instrumentation applications. Explore more electronic components and LEDs on EnvMart for your projects and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current for this model is 30 mA.
This LED emits amber light with a dominant wavelength of 590 nm.
It features a wide viewing angle of 120 degrees for effective illumination.
The LED package measures 3.2 x 2.8 mm.
It is supplied in tape and reel packaging, which facilitates automated manufacturing processes.
The maximum power dissipation is 63 mW.
The luminous intensity of this model is 100 mcd.
This LED uses a surface mount type.
Yes, this LED is RoHS compliant, ensuring it meets environmental safety standards.
It is part of the HSMx series, which is optimized for high reliability and automotive interior use.
The forward voltage for this model is 1.9 V.
This LED is suitable for use in electronic components, displays, and automotive interior lighting.
