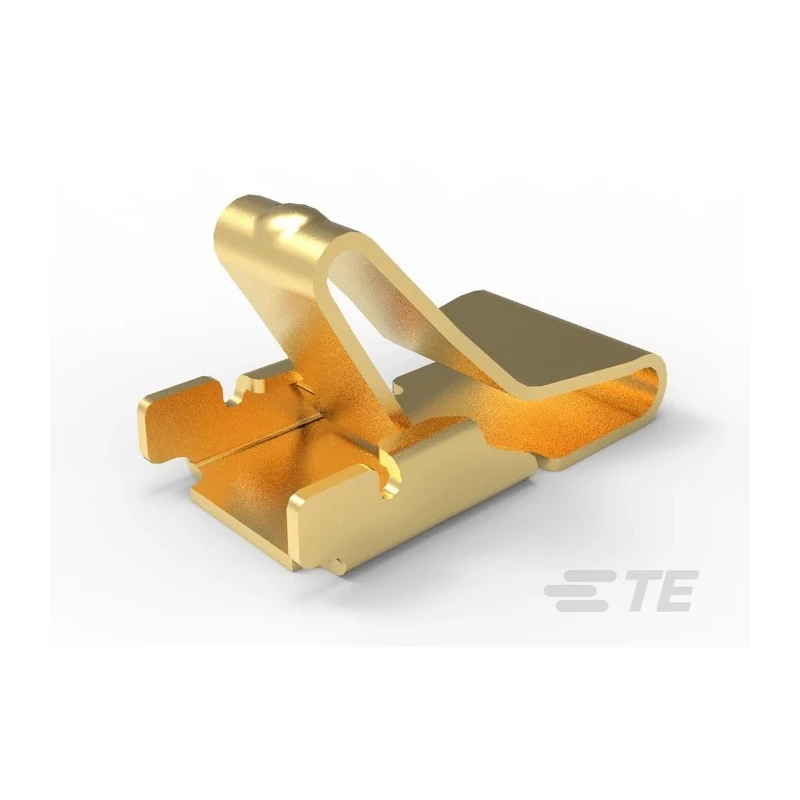

TE Connectivity 1.2 mm Stainless Steel Surface Mount Grounding Contact with Gold Plating 2306334-3

TE Connectivity 2306334-3 is a high-quality grounding contact designed for surface mount applications on printed circuit boards. Made from durable stainless steel with gold plating, this grounding contact ensures excellent conductivity and corrosion resistance. With a compact height of 1.2 mm, length of 2 mm, and width of 1 mm, it is well suited for space-constrained electronic assemblies.

Optimized for power and signal circuitry, the contact supports up to 1 Ampere current with a low contact resistance of 50 milliohms. The ultra small C-clip spring finger type provides effective side protection while maintaining reliable and stable connections in board-to-board connector systems.

This grounding contact complies with RoHS standards, making it suitable for environmentally conscious electronics manufacturing. The product is packaged in tape and reel format, facilitating automated pick-and-place assembly processes in industrial, commercial, and laboratory settings.

Typical applications include electronic component prototyping, ESD control circuits, and PCB prototyping boards. As a crucial component for grounding and shielding, it enhances the overall electrical performance and safety of electronic devices.

Designed for board-to-board connector systems with printed circuit board termination. Offers a contact resistance of 50 milliohms ensuring reliable electrical connection. Rated for current carrying capacity of 1 Ampere suitable for power and signal circuits.

Compact dimensions with a height of 1.2 mm, length of 2 mm, and width of 1 mm. Features ultra small C-clip spring finger type with side protection for durability. RoHS compliant and manufactured in China for quality assurance.

Packaged in tape and reel for ease of handling and assembly automation. Explore more Grounding Contacts and electronic components at EnvMart for your technical and industrial requirements.
