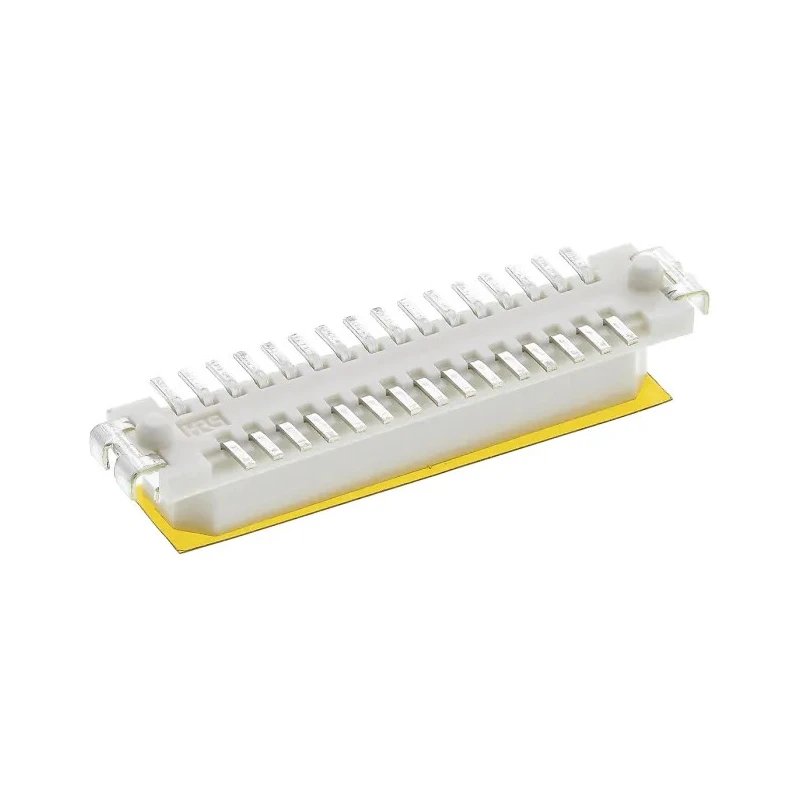

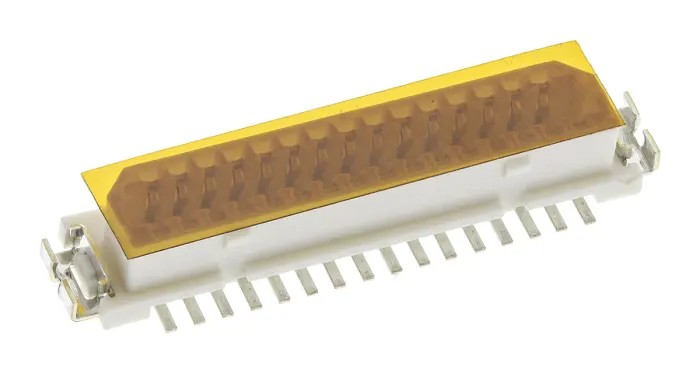

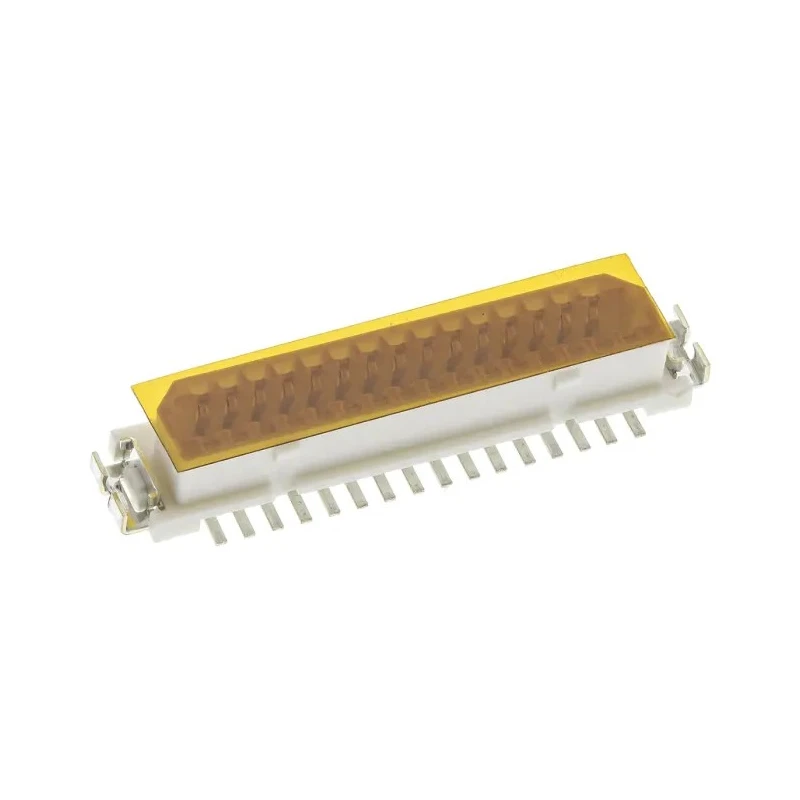

Hirose DF9 Series Straight Surface PCB Socket 31-Contact 2 Row 1 mm Pitch Solder DF9-31S-1V(32)
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 150V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 500mA |
| Model | DF9-31S-1V(32) |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper |
| Series | DF9 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -45°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Contact Plating | Tin |
| Number of Contacts | 31 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Complies with VESA FPDI-1 standard for LCD display interfaces.
- Trapezoidal shaped mating interface prevents misinsertion.
- Easy lock mechanism ensures secure mating with tactile feedback.
- Features metal fittings on SMT versions for robust PCB attachment.
- Compact design with 4.3 mm stacking height for space-saving applications.
- Mounting bosses hold the connector in place during soldering and manual placement.
- Capable of handling 500mA current and 150V operating voltage.
- Operating temperature range from -45°C to 125°C for reliable performance.
Product Description
Hirose DF9-31S-1V(32) PCB Socket is a high-quality surface mount connector featuring 31 contacts in 2 rows with a 1 mm pitch solder termination. This connector is engineered to meet the VESA FPDI-1 standard interface for LCD displays, ensuring industry-compliant performance and compatibility.
The DF9 series connectors feature a trapezoidal mating interface that prevents misinsertion and incorporates an easy lock mechanism that provides secure mating with a tactile click feedback to confirm correct connection. Mounting bosses help hold the socket firmly during soldering or manual placement, enhancing assembly reliability.
Constructed with a polyamide housing and copper contacts plated with tin, this board-to-board connector supports current up to 500mA and voltage ratings up to 150V. It operates reliably within a temperature range of -45°C to 125°C, suitable for diverse industrial and electronic applications.
The SMT socket features metal fittings that secure the connector to the PCB, preventing solder joint damage from mechanical stress. Its compact 4.3 mm stacking height makes it ideal for space-constrained designs in portable equipment, POS terminals, measurement instruments, and handheld devices.
Complies with VESA FPDI-1 standard for LCD display interconnections. Trapezoidal mating design prevents misinsertion. Easy lock mechanism offers tactile confirmation. Mounting bosses secure connector during soldering. Metal fittings enhance PCB attachment strength.
Supports 500mA current and 150V voltage. Wide operating temperature range from -45°C to 125°C. Polyamide housing with copper and tin-plated contacts. Compact 4.3 mm stacking height for tight spaces.
This Hirose DF9 Series PCB socket is suitable for industrial electronics, manufacturing, and laboratory equipment where reliable board-to-board connections are essential. It supports multiple demanding applications such as in portable devices, display technology, and test instrumentation.
Explore Hirose connectors and PCB Sockets across the EnvMart platform for a broad range of electrical and electronic components built to industry standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 500mA.
The voltage rating for the DF9-31S-1V(32) is 150V.
It operates reliably within a temperature range of -45°C to 125°C.
This PCB socket features 31 contacts arranged in 2 rows.
The DF9-31S-1V(32) uses solder termination.
It has a polyamide housing and copper contacts that are plated with tin.
The compact design features a stacking height of 4.3 mm, making it suitable for space-saving applications.
Yes, it complies with the VESA FPDI-1 standard for LCD display interfaces.
This model is a board-to-board connector.
The easy lock mechanism provides secure mating with tactile feedback to confirm a correct connection.
The orientation of this model is straight.
Mounting bosses help hold the connector in place during soldering and manual placement, enhancing assembly reliability.
