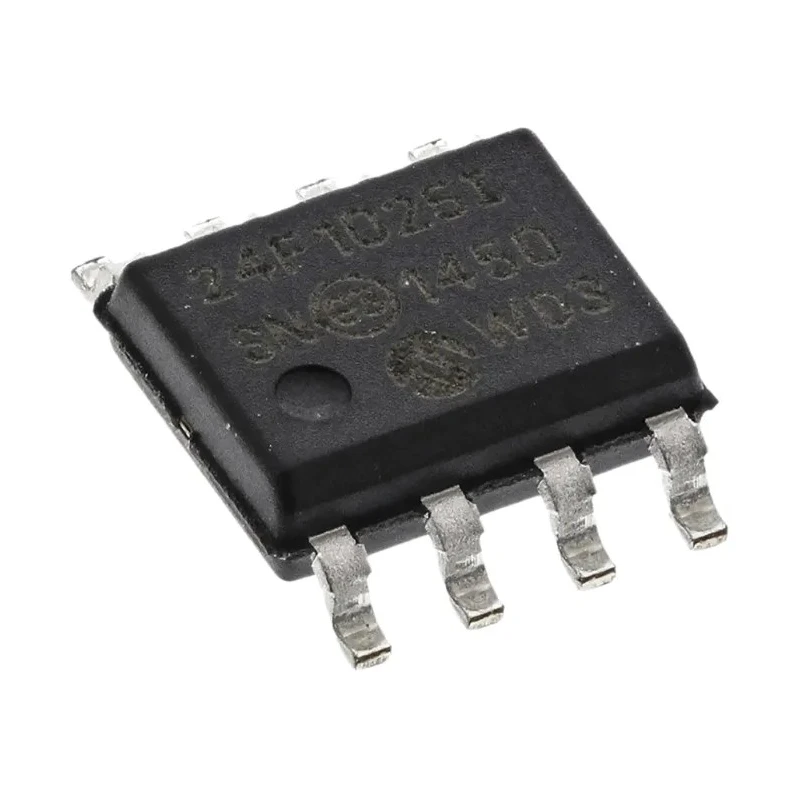

Microchip 1 MB Serial EEPROM 900 ns 8-Pin SOIC Serial-2 Wire 24FC1025-I/SN

Microchip 24FC1025-I/SN is a high-density 1 MB Serial EEPROM designed for industrial, automotive, consumer electronics, and embedded system applications. It features a fast 900 ns access time and uses a Serial-2 Wire interface compliant with I²C protocol to enable efficient and straightforward system communication.

Encapsulated in an 8-pin SOIC package, this EEPROM supports surface mount technology, facilitating automated assembly and compact PCB layouts. The device operates over a wide voltage range of 1.8 V to 5.5 V, making it suitable for diverse supply systems and power management designs.

With a maximum clock frequency of 1 MHz and organization of 128K x 8 bits, it allows for substantial non-volatile data storage for factory calibration data, system parameters, and other persistent data requirements. The EEPROM supports a broad temperature range from -40°C to 85°C ensuring stability and reliability in harsh environments.

Its adherence to the automotive AEC-Q100 standard signifies ruggedness and suitability in critical automotive electronics applications. The device has a low typical supply current of 450 μA and offers data retention for up to 200 years, allowing it to serve long-term embedded system memory needs effectively.

Memory capacity of 1MB organized as 128K x 8 bits for efficient data storage. Operates with a maximum clock frequency of 1 MHz to support rapid data access. Supplies voltage range from 1.8 V to 5.5 V ensuring compatibility with various systems.

Features a serial-2 wire interface enabling simple integration in I²C bus systems. Compact dimensions with 4.9 mm length and 6 mm width suited for space-constrained applications. Supports wide operating temperature from -40°C to 85°C for reliable industrial performance.

Designed according to automotive AEC-Q100 standard to meet stringent quality requirements. Low supply current of 450 μA and data retention capability of 200 years. Maximum random access time of 900 ns enabling fast memory operations.

Pin count of 8 pins compatible with standard SOIC footprints.

This EEPROM is ideal for use in industrial control systems, automotive electronics, consumer devices, and communication equipment requiring reliable and compact non-volatile memory solutions. Its easy integration, quality compliance, and robust performance make it a preferred choice among designers.
