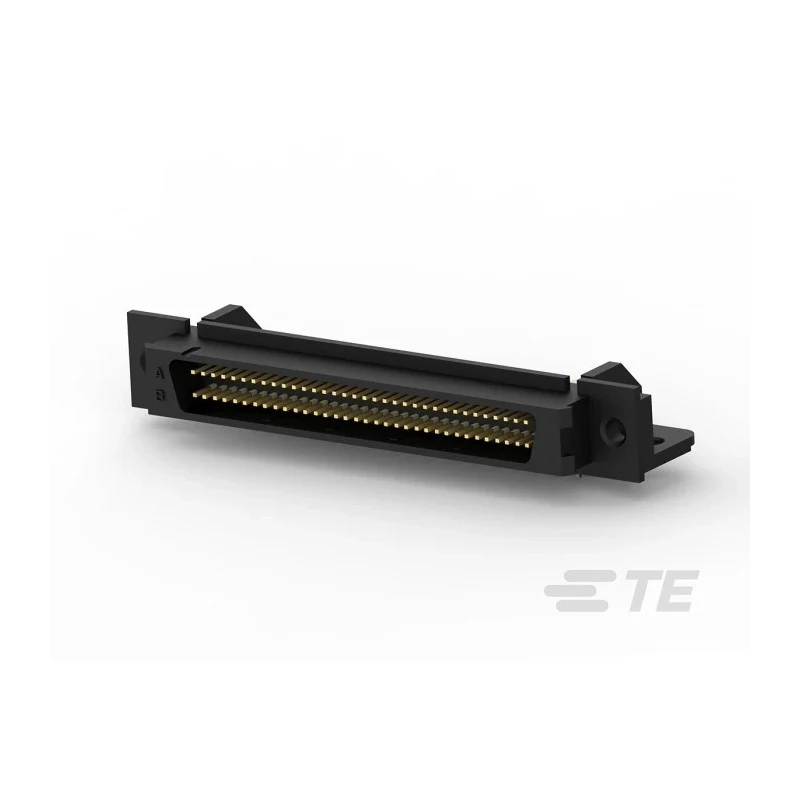

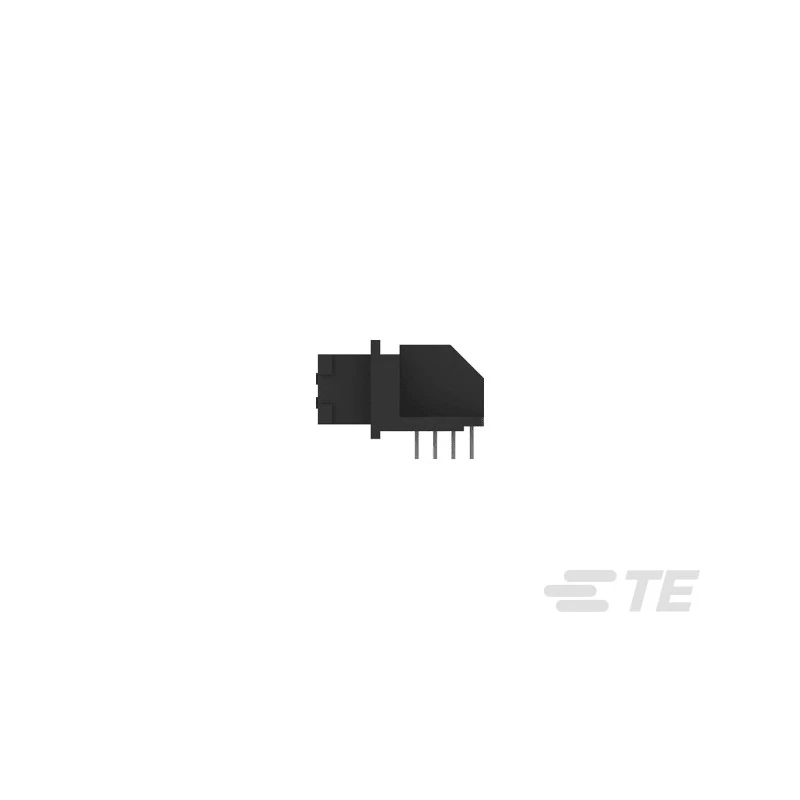

TE Connectivity D-Sub 68 Way Right Angle Through Hole Male Connector, Standard Housing, Polybutylene 2-5174225-5
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | D-Sub |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 68 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
Key Features
- The connector features a full metal shell and a standard profile suitable for cable-to-board applications.
- Contacts are made from phosphor bronze and plated with gold for superior conductivity and corrosion resistance.
- Housing is made from polybutylene terephthalate to ensure durability and UL 94V-0 flammability rating.
- Operating temperature ranges from -55°C to 105°C, supporting industrial and electronic applications.
- The connector supports signal circuits with 68 positions arranged in 2 rows with 1.27 mm pitch.
- Termination is through hole solder type with mounting hole retention for secure PCB attachment.
- Includes plating materials such as nickel over copper shielding and tin over nickel posts for robust performance.
- Manufactured in Japan with RoHS compliance and standard D-Sub series specifications.
Product Description
TE Connectivity 2-5174225-5 is a high-quality D-Sub 68 Way Right Angle Male Connector designed for reliable electronic applications requiring signal transmission through PCB mounting.
This connector features a right-angle orientation with through-hole solder termination, enabling stable and secure mounting on printed circuit boards in industrial, manufacturing, and electronic assembly environments.
The housing is constructed from polybutylene terephthalate, offering excellent mechanical strength and compliance with UL 94V-0 flammability rating, enhancing safety and durability under diverse environmental conditions.
Contacts are crafted from phosphor bronze with gold plating on the contact mating area to ensure excellent electrical conductivity and resistance against corrosion and wear, supporting signal integrity in demanding use cases.
Additional plating includes nickel over copper on the shield and tin over nickel on termination posts, improving shielding and solderability. Operating temperature ranges from -55°C to 105°C, making it versatile for a wide range of industrial and electronic applications that need temperature resilience.
The connector features 68 contacts arranged in 2 rows, with a pitch of 1.27 mm, designed for signal circuit usage, packaged in sets of four units for batch assembly. The connector has a full metal shell for EMI shielding and mechanical protection.
Connector style is a plug intended for cable-to-board connections. Mating connector lock ensures secure connections and reliable signal paths. Mounting holes provide retention and stability on the PCB. This product complies with RoHS directives, reflecting commitment to environmental safety.
Manufactured in Japan, ensuring high manufacturing standards and quality assurance.
This TE Connectivity D-Sub Connector model 2-5174225-5 is suitable for applications in industrial automation, telecommunications, data acquisition, instrumentation, and other electronic assembly domains.
EnvMart offers this precision connector for professionals seeking robust and reliable PCB connectors conforming to international standards.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range of this model is from -55°C to 105°C, making it suitable for various industrial and electronic applications.
This connector features 68 contacts arranged in 2 rows, designed for signal circuit usage with a pitch of 1.27 mm.
The housing is made from polybutylene terephthalate, while the contacts are crafted from phosphor bronze and plated with gold for enhanced conductivity and corrosion resistance.
It utilizes a through hole solder termination type, which ensures secure mounting on printed circuit boards.
Yes, this model complies with RoHS directives, reflecting its commitment to environmental safety.
The connector features a right-angle orientation, making it suitable for specific space-constrained applications.
The full metal shell provides EMI shielding and mechanical protection, enhancing the reliability of the signal transmission.
This connector is manufactured in Japan, ensuring high manufacturing standards and quality assurance.
It is a male connector designed for cable-to-board connections, ensuring secure and reliable signal paths.
In addition to gold plating on the contacts, it includes nickel over copper shielding and tin over nickel on the termination posts for improved performance.
This model is suitable for applications in industrial automation, telecommunications, data acquisition, instrumentation, and electronic assembly.
The housing material has a UL 94V-0 flammability rating, indicating its suitability for various applications requiring fire safety compliance.
