| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Model | 794955-1 |
| Gender | Male |
| Contact Material | Brass |
| Series | VAL-U-LOK |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | VAL-U-LOK Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 20mΩ |

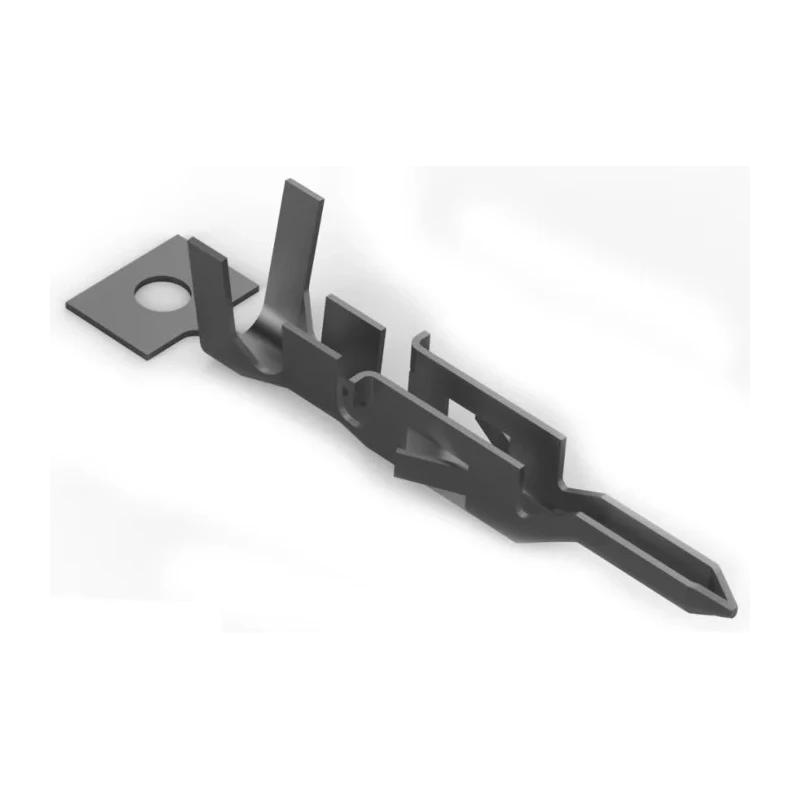

TE Connectivity 794955-1 VAL-U-LOK Series Male Crimp Terminal is engineered for secure and reliable connections in electronic and industrial applications. Designed specifically for use with VAL-U-LOK connector housings, this male crimp terminal supports wire sizes ranging from 22 AWG (0.3 mm²) to 18 AWG (0.8 mm²), making it versatile for a range of wiring requirements.
The terminal features a brass body with tin-plated contacts, delivering excellent corrosion resistance and durability to maintain connection integrity over time. It supports a current rating of 3 Amperes and operates efficiently in temperature environments from -40°C to 105°C, suitable for demanding industrial and electronic environments.
Termination is done via crimping, providing strong mechanical and electrical connections. The maximum contact resistance is limited to 20 milliohms, ensuring minimal signal and power loss. This component is intended for male contact gender applications within the VAL-U-LOK connector series.
This product is ideal for use in industrial automation, electronic assembly, PCB connections, and various manufacturing processes where reliable power and signal transmission is critical. TE Connectivity offers comprehensive technical documentation, including RoHS certificates and conformity statements, to assist in design and compliance efforts.
Compatible with VAL-U-LOK Connector Housing for reliable electrical connections. Constructed from brass with tin-plated contacts ensuring corrosion resistance. Supports wire sizes from 22 AWG (0.3 mm²) up to 18 AWG (0.8 mm²).
Maximum contact resistance of 20 milliohms ensures low electrical loss. Termination type is crimp for secure mechanical and electrical connection. Operates in temperature ranges from -40°C up to 105°C for versatile applications.
Designed as male gender pin contact for Val-U-Lok connector systems. Ideal for industrial, electronic, and PCB connector wiring assemblies. Supported by comprehensive technical documentation and design resources. Browse the Electronics Components category at EnvMart for more industrial-grade connectors and crimp terminals by TE Connectivity and other leading manufacturers.
