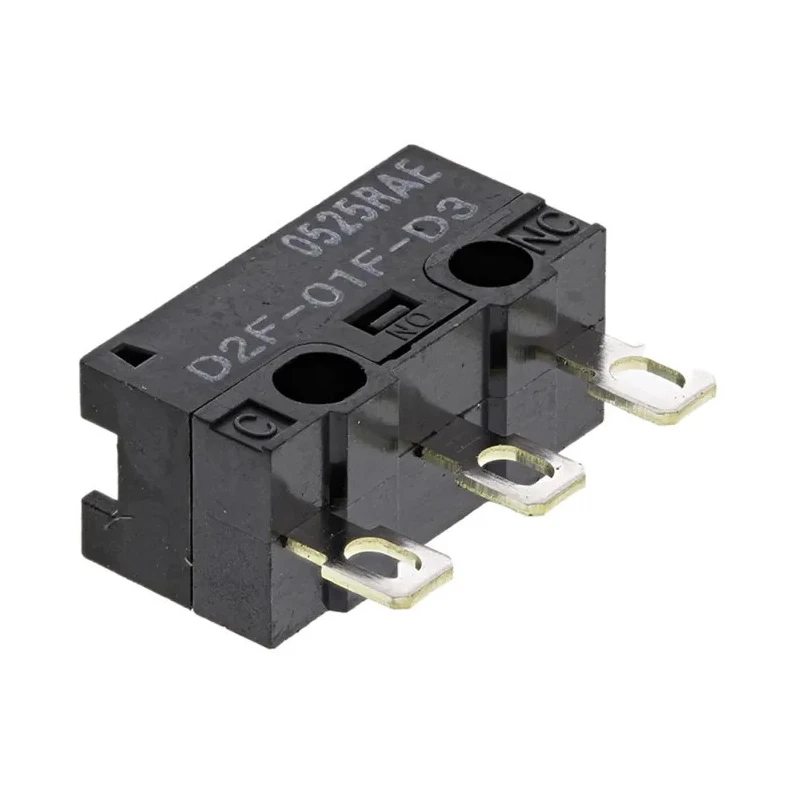

Omron Ultra Subminiature Pin Plunger Micro Switch, Solder Terminal, 100mA, 30 V dc, SPDT, IP40 D2F-01F-D3
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Omron |
| Length | 12.8mm |
| Model | D2F-01F-D3 |
| IP Rating | IP40 |
| Approvals | UL & CSA |
| Series | D2F |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPDT |
| Actuator Type | Pin Plunger |
| Contact Rating | 3A @125Vac with silver contacts and 0.1A @ 30Vdc with gold contacts |
| Minimum Operating Temperature | -25°C |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Contact DC Voltage | 30V dc |
| Switch Contact Current | 100mA |
| Operating Force | 0.74N |
| Mechanical Life | 1000000Operations |
| Microswitch Type | Ultra Subminiature |
| Omron Pin Plunger Micro Switch, Solder Terminal, 100mA, 30 V dc, SPDT, IP40Brand | Omron |
Key Features
- Designed for home appliances, audio, and communication equipment applications.
- Features a pin plunger actuator type with solder terminal for secure connections.
- Operates at 100mA contact current and 30 V dc contact voltage.
- IP40 rated for protection against solid objects exceeding 1mm.
- Operating force is 0.74N ensuring responsive actuation.
- Mechanical life rated at 1,000,000 operations for durability.
- Temperature range accommodates -25°C to 65°C for varied environments.
- Complies with RoHS standards and has UL & CSA approvals.
Product Description
The Omron D2F-01F-D3 Ultra Subminiature Pin Plunger Micro Switch is engineered for use in electrical automation, home appliances, audio equipment, and communication devices. Featuring a solder terminal and a pin plunger actuator, this micro switch ensures reliable snap action and precise control with a SPDT contact configuration.
It supports a contact current of 100mA and a contact voltage of 30 V dc, making it suitable for low power switching tasks. The IP40 rating protects against solid ingress larger than 1mm, ensuring operational safety in typical indoor environments.
With an operating force of just 0.74 Newtons, it provides efficient actuation while offering a mechanical life expectancy of one million operations, confirming its reliability and durability in rigorous applications.
The switch covers an operating temperature range from -25°C to 65°C, allowing functionality in diverse temperature conditions. RoHS compliance demonstrates environmental consideration in line with international standards, while UL and CSA approvals signify adherence to key safety regulations.
Designed for home appliances, communication and audio equipment applications. Pin plunger type actuator with solder terminal connections. SPDT contact configuration delivering snap action switching. 100mA contact current rating at 30 V dc contact voltage.
IP40 ingress protection rating for solid particle resistance. Operating force of 0.74N for responsive switching. Rated mechanical life of 1,000,000 operations for extended durability. Operating temperature range from -25°C to 65°C.
RoHS compliant and approved by UL and CSA standards.
This Micro Switch is ideal for industrial, laboratory, and commercial electric switching applications requiring high reliability and compact size. Its manufacture in Japan guarantees quality assurance.
Explore the comprehensive range of Omron electrical switches and micro components available at EnvMart for your automation and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact rating is 3A at 125Vac with silver contacts and 0.1A at 30Vdc with gold contacts.
The operating force for this model is 0.74 Newtons, ensuring responsive actuation.
This micro switch has a mechanical life rated at 1,000,000 operations, indicating its durability.
It operates effectively within a temperature range of -25°C to 65°C.
The D2F-01F-D3 features a pin plunger actuator type, suitable for various applications.
The switch has an IP40 rating, providing protection against solid objects larger than 1mm.
It is compliant with RoHS standards and has UL & CSA approvals, ensuring adherence to safety regulations.
This model features a solder terminal type for secure connections.
The contact configuration is SPDT (Single Pole Double Throw), allowing for versatile switching applications.
This micro switch is manufactured in Japan, ensuring quality assurance.
It is designed for use in home appliances, audio equipment, and communication devices.
The maximum operating voltage for the D2F-01F-D3 is 30V dc.
