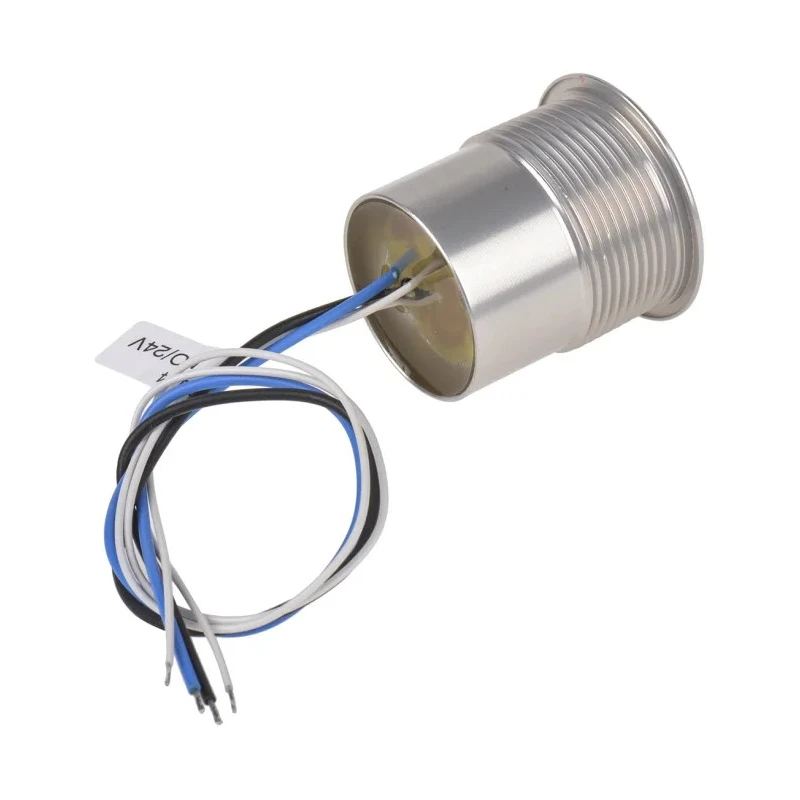

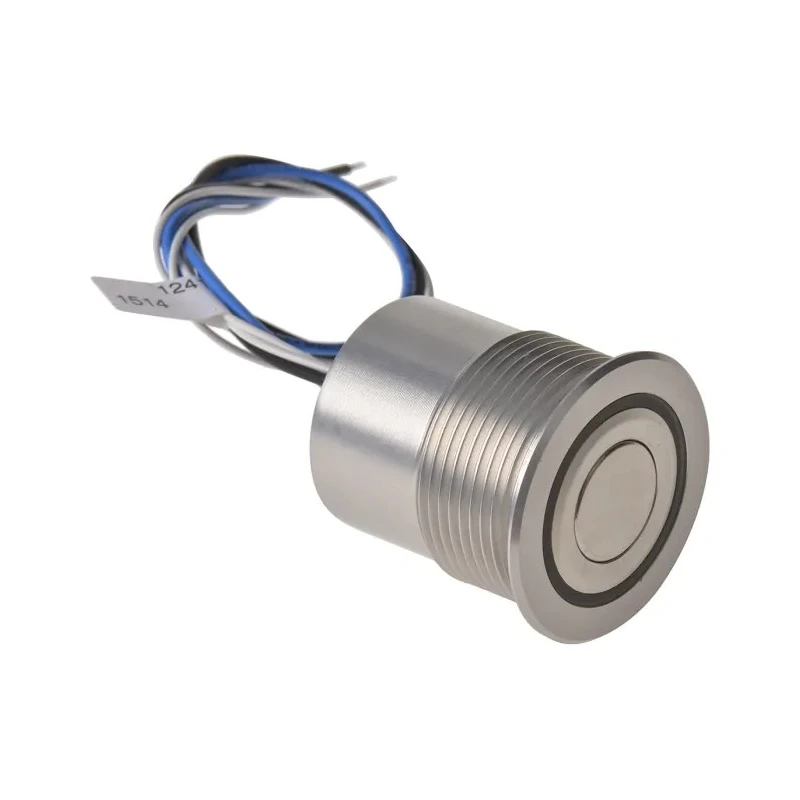

Schurter MCS 30 Series Illuminated Momentary Push Button Switch, Panel Mount, 30 mm Cutout, DPDT, Blue LED, IP40 795-7994

Schurter 795-7994 is an MCS 30 Series Illuminated Momentary Push Button Switch designed for precise control in electrical and automation applications. It features a robust metal line switch construction with a flat front design and metal actuator in a silver finish, providing a professional and durable panel interface.

This panel-mount push button switch requires a 30 mm cutout for installation and supports DPDT (Double Pole Double Throw) contact configuration, enabling complex switching capabilities suitable for industrial control panels.

The switch is momentary type, activating only while pressed, making it ideal for control and signaling use cases. It includes a blue LED for ring illumination, improving visibility and status indication in various lighting conditions.

Electrical ratings include a switching voltage of up to 48 V DC and 250 V AC with a maximum contact current of 125 mA. Terminal connections use flexible wire type, which eases the installation process.

IP ratings IP40, IP65, and IP67 certify the switch's protection against dust and water ingress, suiting it for demanding industrial, manufacturing, and automation environments that require reliable performance under harsh conditions.

Operating temperature ranges from -20°C to 60°C, ensuring stable function in diverse climate settings. The switch conforms to internationally recognized standards including RoHS, CSA, and UL, attesting to its quality and safety.

The legend marking is optional and comes without lettering, allowing for customization as per panel requirements. This product is ideal for industrial control panels, electrical instrumentation, and automated machinery control applications, where illuminated indication and reliable momentary switching are essential.

For those sourcing industrial electrical components, the Schurter MCS 30 Series offers a high-quality, versatile switch solution. Explore more from the Push Button Switches & Components category for compatible accessories and complementary products.

Features a silver actuator with a flat front metal design for durability. Provides momentary switch operation suitable for panel mounting. Includes blue LED illumination with ring illumination options. Rated for 48V DC and 250V AC switching voltages at 125mA current.

Offers IP40, IP65, and IP67 ingress protection for versatile environments. Operates reliably between -20°C to 60°C temperatures. Constructed with wire terminal type and DPDT contact configuration. Complies with RoHS, CSA, and UL safety standards.

Legend marking optional without lettering for customization.
