Omron Tactile Switch Button SPST 50mA 24V DC Through Hole 0.8 mm Actuator B3S-1100P

Name: Omron Tactile Switch Button SPST 50mA 24V DC Through Hole 0.8 mm Actuator B3S-1100P
Brand: Omron
SKU: 101491
Price: 70.4 INR
Availability: InStock



Category Tactile Switch Brand Omron Condition New

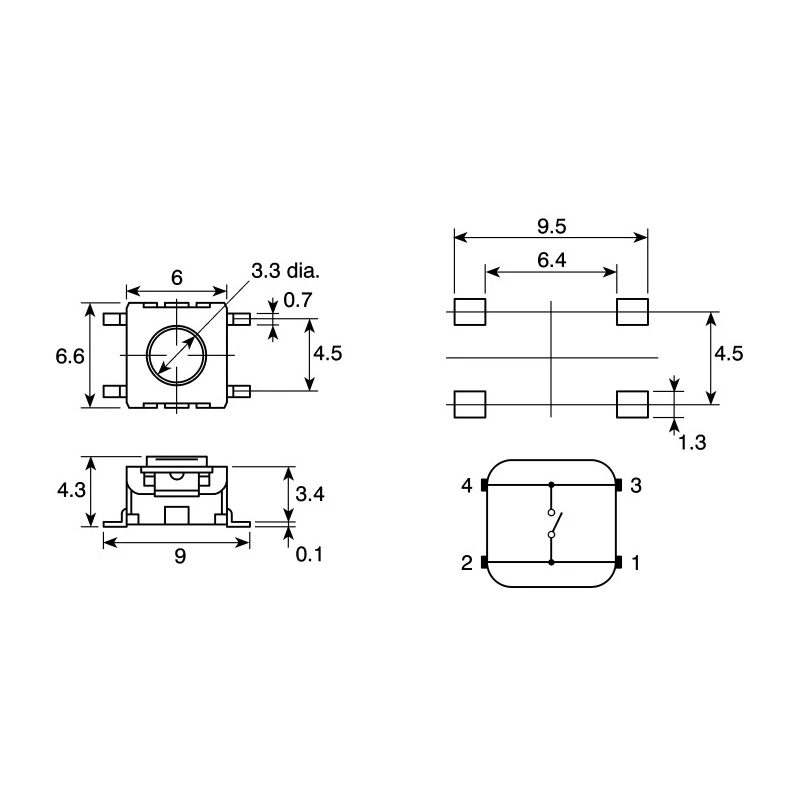

Specifications

Country of Origin	China
Brand	Omron
Height	4.3mm
Length	6.6mm
Model	B3S-1100P
Width	6mm
Mount Type	Through Hole
Series	B3S1000
Maximum Operating Temperature	70°C
Contact Configuration	SPST
Minimum Operating Temperature	-25°C
Terminal type	Surface Mount
Standards/Approvals	RoHS
Actuator Length	0.8mm
Contact DC Voltage	24V dc
Actuator Style	Button
Switch Contact Current	50mA
Operating Force	1.57N
Mechanical Life	500000Operations
Reflow temperature	235°C, 10 secs max
Omron Tactile Switch Button, 0.8 mm, SPST 50mA 24 V dc, Through HoleBrand	Omron

Key Features

Operates at 50mA with a contact DC voltage of 24V dc.
Through hole mount type providing strong mechanical fixation.
Actuator style is a button with a 0.8 mm actuator length.
Designed for a mechanical life of 500,000 operations ensuring long-term durability.
Operating temperature range from -25°C to 70°C adds environmental versatility.
Dielectric strength exceeding 500Vac for robust insulation.
Sealed construction suitable for immersion washing after soldering.
Mount type is through hole and terminal type is surface mount.

Product Description

Omron B3S-1100P tactile switch button is a high-quality component designed for precise momentary switching applications. Featuring a SPST contact configuration and a compact 0.8 mm button actuator, this switch supports currents up to 50mA and voltages of 24V DC, providing reliable performance in diverse electronic circuits.

Its through-hole mount type ensures stable and secure installation on printed circuit boards, complemented by a surface mount terminal type for efficient electrical connections. The switch offers a mechanical life expectancy of 500,000 operations, providing longevity in both industrial and consumer electronics.

Engineered to withstand a wide operating temperature range from -25°C to 70°C, the B3S-1100P is suitable for applications in harsh environments. It delivers tactile feedback with an operating force of 1.57 Newtons, facilitating precise user control.

The switch features a sealed construction design that allows for immersion washing processes after soldering, enhancing manufacturing efficiency. Dielectric strength exceeds 500Vac for one minute, and insulation resistance is greater than 100MΩ at 250V DC, assuring electrical safety and reliability.

Omron, a globally trusted brand, manufactures this tactile switch in China under strict quality controls and RoHS compliance standards. Typical uses include industrial automation, laboratory equipment, consumer electronics, and control panels requiring reliable momentary contact switching functionality.

Operates at 50mA with a contact DC voltage of 24V DC. Through hole mount type provides strong mechanical fixation. Mechanical life of up to 500,000 operations ensures durability. Operating force of 1.57N delivers tactile feedback.

Wide operating temperature range of -25°C to 70°C. Sealed construction suitable for immersion washing after soldering. Dielectric strength of greater than 500Vac for one minute. Insulation resistance exceeding 100MΩ at 250V DC.

Complies with RoHS environmental standards. Suitable for electronic control, automation, and consumer devices. Explore more Tactile Switches and related electronic components in EnvMart's Electronics & Electricals category for your precision switching needs.
