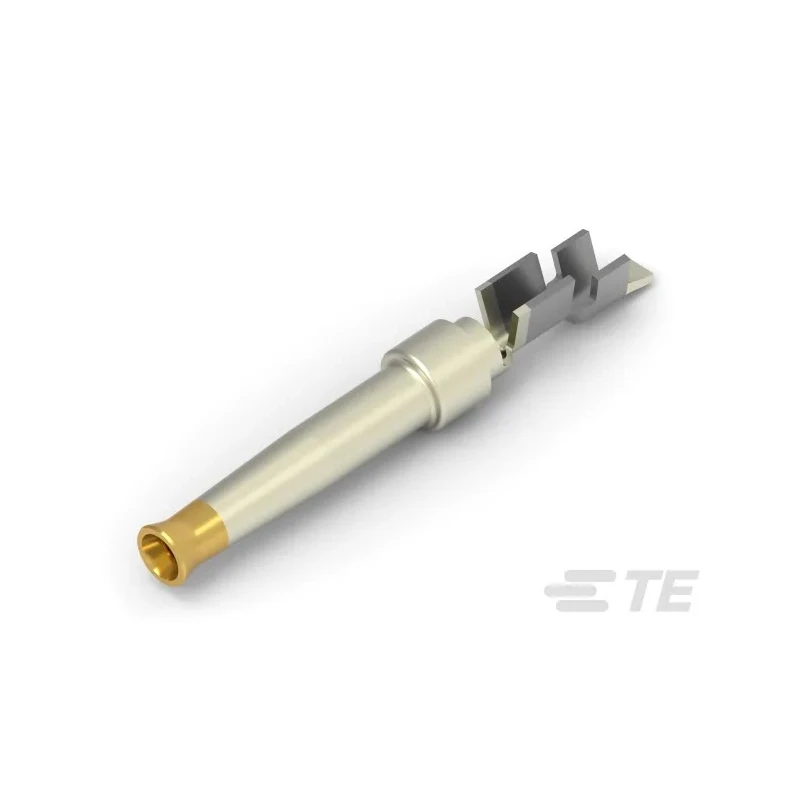

TE Connectivity AMPLIMITE HD-20 Series Female Crimp D-Sub Connector Contact 20 AWG Gold over Nickel 5-166052-1
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | TE Connectivity |
| Current | 1.2A |
| Length | 14.4mm |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Termination Type | Crimp |
| Contact Type | Crimp |
| Contact Plating | Gold over Nickel |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.56mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 20AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Constructed with phosphor bronze contact material for reliable conductivity.
- Rated for a maximum current of 1.2A ensuring low signal loss.
- Features gold over nickel plating to enhance corrosion resistance and durability.
- Crimp termination type enables secure and efficient wire connection.
- Compact length of 14.4mm suitable for HD-20 series cable mount D-Sub connectors.
- Compatible with wire sizes ranging from 28 AWG to 20 AWG (0.08 mm² to 0.56 mm²).
- Manufactured with high precision to maintain a maximum contact resistance of 15 mΩ.
- Ideal for electronics, computing, and industrial applications requiring robust connector contacts.
Product Description
TE Connectivity 5-166052-1 AMPLIMITE HD-20 Series female crimp D-Sub connector contact is engineered for dependable signal transmission in electronic and industrial environments. It accommodates wire sizes from 28 AWG to 20 AWG and ensures excellent electrical performance with a 1.2A current rating.
The contact material is phosphor bronze, coated with a gold over nickel plating to resist corrosion and enhance contact longevity. Its crimp termination type ensures secure, low-resistance connections suitable for HD-20 series cable mount D-Sub connectors. The compact 14.4 mm length facilitates efficient assembly in dense connector arrays.
These contacts are widely used in electronic components, power connectors, and data transmission applications in sectors like aerospace, manufacturing, and computing hardware. Phosphor bronze contact material for durability and conductivity.
Gold over nickel plating for enhanced corrosion resistance. Rated current capacity of 1.2A supports stable signal transfer. Maximum contact resistance of 15 mΩ ensures minimal signal loss. Crimp termination type offers fast and secure wire attachment.
Compatible with wire sizes from 28 AWG to 20 AWG (0.08 - 0.56 mm²). Length of 14.4 mm fits standard HD-20 series connectors. Manufactured in Poland adhering to reliable quality standards.
This TE Connectivity product is an essential component for engineers and technicians designing or maintaining D-Sub connector assemblies. Its reliable performance in demanding environments underpins industrial, laboratory, electronics manufacturing, and telecommunications applications.
Explore EnvMart's broad range of high-quality electronic components like this AMPLIMITE HD-20 Series D-Sub Connector Contact to find optimal solutions for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this connector contact is 1.2A, ensuring stable signal transfer.
This model is compatible with wire sizes ranging from 28 AWG to 20 AWG, or 0.08 mm² to 0.56 mm².
The length of this connector contact is 14.4 mm, making it suitable for HD-20 series connectors.
The contact material is phosphor bronze, which provides reliable conductivity.
This connector contact features a crimp termination type, allowing for secure and efficient wire connections.
It has gold over nickel plating, which enhances corrosion resistance and durability.
The maximum contact resistance is 15 mΩ, which helps to minimize signal loss.
This product is manufactured in Poland, adhering to reliable quality standards.
It is suitable for use in electronics, computing, and industrial applications requiring robust connector contacts.
This connector contact belongs to the AMPLIMITE HD-20 series, designed for specific connector configurations.
The gender of this connector contact is female, designed to fit into corresponding male connectors.
The contact size of this connector is 20, which is standard for the specified series.
