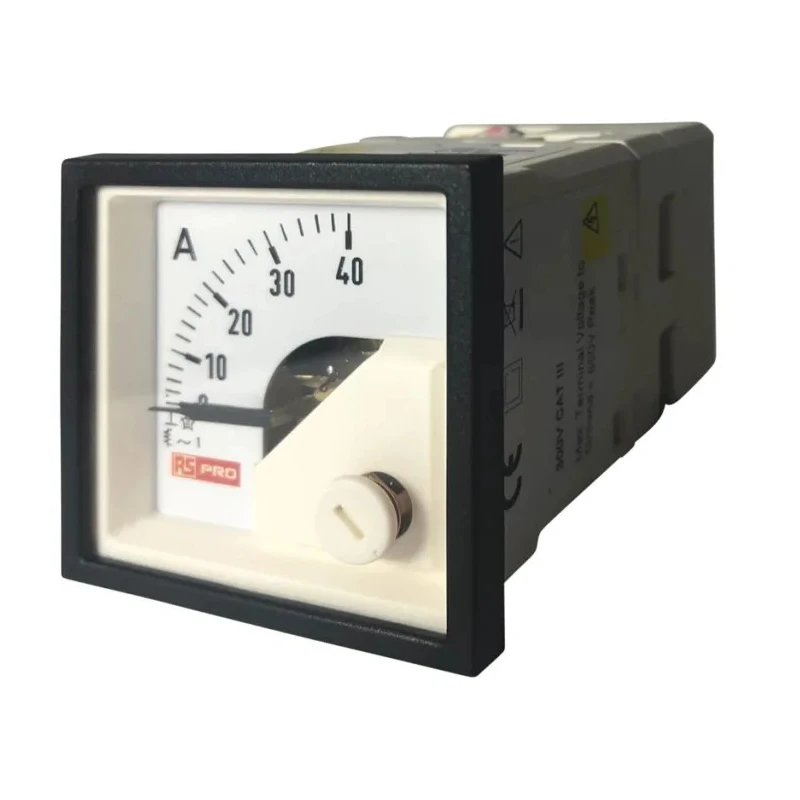

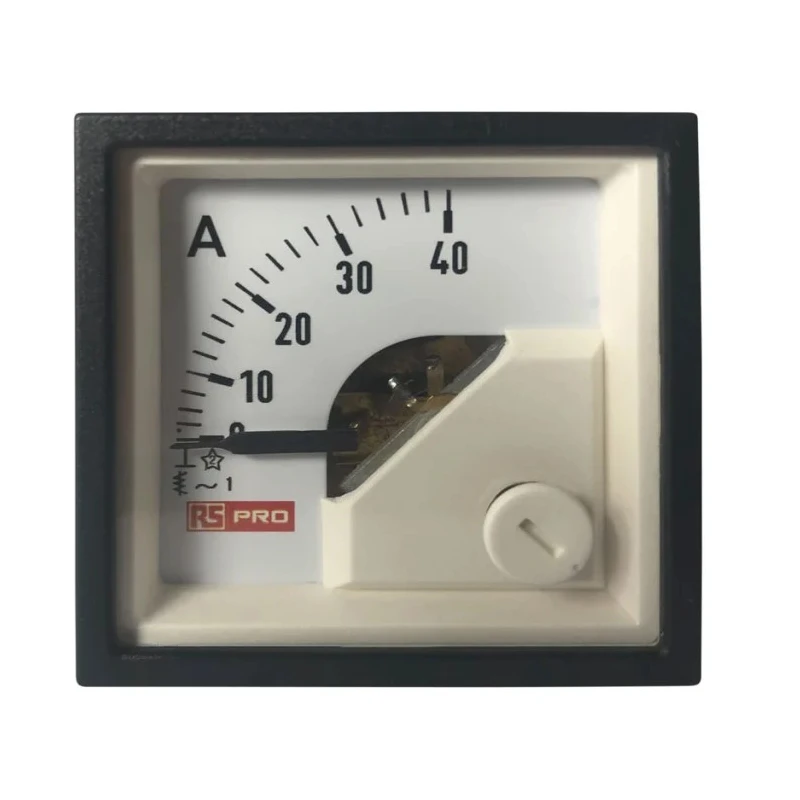

RS PRO Analogue Panel Ammeter 40 A AC, 1% Accuracy, Moving Iron, 45 mm x 45 mm RS-PRO-186-2416

RS PRO 186-2416 Analogue Panel Ammeter is designed for precise measurement of alternating current (AC) up to 40 amperes. Featuring a moving iron movement, the meter provides accurate RMS current readings largely unaffected by waveform distortions. The instrument is housed in a robust 45 mm by 45 mm moulded polycarbonate casing that is ideal for mounting in control and switchgear panels of industrial machinery and consoles.

Its high accuracy of 1% ensures dependable monitoring for electrical, automation, and process control applications in industrial and HVAC environments. The pointer is a knife-edge type with 0° to 90° deflection, facilitating easy and precise ratiometric reading directly on the calibrated scale.

The ammeter can measure nominal AC currents from 100 mA to 100 A with direct connection capability and provides overload protection of up to two times the nominal current continuously. It also supports various overload scale factors (X2, X3, X5, X6) allowing measurement of motor inrush current, critical for motor control diagnostics.

The device is designed for operation in ambient temperatures ranging between -10°C and 65°C and withstands shocks up to 15g for short pulse duration, ensuring reliable industrial use. It is rated IP52 for protection against dust and water ingress, suitable for harsh factory environments.

Compliant with multiple international standards including IEC 51/DIN EN 60051, VDE 0100-410, UL 94 V-0, and ISO 20653, this ammeter meets essential safety and electromagnetic compatibility requirements.

Provides precise measurement of AC current up to 40 A. Features a compact 45 mm x 45 mm moulded polycarbonate square case for panel mounting. Utilizes a moving iron movement enabling true RMS current indication largely independent of waveform.

Accuracy of 1% ensures reliable readings in industrial applications. Designed to operate within temperature ranges of -10°C to 65°C. Equipped with a knife-edge type pointer with 0° to 90° deflection angle. Supports overload scales of X2, X3, X5, or X6 to measure motor inrush currents.

Shock resistant up to 15g for 11 ms pulse duration. Rated for relative humidity below 75% (non-condensing). IP52 rated and complies with multiple IEC, DIN, UL, and VDE standards.

This RS PRO analogue panel ammeter is ideal for industrial automation, electrical panel monitoring, HVAC systems, and manufacturing process control applications requiring accurate and reliable AC current measurement.
