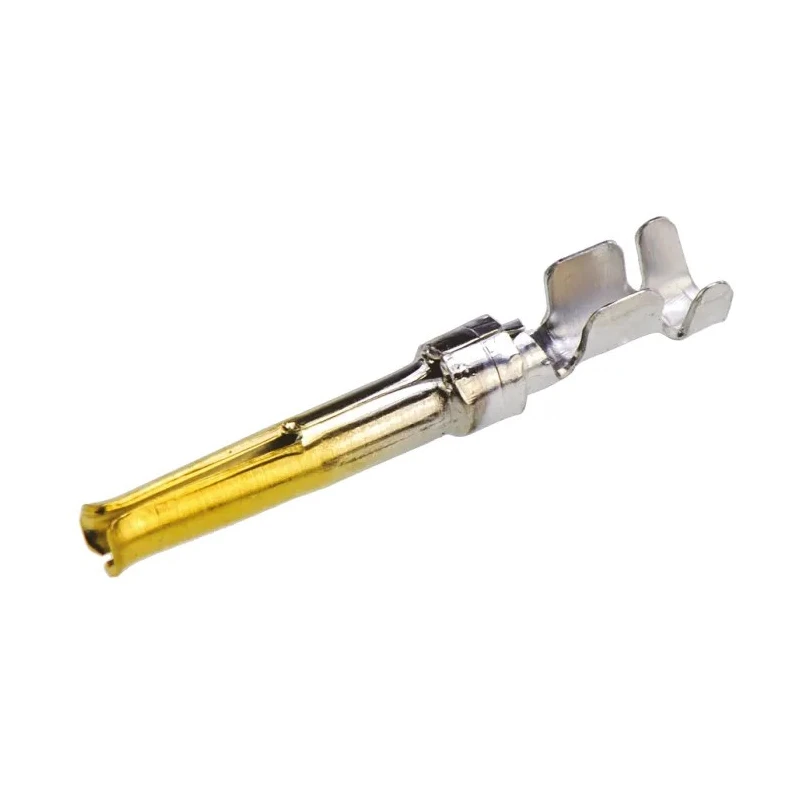

TE Connectivity AMPLIMITE HD-20 Series Size 20 Female Crimp D-Sub Connector Contact Gold Socket 20 AWG 166291-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 1.2A |
| Length | 14.6mm |
| Model | 166291-1 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPLIMITE HD-20 |
| Termination Type | Crimp |
| Contact Type | Socket |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.56mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Contact Size | 20 |
| Maximum Contact Resistance | 15mΩ |
Key Features
- Part of the AMPLIMITE HD-20 series for durable cable mount D-sub connectors.
- Constructed with phosphor bronze contact material for enhanced conductivity.
- Gold plated socket contact ensures low contact resistance and corrosion protection.
- Supports wire sizes from 24 AWG to 20 AWG, suitable for 0.2mm² to 0.56mm² wires.
- Rated for a maximum current of 1.2A with maximum contact resistance of 15mΩ.
- Crimp termination type facilitates secure and efficient wire connections.
- Contact size is 20 with a length of 14.6mm optimized for HD-20 connectors.
- Ideal for electronic, industrial, and computing applications requiring reliable D-sub connectivity.
Product Description
TE Connectivity 166291-1 female crimp D-Sub Connector Contact from the AMPLIMITE HD-20 series features high-quality phosphor bronze construction with a 0.76μm gold plating on the socket contact. This design ensures optimal electrical performance and a low maximum contact resistance of 15mΩ, making it suitable for sensitive electronic applications.
The contact supports wire sizes ranging from 24 AWG to 20 AWG (0.2mm² to 0.56mm²) with a crimp termination type, enabling secure and stable connections within cable mount D-Sub connectors. It operates at currents up to 1.2A, making it ideal for varied electrical signal and power connectivity needs.
Measuring 14.6mm in length with a size 20 contact, this socket contact is engineered to fit seamlessly into AMPLIMITE HD-20 connectors, supporting use in electronic components, power and connectors systems, and computing hardware architectures.
This connector contact is extensively used in industrial engineering, telecommunications, computing, and laboratory environments requiring robust, stable, and corrosion-resistant connector contacts.
Part of the AMPLIMITE HD-20 series for cable mount D-Sub connectors. Phosphor bronze material with gold plating enhances conductivity and durability. Supports wire sizes from 0.2mm² to 0.56mm² (24 AWG to 20 AWG). Current rating up to 1.2A with maximum contact resistance of 15mΩ.
Length of 14.6mm with crimp termination type for secure wire fastening. Designed for industrial, electronic, computing, and laboratory use cases. Explore a wide range of certified connectors and components available in EnvMart's Electronics Components category for dependable industrial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this connector contact is 1.2A.
It supports wire sizes ranging from 24 AWG to 20 AWG, which corresponds to 0.2mm² to 0.56mm².
The contact material is phosphor bronze, which enhances conductivity.
This model features a crimp termination type for secure wire connections.
The contact length is 14.6mm.
The maximum contact resistance is 15mΩ.
It is suitable for electronic, industrial, and computing applications requiring reliable D-sub connectivity.
This connector contact is female.
This contact is part of the AMPLIMITE HD-20 series.
The country of origin for this connector contact is India.
This model is a socket contact.
The contact is gold plated, which provides low contact resistance and corrosion protection.
