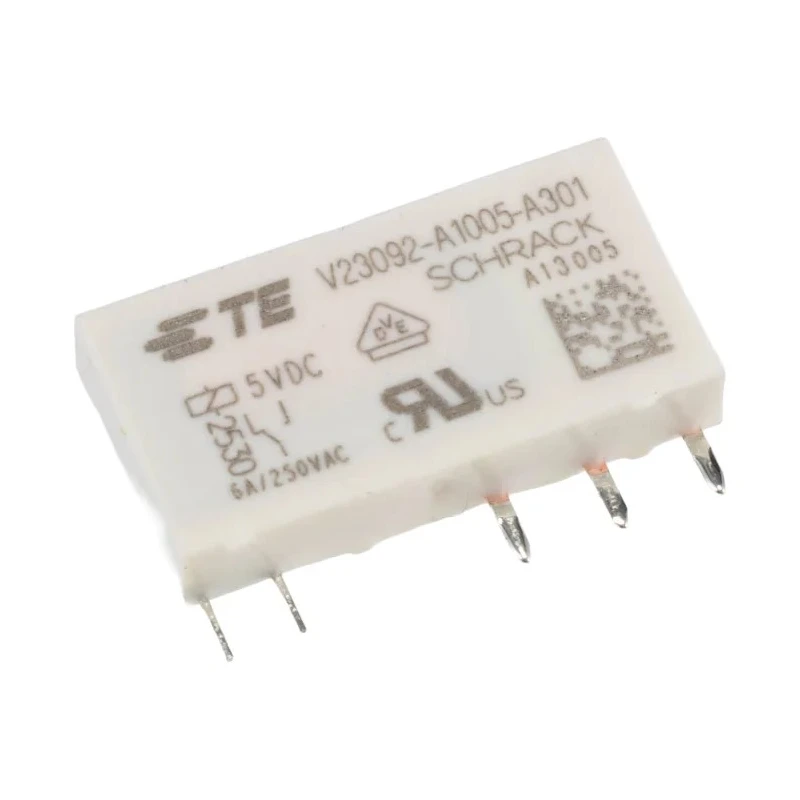

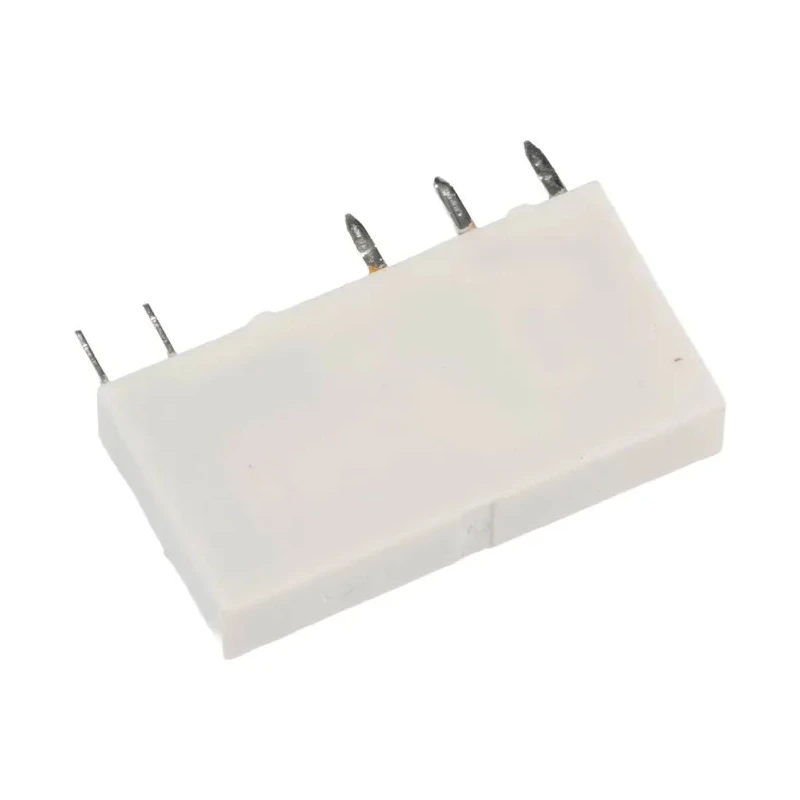

TE Connectivity PCB Power Relay 5V dc Coil 6A Switching Current SPDT V23092-A1005-A301

TE Connectivity V23092-A1005-A301 PCB Power Relay features a 5V dc coil voltage and supports a switching current of 6A in an SPDT contact configuration. This relay belongs to the SNR series known for slim, space-saving designs with a thickness of just 5mm, making it ideal for high density PCB integration in industrial and electronic applications.

The relay offers high coil sensitivity with a coil power of 170mW, which helps reduce power consumption and heat generation. It is designed to operate reliably in harsh conditions with an operating temperature range of -40°C to +85°C, making it suitable for industrial, automation, and control system environments.

The isolation voltage between coil and contact is rated at 4000Vac, ensuring safety and robustness in electrical insulation. Contact materials are made of silver alloy, providing excellent electrical conductivity and long service life. The relay supports switching AC voltages up to 400V, with a switching power of 1.5kVA, suitable for a wide range of power relay applications.

Installation is straightforward with PCB mount type and solder terminal connections, ensuring secure and reliable electrical integration. This product complies with stringent international standards, including UL 508, CSA, VDE certification, RoHS, REACH directives, and more, ensuring safety, environmental compliance, and quality.

This power relay is optimized for use in industrial automation, electrical control cabinets, HVAC systems, manufacturing machinery, and other demanding electrical equipment requiring reliable switching control.

High coil sensitivity at 170mW reduces power consumption. Compact slim design with only 5mm thickness for space-efficient PCB usage. Operating temperature range from -40 to +85°C suitable for various environments. Isolation voltage of 4000Vac provides reliable coil to contact insulation.

Silver alloy contacts ensure durable conductivity and resistance to wear. Compatible with AC switching voltages up to 400V for versatile applications. PCB mount type with solder terminals facilitates secure electrical connections.

Complies with multiple international standards including UL, CSA, VDE, RoHS, and REACH. Explore the extensive range of Power Relays and components available at EnvMart to enhance your industrial, electrical, and automation projects.
